- Page 1 OPERATING MANUAL Electronic compact scales Compact scale – GW400 series GW400-210408-Rev004-UM-en...
-
Page 2: Table Of Contents
1. Table of Contents Table of Contents ......................2 About this operating manual .................... 3 General information ........................3 Storage ............................3 Target group ..........................3 Safety instructions ......................3 Intended use ........................4 Scope of delivery ......................5 Getting started with the scale ..................5 Operating and display elements .................. -
Page 3: About This Operating Manual
2. About this operating manual This symbol means: "Consult operating instructions". To achieve accurate results, read the instructions for use carefully before use and follow all instructions provided therein. Keep the instructions for use for future reference. General information - This operating manual describes the safe operation as well as the operation, care, and maintenance of the scale. -
Page 4: Intended Use
In such cases, please contact authorised customer support. 4. Intended use Your ADE scale is a quality product and was manufactured for use as a non-automatic scale. The scale is intended for determining the weight of goods and for a variety of other weighing procedures and applications in the commercial sphere. -
Page 5: Scope Of Delivery
5. Scope of delivery Check the delivery for completeness as soon as you receive the scale. Carefully unpack the scale and accessories and remove all packaging materials. The following items are included in the delivery: - Compact scale - Power supply - Operating manual - Declaration of conformity - Optional: 6 V 4 Ah rechargeable battery (inserted in the scale) -
Page 6: Operating And Display Elements

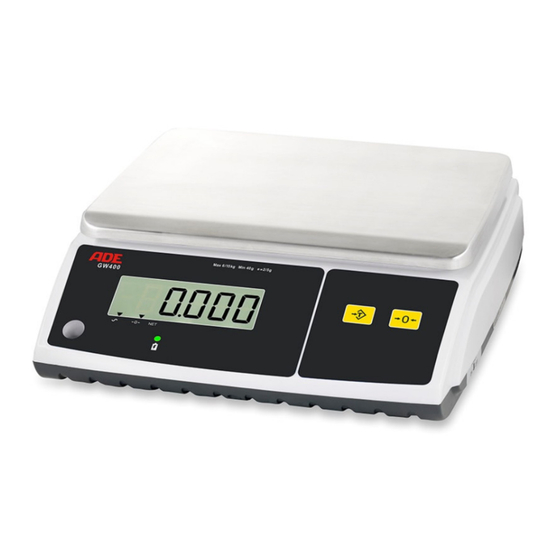

For precise measurement results, the goods to be weighed must be placed in the centre of the weighing platform. The goods to be weighed should not protrude beyond the weighing platform. 7. Operating and display elements Overview Weighing platform Support feet Power supply Main display connector... -
Page 7: Display Symbols
Display symbols Symbol Meaning Display for stable weight measurement. >0< Display for zeroing. Display for activated tare function. Use arrows () to toggle through the various function displays. Battery status indicator LED display Mains operation Green Battery is charged. To ensure that the battery is fully charged, do not disconnect the scale from the mains for at least one hour. -
Page 8: Zeroing
Zeroing Press the key when the scale shows a weight, even though the weighing surface is completely empty. The display of the scale shows 0.00 again. The zero position is indicated by the symbol >0< on the display. Taring With this function, the user can weigh objects together with other items (such as containers, film or paper towels), without the weight of those items affecting the weighing result. -
Page 9: Changing Automatic Switch-Off Time
Changing automatic switch-off time In order to change the automatic switch-off time, it is necessary to open a secure menu. Open the menu only when you really have to. Accidental or intentional changes to the parameters can have a significant impact on the functionality of the scale. -
Page 10: Replacing/Inserting The Battery
Replacing/inserting the battery If the usage time is drastically reduced when the battery is fully charged, it must be replaced. In this case, please contact your local dealer or service partner. Make sure you remove the battery when the scale is permanently operated from the mains supply. -
Page 11: Storage And Transport Conditions
Warranty ADE will repair or replace this product if evidence is provided that it has failed within 1 year from the date of sale (proof of purchase is required) due to lack of workmanship or defective material. -
Page 12: Recalibration
Recalibration According to the national regulations of the legislature, only authorised companies or authorised personnel can perform recalibration. On the CE mark, you can find the year of initial calibration next to the notified body (0122). Recalibration must be carried out: - when one or more security marks were damaged, - after the scale has been repaired, - after expiry of the period set by the national regulations for recalibration. -
Page 13: Technical Data
11. Technical data Model: GW400-6 GW400-15 GW400-30 Maximum load: 6 kg 15 kg 30 kg Digit display: 1 g<3 kg>2 g 2 g<6 kg>5 g 5 g<15 kg>10 g Minimum load: 20 g 40 g 100 g Weighing surface: 265 x 205 mm stainless steel Dimensions: 285 x 310 x 115 mm Net weight:... -
Page 14: Declaration Of Conformity
- RoHS Directive 2011/65/EC in their respectively applicable versions. This declaration will lose its validity if any modification is made to the scale without our consent. Hamburg, April 2021 ADE Germany GmbH New Höltigbaum 15 22143 Hamburg Manufacturer: ADE Germany GmbH New Höltigbaum 15... - Page 15 GW400-210408-Rev004-UM-en...
- Page 16 Distributor: GW400-210408-Rev004-UM-en...
