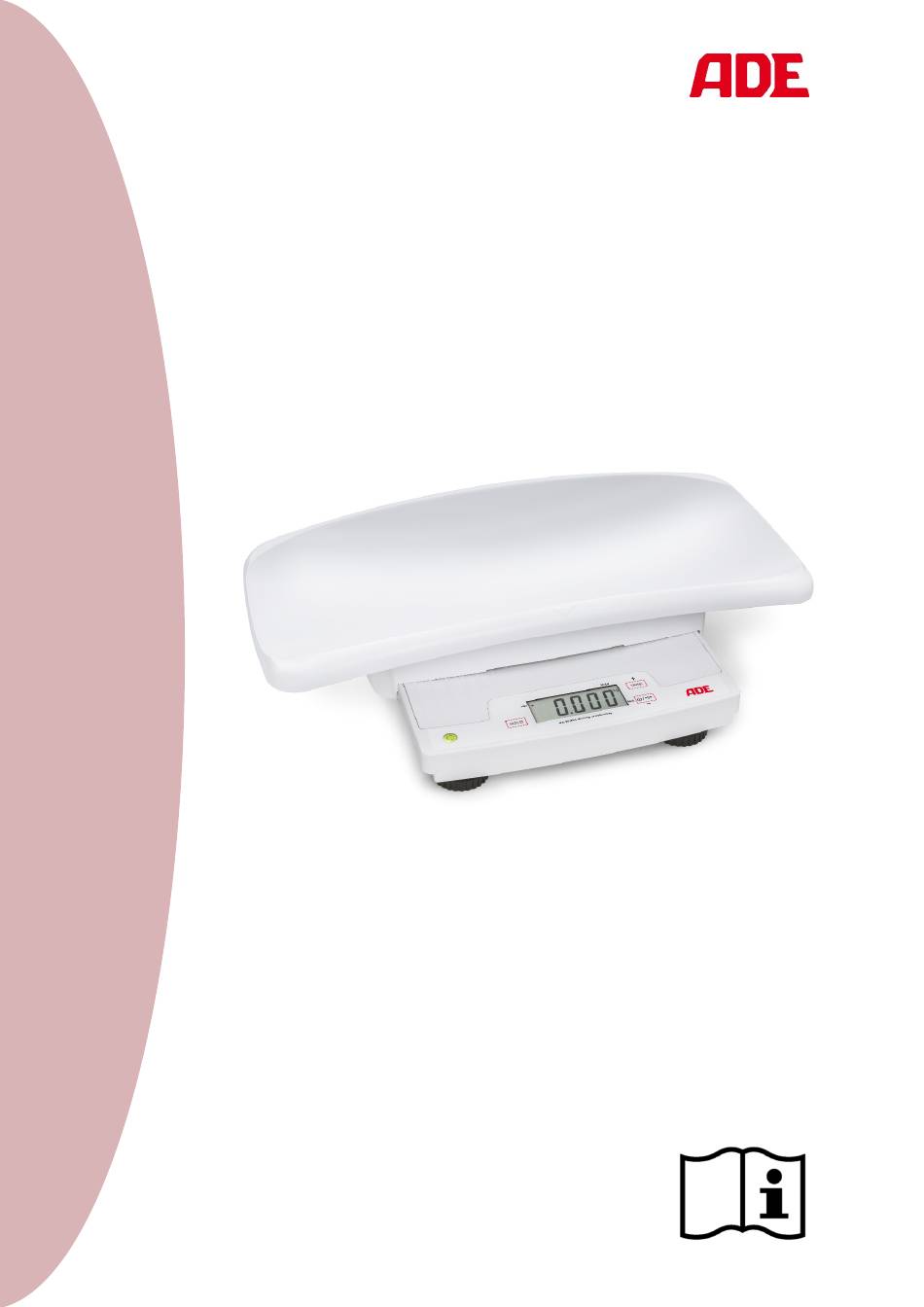

- Page 1 Instructions for Use Class III approved scales Electronic baby scales M101000-01 M101000-01-210323-Rev005-UM-e...
-
Page 2: Table Of Contents
Care, servicing and recalibration ......................8 Cleaning .............................. 8 Error Messages ........................... 8 Recalibration ............................8 Disposal ............................... 9 Storage and transport ......................... 9 Warranty .............................. 9 Symbol description ..........................10 Technical data ............................11 Declaration of Conformity ........................12 Dealer: ..............................15 M101000-01-210323-Rev005-UM-e... -
Page 3: General Information
Keep the instructions for use for future reference. Your ADE weighing scale is a high-quality product which has been manufactured for use in hospitals by doctors, medical specialists and paediatricians. It complies with EU regulations for non-automatic weighing instruments (Class III) and the directive for medical instruments (Class I). -
Page 4: Safety Instructions
Never touch baby and mains adapter simultaneous. Only the power adapters authorised by the manufacturer ADE may be used. Otherwise, there is a risk that other electrical devices will be affected. -
Page 5: Controls And Display
TARE to tare (zero) the scale off any additional weight HOLD to activate the hold function Display symbols HOLD ▲ Indication that HOLD mode has been selected Indication that the complete NET weight has been reached ▶ →0← Indication that a stable value has been reached ◀ M101000-01-210323-Rev005-UM-e... -
Page 6: Setup And Operation Of The Scale
The scale can be operated either by 6 x AA type alkaline batteries (not included in scope of delivery) or via the supplied mains adapter. Low battery indication (Low battery indication) will display on the scales LCD display when the battery power is insufficient to power the scale. When is displayed, please replace the 6 alkaline batteries M101000-01-210323-Rev005-UM-e... -
Page 7: Connecting The Mains Power Supply
Connecting the mains power supply Levelling feet Connection socket Only use the AC adapter supplied by ADE for this unit. Make sure that the scale is switched off before inserting the batteries or plugging in the power adapter For battery operation, first insert the batteries carefully, making sure not to reverse the polarity (+/-). -
Page 8: Weighing Operation
TARE key once and the weight of the paper towels will be zeroed off. After weighing, remove the paper towels and press Tare again to cancel the tare value and return to Zero. M101000-01-210323-Rev005-UM-e... -
Page 9: Care, Servicing And Recalibration
The notified body (0122) and the year of initial calibration can be found on the CE symbol. The scale must be recalibrated if the calibration mark has been damaged after a calibrated scale has been repaired or after expiry of the period for recalibration stipulated by national statutory regulations. M101000-01-210323-Rev005-UM-e... -
Page 10: Disposal
The optional carrying bag MZ10031 can be used for easier transport. Warranty ADE will repair or replace this product within 2 years of the date of purchase (upon presentation of receipt) if it is proven that the product failed due to defective materials or poor workmanship. All movable parts, such as batteries, cables, power adapters, batteries, etc., are excluded from the warranty. -
Page 11: Symbol Description
Marking according NAWI Directive 2014/31/EC with year of calibration 0122 Number of notified body registered according calibration requirements 0044 Number of notified body registered as medical device Class of calibration Type B / BF applied part Alternating current AC / Direct current DC / Warning M101000-01-210323-Rev005-UM-e... -
Page 12: Technical Data
Technical data Model M101000-01 Capacity: 20 kg Graduation: 5 g < 10 kg > 10 g Dimensions base: 340 x 330 x 50 mm Baby tray: 560 x 280 x 95 mm Net weight: approx. 4,2 kg Working temperature: +10 to +40 Grad Celsius... -
Page 13: Declaration Of Conformity
RoHS Directive 2011/65/EC in the currently valid versions. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, march 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer: ADE Germany GmbH... - Page 14 M101000-01-210323-Rev005-UM-e...
- Page 15 M101000-01-210323-Rev005-UM-e...
-
Page 16: Dealer
Dealer: M101000-01-210323-Rev005-UM-e...
