QUICK START GUIDE
iWAND
OPERATION GUIDE
QSG-OG-8315-A1
05/2013
910-0006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iWAND and is the answer not in the manual?

Questions and answers

Related Manuals for Sonardyne iWAND

Summary of Contents for Sonardyne iWAND

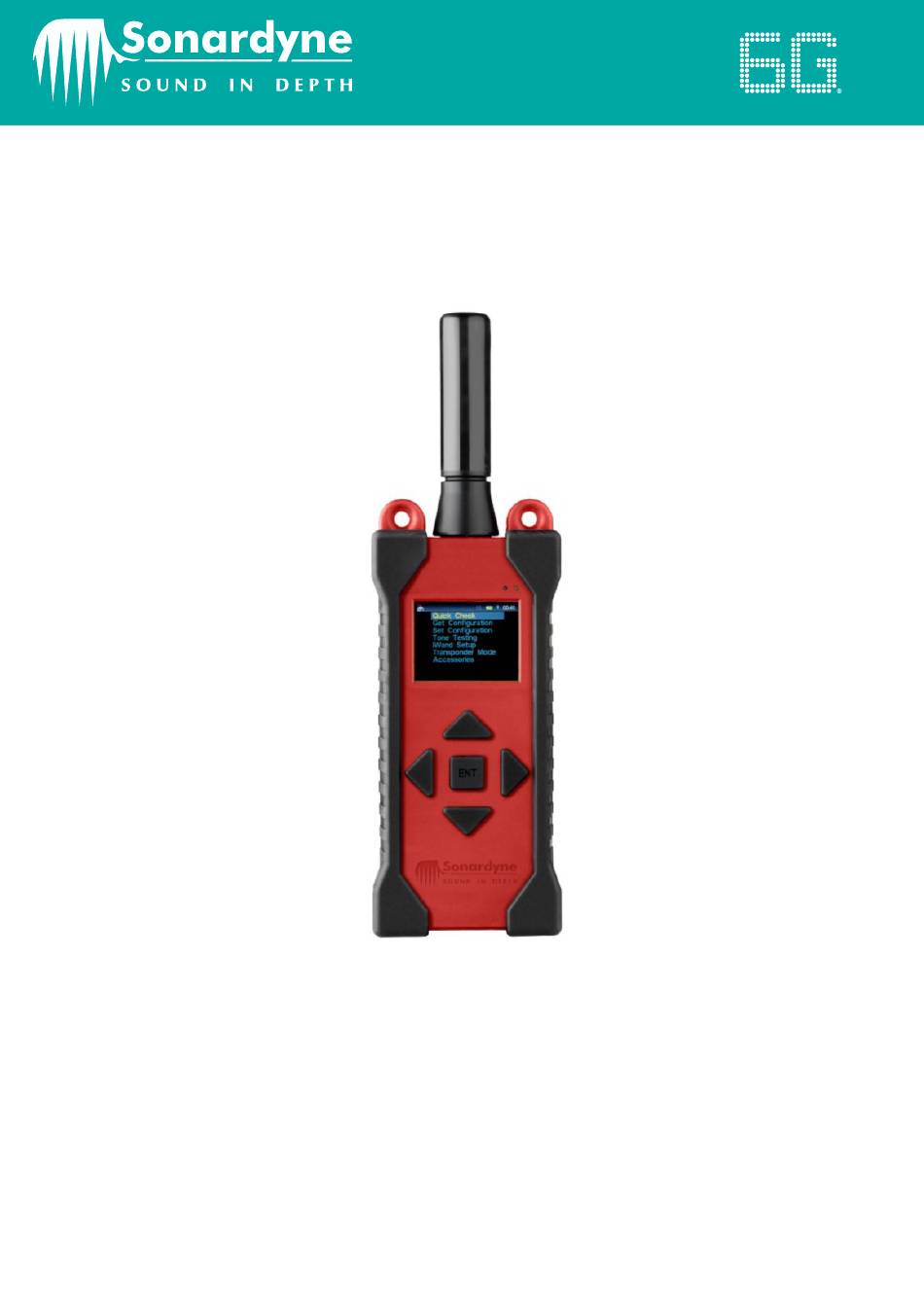

  • Page 1 QUICK START GUIDE iWAND OPERATION GUIDE QSG-OG-8315-A1 05/2013 910-0006...
  • Page 2 The iWAND contains no user serviceable parts. Under no circumstances should the plastic housing be opened - any repairs require the unit to be returned to Sonardyne.
  • Page 3 Using the power adaptor with the correct universal adaptor and the USB Lead , connect the iWAND to a mains power supply and fully charge. This will be indicated by the green charging LED...
  • Page 4 This will be indicated by the green charging LED. SETTING THE iWAND TIME Before using the iWAND it will be necessary to set the UTC real time on the LCD display. Turn on the iWAND by pressing the ENT button in the middle of the keypad.
  • Page 5 ‘Pre-requisites for Operation’ in Section 5 of the iWAND UM-8315 manual. The iWAND will begin to interrogate the instrument for it’s configuration. If the the iWAND detects a Release Mechanism is fitted to the instrument the Get Configuration sequence will ask if a Release Test is required.
  • Page 6 If the iWAND detects sensors are fitted to the instrument the Get Configuration sequence will ask if a Sensor Test is required. 14 If Yes is selected the iWAND will display the current measurements of each sensor available in the instrument.
  • Page 7 Bluetooth drivers. Connecting the iWAND using Bluetooth To be able to connect to the iWAND using Bluetooth, make sure the Bluetooth on the PC is enabled. Make sure Bluetooth on the iWAND is enabled. Using the keys scroll to iWAND Setup >...
  • Page 8 In the Select Active Port window, the software will seek a Bluetooth connection. When the iWAND Bluetooth has been detected it will appear at the top of the list. Confirm the UID of the iWAND listed is correct. Click OK to connect to the iWAND.
  • Page 9 STEP 8 OPERATING THE EQUIPMENT OPERATING THE iWAND 6G CONFIGURATOR SOFTWARE To view an instrument, select it either from the History list or the Asset List. Alternatively, enter the UID of the instrument, if known, in the find UID drop down box.
  • Page 10 Set HPR button will appear. If the Set HPR button is pressed the HPR channel screen will appear. Select the required HPR channel then click OK. NOTE The HPR should only be enabled if integrated with a 3rd party system. To obtain the performance benefits of Sonardyne 6G equipment, HPR should be avoided.
  • Page 11 STEP 10 OPERATING THE EQUIPMENT OPERATING THE iWAND 6G CONFIGURATOR SOFTWARE 10 In the HPR Support section, as soon as the Enable HPR channel is selected the Permanently On option will default to on. 11 Select the required Pulse Position Mode from the drop down menu.
  • Page 12 15 Notification of the address change and the new address will now appear at the top of the iWAND 6G Configurator page. 16 The iWAND 6G Configurator software uses a traffic light system to indicate the status of the equipment.
  • Page 13 Disconnect the iWAND from the PC and move to the location of the 6G equipment to be configured. Configurations for multiple instruments can be held by the iWAND at the same time.
  • Page 14 To view the full configuration of an instrument a report can be generated. NOTE The Generate Report button is only available when the traffic light next to the instrument UID is green. To generate a report, press the Generate Report button at the top of the iWAND 6G Configurator page.
  • Page 15 Make sure the housing is clean and dry before returning to the case. Avoid leaving the iWAND in a deeply discharged, or fully charged state for long periods of time (40 - 60% charge for optimum battery life). Turn off the iWAND for storage and shipping by selecting:...
  • Page 16 T. +44 (0) 1252 872288 T. +55 22 2123 4950 T. +65 6542 1911 F. +44 (0) 1252 876100 F. +55 22 2123 4951 F. +65 6542 6937 sales@sonardyne.com brasil.sales@sonardyne.com asia.sales@sonardyne.com Houston, USA Aberdeen, UK 24/7 Emergency Hotline T. +1 281 890 2120 T.
