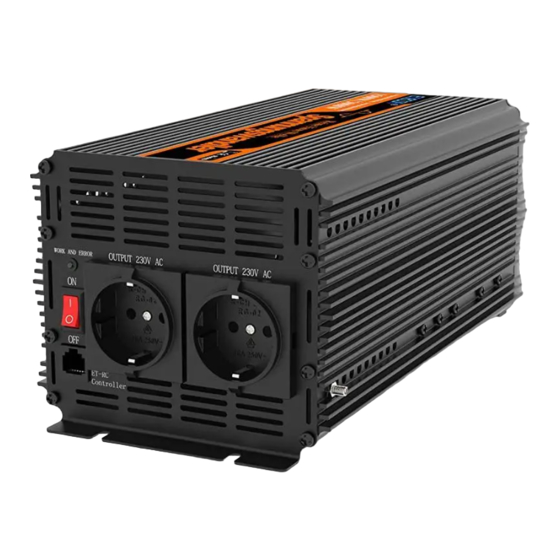

- Page 1 USER MANUAL Model: DPP10 DPP15 DPP20 DPP25 DPP30 DPP35 DPP50 Language: English COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 1 / 15...
-
Page 2: Table Of Contents
14.How to connect two or more batteries?..........................12 15.Wiring diagram...................................13 16.Protection features................................13 17.Service environment:................................13 18.Problem Causes.................................. 13 10.Improper use of power inverter............................14 19.Disposal....................................15 20.Warranty..................................... 15 21.Disclaimer of Warranties..............................15 22.Compensation..................................15 COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 2 / 15... -
Page 3: What Is The Power Inverter
Check that the package contains the deliveries as listed below: 1) Power Inverter ×1 2) One pair of screw cap (Red and Black) 3) One pair of DC input terminal ring (For backup) 4) User manual ×1 5) Ground Cable×1 (Partial model) COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 3 / 15... -
Page 4: Installation Environment Requirements
Installation requirements: Install it vertically or tilt it back up to 15 ° to allow the fan to cool the machine. Figure 3-1Proper installation Figure 3-2Installation Space (Unit: mm) COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 4 / 15... -
Page 5: Installation Space Requirements
When using the power inverter at home, please connect it to the home ground wire system. If there is no ground wire system at home, please connect it to the negative terminal of the battery. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 5 / 15... -
Page 6: About The Remote Controller
Therefore, when any one controls the inverter, the other switch must keep the "OFF" state. According to different models, we have two models of remote control (ED-RC, ET-RC). However, it is not possible to replace each other. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 6 / 15... - Page 7 ET-RC remote cable is 4M long standard RJ45 network cable,In order not to affect the display signal transmission, it is recommended to use network lines within 5M. Because there are 2 USB interfaces on the remote control, you cannot use a longer network cable. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 7 / 15...
-
Page 8: Technical Data（Pure Sine Wave
Dependent of the devices you want to operate, you must pay attention on the wattage of each device and calculate the total watts. We recommend you to buy an inverter higher than the power you think you need – good practice is around 30% - 50% more. For example: COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 8 / 15... -
Page 9: How To Choose The Proper Cable
0,5 -1m Cable 0,5-1m Cable 35*2mm² 16*2mm² 1 – 1.5m Cable 45mm² 1 -2m Cable 75mm² 1 -1.5m Cable 50mm² 2 – 4m Cable 70mm² >2m Not recommended 2 – 4m Cable 80mm² COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 9 / 15... -
Page 10: Types Of Batteries
0.8. If the battery has been used for more than one year, it needs to multiply the usage time by 0.5. For example, a 12V 100A battery has been used for half a year. If a 1000W load is used, it can be used continuously for 1h*0.8=48 min. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 10 / 15... -
Page 11: Inverter Appearance Description
The auxiliary battery should be connected to the alternator through an isolator module to prevent the inverter from discharging the engine start battery when the engine is off. 13. INVERTER APPEARANCE DESCRIPTION COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 11 / 15... -
Page 12: How To Connect Two Or More Batteries
Single socket max output 3500W 3100W 2400W 3100W power 14. HOW TO CONNECT TWO OR MORE BATTERIES? Connected in parallel = same voltage doubled AH Connected in series = double voltage same AH COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 12 / 15... -
Page 13: Wiring Diagram
Ensure enough and full battery power. The alarm sounds 1 (2) time Poor battery. Connection Use the original cable. per time, after 2 seconds, cable is too thin or too same beeps again. (Without long. any load) COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 13 / 15... -
Page 14: Improperuse Of Power Inverter
Failure to dry after water entry will cause the electronic components to burn. When this occurs, a crack sound will be heard and smoke will be seen. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 14 / 15... -
Page 15: Disposal
Manufacturer:Chang Tian Electrical Technology Co., Ltd Address: HaiXiaDaSha 502WushigangGongYeQu, DongchengDistrict,DongGuanCity,GuangDong Province,52300,China. Email: info@edecoa.com Designed in Germany, Made in China visit our official website for more information COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-EU-V2.7------English 15 / 15...
