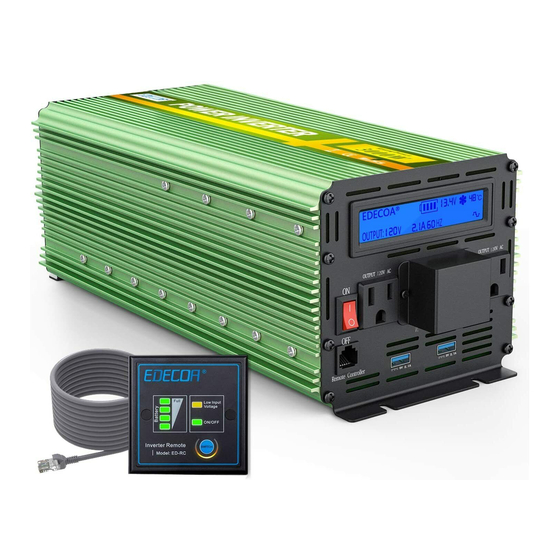

- Page 1 USER MANUAL Model: DPM10 DPM12 DPM15 DPM20 DPM25 DPM30 DPM35 Language: English COPYRIGHT©EDECOA, ALL RIGHT RESERVED, PI-USA-Rev 2.6 1 / 17...
-
Page 2: Table Of Contents
18. Do i need modifed wave or pure sine wave inverter?..................15 19. What is an over current protection device and why do you need one..............15 20. Special use................................15 21. Improper use of power inverter...........................16 21. Disposal................................17 22. Warranty................................17 23. Compensation..............................17 COPYRIGHT©EDECOA, ALL RIGHT RESERVED, PI-USA-Rev 2.6 2 / 17... -
Page 3: What Is The Power Inverter
④ AC Output : 3P Terminals ⑤ Remote Control Port ⑥ Dual USB Charging ⑦ GND Terminal ⑧ Battery input - ⑨ Battery input + ⑩ Fans ⑪ LED Status Display COPYRIGHT©EDECOA, ALL RIGHT RESERVED, PI-USA-Rev 2.6 3 / 17... -
Page 4: Intended Use
In a residential area, do not install the inverter on a plasterboard wall or similar sound-poor wall to avoid interference with the noise in the work area. Installation requirements: Install it vertically or tilt it back up to 15 ° to allow the fan to cool the machine. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 4 / 17... -
Page 5: Opening The Device
3. The load power should not exceed the rated power of the inverter. The two DC-input connectors of the inverter are color-coded: The red terminal for the positive pole (+) The black terminal for the negative pole (-). Inverter DC input installation method: COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 5 / 17... -
Page 6: About The Remote Controller
Therefore, when any one controls the inverter, the other switch must keep the "OFF" state. According to different models, we have two models of remote control (ED-RC, ET-RC). However, it is not possible to replace each other. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 6 / 17... - Page 7 5. After connecting the remote controller, the status light sometimes work, sometimes not, the inverter maybe turn off automatically. Note: If the remote controller can’t work properly, please try to replace the remote cable first. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 7 / 17...
-
Page 8: Service Environment
3. Fluorescent lamp (with Ballast), NiMH battery charger, it is not recommended to use a modified sine wave inverter for long time, this devices will bring more noise with modified sine wave inverter. If using for long time, this will also shorten the inverter’s life. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 8 / 17... -
Page 9: Technical Data
Dependent of the devices you want to operate, you must pay attention in the wattage of each device and calculate the total watts. We recommend you to buy an inverter higher than the power you think you need – good practice is around 30% - 50% more. For example: COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 9 / 17... -
Page 10: How To Choose The Proper Cable
1 – 3ft Cable 2/0AWG 3.5 – 5ft Cable 0AWG 3.5 – 5ft Cable 0AWG 3.5 – 5ft Cable 2*1AWG 5.5 – 13ft Cable 2/0AWG 5.5 – 13ft Cable 2*1AWG >5ft Not recommended COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 10 / 17... -
Page 11: Batteries Using Time
Note: If you intend to use power tools for commercial use, or any load of 200W for more than 1 hour regularly (between battery recharging) we recommend installing an auxiliary battery to provide power to the inverter. This battery should be COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 11 / 17... -
Page 12: How To Connect Two Or More Batteries
(NOTE: Reversing the polarity may cause the LED works. No and internal fuses have irreversible damage to the fuse circuit) AC output. No been burnt. alarm. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 12 / 17... -
Page 13: How Many Watts Do You Need
The start-up load of the appliance or tool determines whether an inverter has the capability to power it. Be sure to check the specific wattage requirements and operating instructions for appliances / tools to be used. Also, air COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 13 / 17... - Page 14 750 (Running) * Sump Pump 1/2 1050 (Running) * Well Pump 1/2 hp 1000 (Running) * Air Conditioner 1000-1500 (Running) 2100-4000 (700BTU to 10,000 2200-5000 (Starting) * Sump Pump 1/3 hp 800 (Running) COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 14 / 17...
-
Page 15: Do I Need Modifed Wave Or Pure Sine Wave Inverter
Consult your owners1 for the recommended sized fuse or circuit breaker and gauge for a safe installation. 20. SPECIAL USE Operating a Microwave with a Power Inverter COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 15 / 17... -
Page 16: Improper Use Of Power Inverter
(When the part in the inverter burns out, a crack sound will always be heard and smoke seen. Please keep calm and follow the step above. Attention: please don't use water to irrigate the inverter or it will cause more loss.) COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 16 / 17... -
Page 17: Disposal
Manufacturer: Chang Tian Electrical Technology Co., Ltd Address: HaiXiaDaSha 502 WushigangGongYeQu, DongchengDistrict,DongGuanCity,GuangDong Province,52300,China. Email: info@edecoa.com Visit our official website for more information COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.6 17 / 17...
