- Page 1 USER MANUAL Model: DPP10 DPP15 DPP20 DPP25 DPP35 Language: English COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 1 / 17...
-
Page 2: Table Of Contents
18. What is an over current protection device and why do you need one................15 19. Special use..................................16 20. Improper use of power inverter.............................16 21. Disposal..................................16 22. Warranty..................................17 23. Compensation................................17 COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 2 / 17... -
Page 3: What Is The Power Inverter

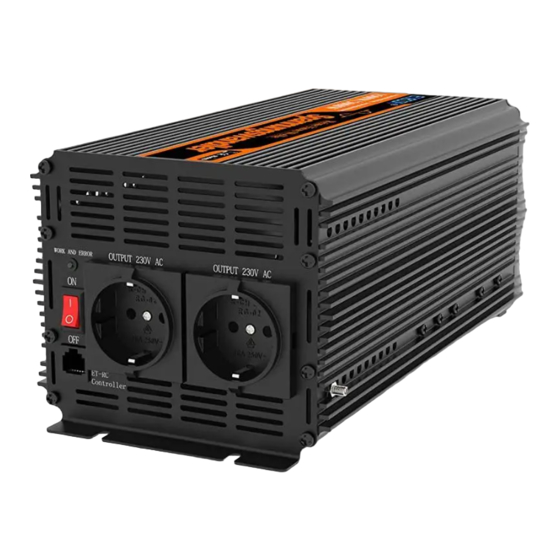

It is simple and you can use it anywhere, anytime, you will always be able to run your devices from battery. 2.INVERTER APPEARANCE DESCRIPTION Pure Sine wave Inverter 1000-2000W Pure Sine wave Inverter 2500W Pure Sine wave Inverter 3500W COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 3 / 17... -
Page 4: Intended Use
If any items are missing or if there is any damage, contact your dealer. Check that the package contains the deliveries as listed below: 1) Power Inverter ×1 2) One pair of screw cap (Red and Black) COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 4 / 17... -
Page 5: Opening The Device
DC power supply.It must be ensured that the DC voltage of the power source is matched to the rated DC voltage of the inverter. Higher voltages can cause damage the inverter. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 5 / 17... - Page 6 . You could find where to connect the ground cable in the power inverter following that icon “ ” When using the power inverter in a vehicle, please connect the ground wire to the chassis of the vehicle. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 6 / 17...
-
Page 7: About The Remote Controller
Therefore, when any one controls the inverter, the other switch must keep the "OFF" state. According to different models, we have two models of remote control (ED-RC, ET-RC). However, it is not possible to replace each other. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 7 / 17... - Page 8 5.After connecting the remote controller, the status light sometimes work, sometimes not, the inverter maybe turn off automatically. Note: If the remote controller can’t work properly, please try to replace the remote cable first. ET-RC remote controller COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 8 / 17...
-
Page 9: Service Environment
16.5ft. Note: If the remote controller can’t work properly, please try to replace the remote cable first. 8.SERVICE ENVIRONMENT Ambient temperature: -20~+50℃ Storage temperature: -40~+85℃ Relative humidity: 0~85% Non-condensing 9.TECHNICAL DATA:（PURE SINE WAVE） COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 9 / 17... -
Page 10: How To Select The Proper Inverter You Need
1 – 3ft Cable 2/0AWG 3.5 – 5ft Cable 0AWG 3.5 – 5ft Cable 0AWG 3.5 – 5ft Cable 2*1AWG 5.5 – 13ft Cable 2/0AWG 5.5 – 13ft Cable 2*1AWG >5ft Not recommended COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 10 / 17... -
Page 11: Batteries Using Time
The auxiliary battery should be connected to the alternator through an isolator module to prevent the inverter from discharging the engine start battery when the engine is off. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 11 / 17... -
Page 12: How To Connect Two Or More Batteries
LED works. No AC output. connection on input side and and replace the internal fuse. (NOTE: Reversing the No alarm. internal fuses have been polarity may cause irreversible damage to the fuse burnt. circuit) COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 12 / 17... - Page 13 Neutral line ? voltage, there is no current distinguish the hotline and neutral line, please contact leakage. customer service or after-sales technology. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 13 / 17...
-
Page 14: How Many Watts Do You Need
1050 (Running) 3000 (Starting) 2150-4100 (Starting) * Well Pump 1/2 hp 1000 (Running) *Air Conditioner 1000-1500 (Running) 2100-4000 (Starting) (700BTU to 10,000 BTU) 2200-5000 (Starting) * Sump Pump 1/3 hp 800 (Running) 1300-2900 (Starting) COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 14 / 17... -
Page 15: Do I Need Modifed Wave Or Pure Sine Wave Inverter
An over current protection device is typically a fuse or circuit breaker that goes inline on the positive cable, between the inverter and battery, to protect your system. A fast-acting fuse or circuit breaker will blow within milliseconds under short circuit conditions, preventing any damage or hazards. COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 15 / 17... -
Page 16: Special Use
(When the part in the inverter burns out, a crack sound will always be heard and smoke seen. Please keep calm and follow the step above. Attention: please don't use water to irrigate the inverter or it will cause more loss.) 21.DISPOSAL COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 16 / 17... -
Page 17: Warranty
Manufacturer:Chang Tian Electrical Technology Co., Ltd Address: HaiXiaDaSha 502WushigangGongYeQu, DongchengDistrict,DongGuanCity,GuangDong Province,52300,China. Designed in Germany, Made in China Email: info@edecoa.com Visit our official website for more information COPYRIGHT©EDECOA, ALL RIGHT RESERVED,PSW-USA-Rev2.71 17 / 17...
