Dodge Torque-Arm II TA0107LM Instruction Manual

Torque-Arm
These instructions must be read thoroughly before installation or operation. This instruction manual was accurate at the time of
printing. Please see dodgeindustrial.com for updated instruction manuals.
WARNING: To ensure the drive is not unexpectedly started, turn off and
lock-out or tag power source before proceeding. Failure to observe these
precautions could result in bodily injury.
WARNING: Torque-Arm II products exceeding 13.5kg (30 lbs) should
be lifted using lift-assist equipment rated for the weight of the product.
Weight values for all Torque-Arm II products are listed in the Gearing
Engineering Catalog. Lifting brackets provided on the Torque-Arm II
should be used when connecting to lift-assist equipment.
INSTALLATION
NOTE: This reducer is compatible with the Dodge
Sensor that can be installed in the adapter plug labeled
"smart sensor." The plug and sensor can be moved to
different locations as required by mounting position.
1. Use lifting bracket to lift reducer.
2. Determine the running positions of the reducer (see Figure 1).
Note that the reducer is supplied with 6 plugs; 4 around the
sides for horizontal installations and 1 on each face for vertical
installations. These plugs must be arranged relative to the
running positions as follows:
Horizontal Installations–Install the magnetic drain plug in
the hole closest to the bottom of the reducer. Throw away the
tape that covers the filter/ventilation plug in shipment and
install plug in topmost hole. Of the 2 remaining plugs on the
sides of the reducer, the lowest one is the minimum oil level
plug.
WARNING: Because of the possible danger to person(s) or property
from accidents which may result from the improper use of products,
it is important that correct procedures be followed. Products must be
used in accordance with the engineering information specified in the
catalog. Proper installation, maintenance and operation procedures
must be observed. The instructions in the instruction manuals must
be followed. Inspections should be made as necessary to assure
safe operation under prevailing conditions. Proper guards and other
suitable safety devices or procedures as may be desirable or as may
be specified in safety codes should be provided, and are neither
provided by Dodge nor are the responsibility of Dodge. This unit and
its associated equipment must be installed, adjusted and maintained
by qualified personnel who are familiar with the construction and
operation of all equipment in the system and the potential hazards
involved. When risk to persons or property may be involved, a holding
device must be an integral part of the driven equipment beyond the
speed reducer output shaft.
II Metric Speed Reducers
®
Instruction Manual
Ratios 5, 9, 15, 25, and 40: 1
WARNING: All products over 25 kg (55 lbs) are noted on the shipping
package. Proper lifting practices are required for these products.
WARNING: Depending on operating conditions, sound levels for Torque-
Arm II products may exceed 70 dB. Protective measures such as hearing
protection may be needed when in close proximity to a Torque-Arm II.
Smart
®
POSITION A
POSITION C
POSITION E
1
Vertical Installations–Install the filter/ventilation plug in the
hole provided in the upper face of the reducer housing as
installed. If space is restricted on the upper face, install the
vent in the highest hole on the side of the reducer per Figure
1. Install a plug in the hole in the bottom face of the reducer.
Do not use this hole for the magnetic drain plug. Of the
remaining holes on the sides of the reducer, use the plug in
the upper housing half for the minimum oil level plug.
HORIZONTAL MOUNTING
5 (NEAR)
4
6 (FAR)
2
1
3
3
1
2
5 (NEAR)
6 (FAR)
4
VERTICAL MOUNTING
5
2 1
6
4 (NEAR)
5 (FAR)

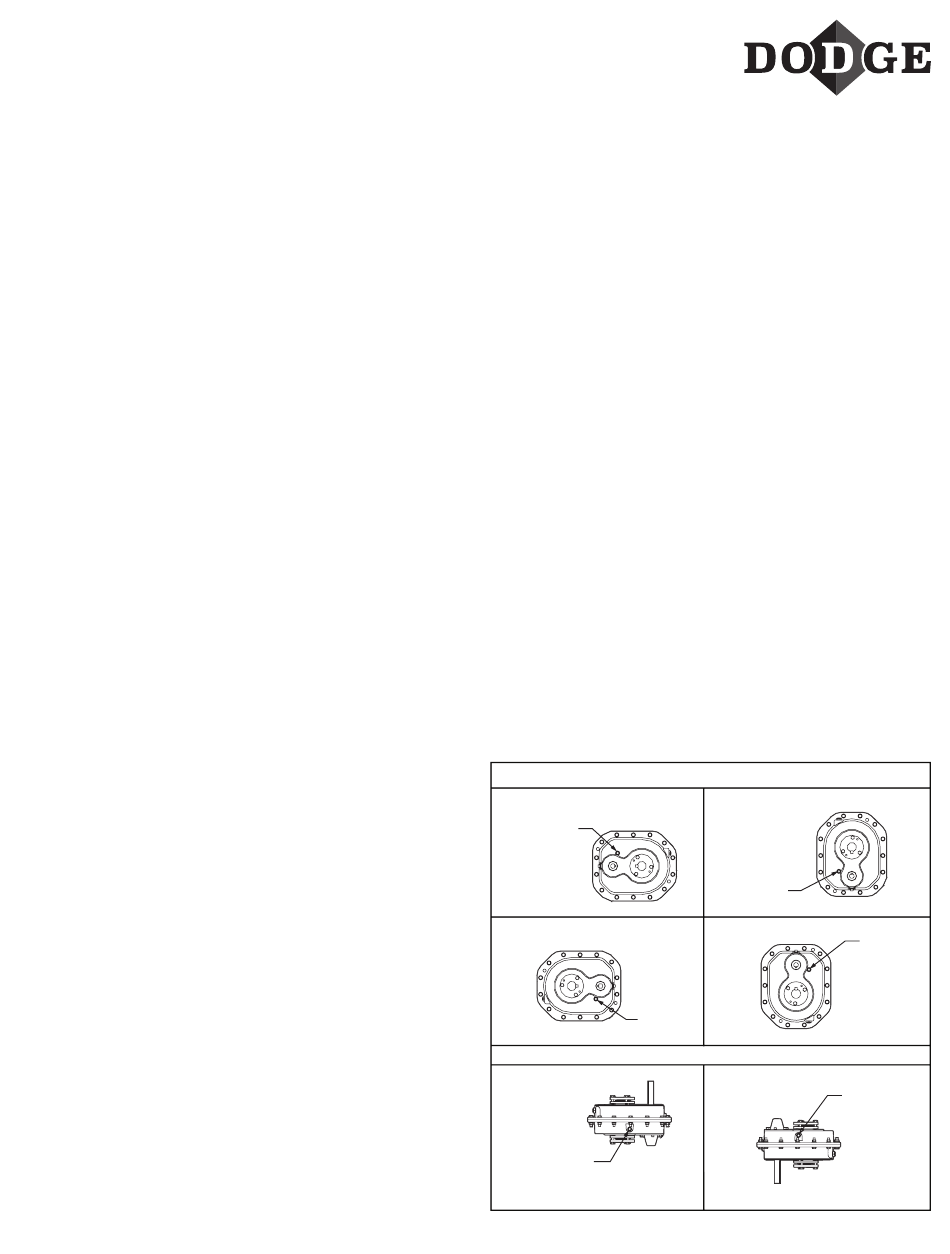

Figure 1 - Mounting Positions
POSITION B
2
4
5 (NEAR)
6 (FAR)
1
POSITION D
1
5 (NEAR)
6 (FAR)
3
4
2
POSITION F
4 (NEAR)
5 (FAR)
6
1 2
5
3
