Dodge TXT/ABHS Installation Instructions Manual

These instructions must be read thoroughly before installation or operation. This instruction manual was accurate at the time of
printing. Please see dodgeindustrial.com for updated instruction manuals.
WARNING: To ensure the drive is not unexpectedly started, turn off and lock-out or tag power source before proceeding.
Failure to observe these precautions could result in bodily injury.
WARNING: All products over 25 kg (55 lbs) are noted on the shipping package. Proper lifting practices are required for
these products.
WARNING: Because of the possible danger to person(s) or property from accidents which may result from the improper use
of products, it is important that correct procedures be followed. Products must be used in accordance with the engineering
information specified in the catalog. Proper installation, maintenance and operation procedures must be observed. The
instructions in the instruction manuals must be followed. Inspections should be made as necessary to assure safe operation
under prevailing conditions. Proper guards and other suitable safety devices or procedures as may be desirable or as may
be specified in safety codes should be provided, and are neither provided by Dodge nor are the responsibility of Dodge.
This unit and its associated equipment must be installed, adjusted and maintained by qualified personnel who are familiar
with the construction and operation of all equipment in the system and the potential hazards involved. When risk to persons
or property may be involved, a holding device must be an integral part of the driven equipment beyond the speed reducer
output shaft.
Auxiliary Output Covers Installation
TXT/ABHS1 and TXT/ABHS2:
1. Using the one piece auxiliary cover (supplied in kit) as a
template, drill two #17 diameter holes 7/16" deep in face of
left (input side) housing.
2. Using the two piece auxiliary cover (supplied in kit) as a
template, drill four #17 diameter holes 7/16" deep in face of
right (backstop side) housing.
3. Install auxiliary covers using screws (self-tapping) supplied
in kit.
NOTE: Before drilling holes, mask or tape off seal area to
prevent cast iron shaving from damaging seals.

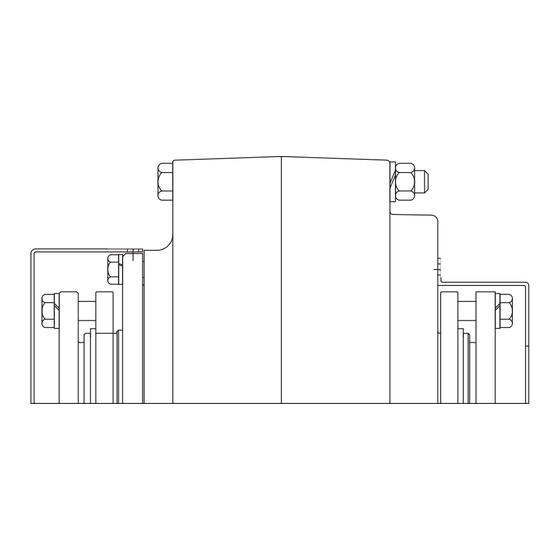

DRILL HERE
TXT1ABHS THRU TXT2ABHS
TXT/ABHS Reducer Harsh Duty Covers
Installation Instruction Manual
DRILL HERE
TXT/ABHS3 thru TXT/ABHS5:
1. Using the one piece auxiliary cover (supplied in kit) as a
template, drill two #17 diameter holes 7/16" deep in output
seal carrier on left (input) side of reducer.
2. Using the two piece auxiliary cover (supplied in kit) as a
template, drill four #17 diameter holes 7/16" deep in face of
right (backstop side) housing.
3. Install auxiliary covers using screws (self-tapping) supplied
in kit.
Note: Before drilling holes, mask or tape off seal area to
prevent cast iron shaving from damaging seals.
DRILL HERE
TXT3ABHS THRU TXT5ABHS
1
DRILL HERE
