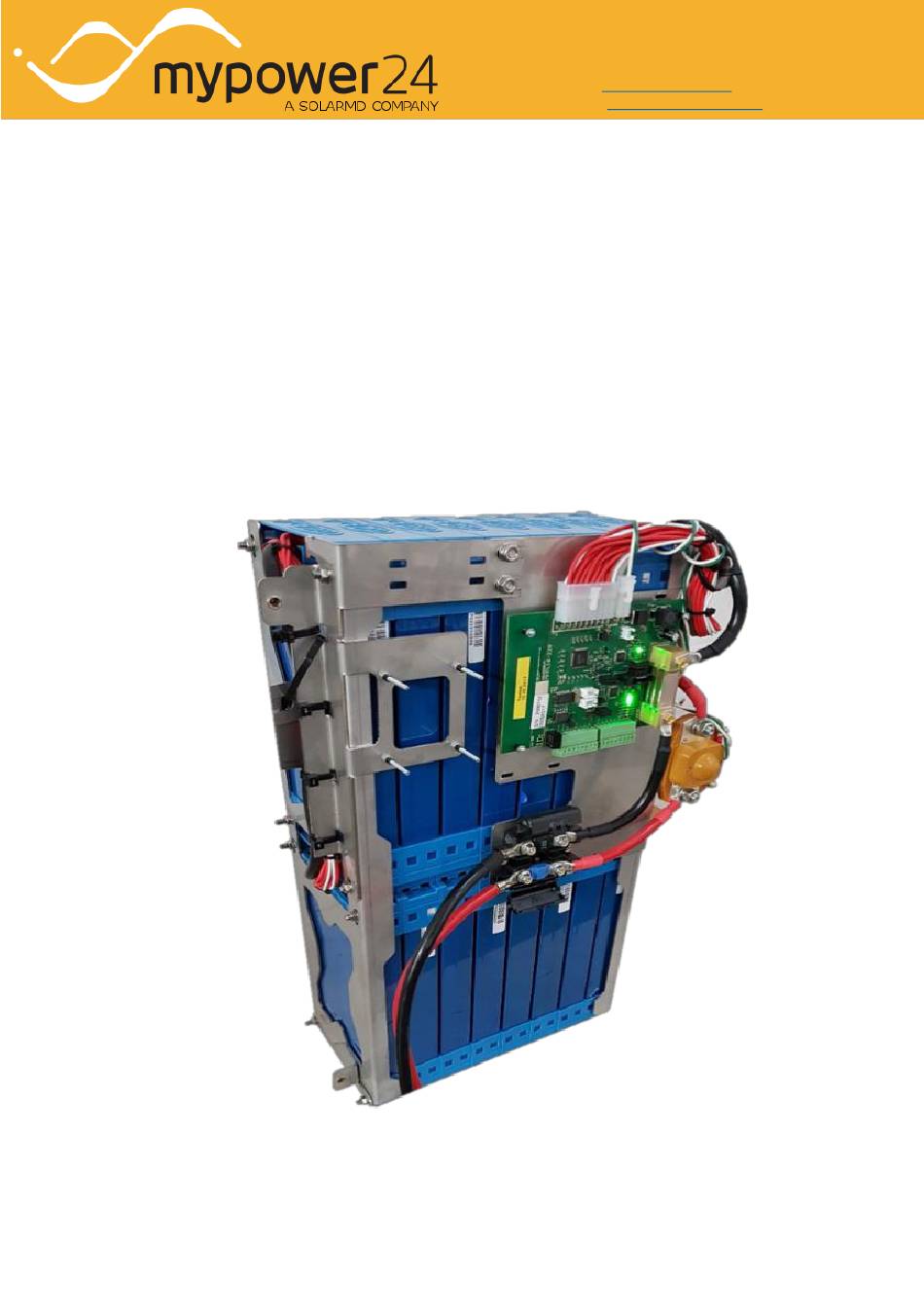

- Page 1 Solar MD Proprietary Limited Company Registration: 2014/169938/07 T: 021 555 2181 info@solarmd.co.za www.mypower24.co.za QUICK INSTALLATION MANUAL SS106 advanced Lithium-Ion battery Mypower24 3.7k...
- Page 2 Solar MD Proprietary Limited Company Registration: 2014/169938/07 T: 021 555 2181 info@solarmd.co.za www.mypower24.co.za 1. Specification mypower24 3.7k SS106 specification Battery type Lithium Iron Phosphate Scalability Up to 22 KWh Battery module SS106 Communication CANBUS 500kbps/CAN 2.0B Rated battery capacity 3.84 kWh...
- Page 3 Solar MD Proprietary Limited Company Registration: 2014/169938/07 T: 021 555 2181 info@solarmd.co.za www.mypower24.co.za 3. Mechanical installation 3.1. Box bracket assembly Position bracket vertically and slide all the way down until the limiting notch hit the end. Tight the screw with big flat screwdriver.
- Page 4 Solar MD Proprietary Limited Company Registration: 2014/169938/07 T: 021 555 2181 info@solarmd.co.za www.mypower24.co.za 3.3. Drilling holes for cable glands and ON/OFF button Figure 5. Enclosure section bottom view, safe areas for drilling and installation of cable glands. Please pay attention while drilling, drilling into the cell will cause internal short circuit, which will cause overheating accompanying with smoke and risk for damaging nearest cells.
- Page 5 Solar MD Proprietary Limited Company Registration: 2014/169938/07 T: 021 555 2181 info@solarmd.co.za www.mypower24.co.za Figure 6 Top clearance The top side of the box is clear for drilling in entire section. Avoid using long drill bits clearance is 57mm shown in figure 6 4.
- Page 6 Solar MD Proprietary Limited Company Registration: 2014/169938/07 T: 021 555 2181 info@solarmd.co.za www.mypower24.co.za Connecting Inverters/chargers/UPS to the battery unit while is ON can cause big sparks due to capacitors inside the connected device. This can be harmful for human. Connecting main battery terminal must be with right size cable based on the rated current of the battery the charger/inverter in case it is lower.
- Page 7 Solar MD Proprietary Limited Company Registration: 2014/169938/07 T: 021 555 2181 info@solarmd.co.za www.mypower24.co.za 5. Communication 5.1 Physical connection CANBUS interface devices communicate to each other over CANBUS interface. This interface contains two pins: CAN HIGH and CAN LOW. All devices must be connected in parallel see...
- Page 8 6. Maximum charging / discharging voltages for not supported devices. Equalization must be disabled. Please check if your inverter charger has been approved by Solar MD and it is CAN compatible. Table 2 Recommended discharge/ charge voltages Charging...
