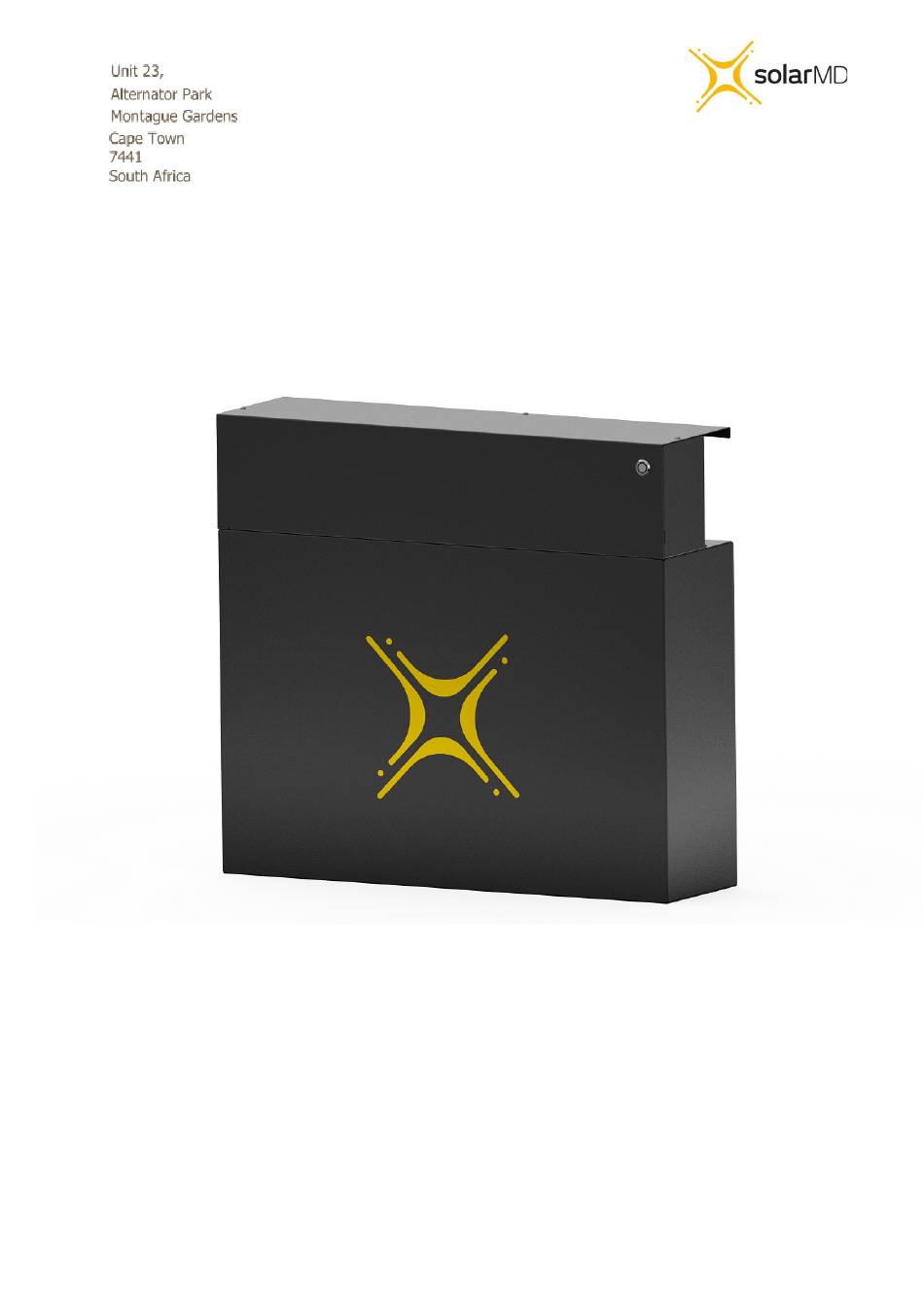

- Page 1 INSTALLATION MANUAL SS4143-01 Advanced Lithium-Ion battery...
-
Page 2: Table Of Contents
Introduction Product Description Product Specifications Errors or Inaccuracies Copyrights Safety Information ⚠ Warnings ⚠ Cautions Specification Mechanical installation Installing bottom cover plate Electrical installation Commissioning Multicolor multipurpose button Button function Button indication BMS Warnings and Errors CANBUS connection. CANBUS warnings. Troubleshooting Warnings / Errors Maximum charging / discharging voltages for non supported devices. -
Page 3: Introduction
Product Description The SS4143-01 battery solution is available in one standard size and can be paralleled to meet most residential applications. The rated voltage is 51.2V nominal (to suit 48V systems). Larger systems are provided by Solar MD based on specific project requirements. -
Page 4: Product Specifications
Product Specifications All SS4143-01 specifications & descriptions contained in this document are verified to be accurate at the time of printing. Solar MD reserves the right to make any product revisions & improvements at any time. Errors or Inaccuracies To communicate any inaccuracies, omissions or to provide general feedback regarding this manual, send an email to info@solarmd.co.za... -
Page 5: Specification
Solar MD 14.3kWh SS4143-01 specification Lithium Iron Battery type Scalability Phosphate SS4143 CANBUS 500kbps / CAN Battery module Communication 2.0B 14336 Wh Single 120 Ohm Rated battery capacity Can BUS termination Max 10 kW 256 - 499 Output power... -
Page 6: Mechanical Installation
Mechanical installation... - Page 7 Installing top cover plate Figure 3a Top cover installation single or multiple batteries in line...
- Page 8 Figure 3b Battery spacing - installation single or multiple batteries in line...
- Page 9 Figure 3c Battery feet - installation of battery feet...
-
Page 10: Electrical Installation
Electrical installation Step 1. Before connecting anything be sure that the battery ON/OFF switch is at OFF position. (figure 4) Figure 4 BMS board component locations... - Page 11 Connecting Inverters/chargers/UPS to the battery unit while it is ON can cause big sparks due to capacitors inside the connected device. This can be harmful to people. Connecting the main battery terminal must be with the correct size cable based on the rated current of the battery and the charger/inverter incase it’s lower. Figure 5 connection terminals Step 2.
- Page 12 Switching the Battery ON Step 1. Make sure all DC cables are tightened according to specifications. Step 2. If the battery operates in parallel with other energy sources, make sure that the difference between battery voltage and DC bus is not more than 2.5V. If greater than 2.5V please charge or discharge the other source accordingly until the voltage difference is in a safe range under 2.5V.
-
Page 13: Multicolor Multipurpose Button
Figure 6 : Multicolor / Multipurpose button. Button functions The new Solar MD Multipurpose button has an extended functionality in combination with the BMS-EX. The Multipurpose Button can be used to directly execute 6 predefined functions and a shutdown instruction. In combination with the 6 Indication LEDs on BMS-EX, the user can choose between each function by holding the button until the LED count matches the number of the function. -
Page 14: Button Indication
- study color for 1 interval and slow loss of color following illumination interruption. Solar MD users refer for both as charging / discharging waves. Fixed color with current direction based in shading... -
Page 15: Bms Warnings And Errors
BMS Warnings and Errors Method of displaying general warnings and errors: Figure 7 : Display general warnings and errors, main status LEDs and indication LEDs. The Status LEDs determine what the indication LEDs will show. 1. If the Status LED is Green the indication LEDs will show: a) Battery capacity b) Current flow and direction c) Off... - Page 16 Warning Register Warning Visual Representation Description Code If the Warning LED blinks ORANGE, refer to the indication LEDs to find the corresponding warning event in the table below Pending Awake High Pending Awake Low Positive fuse blown Negative fuse blown ●...
- Page 17 Charge current too high Cell temperature too low Cell temperature too high Battery cell voltage too high Battery cell voltage too low...
- Page 18 Error Register Error Visual Representation Description Code If the Error LED blinks RED, refer to the indication LEDs to find the corresponding Error event in the table below Max 14921 not responding (Cell monitoring) Max 14921 thermal shutdown Open cell detected Internal EEPROM error External EEPROM error Balancing error internal FET circuit...
- Page 19 ● Override On out of range Internal fault Cell overvoltage ● Charge Over current Pack overvoltage Pack undervoltage Pack undervoltage Over current charge Over current discharge User shutdown init Remote shutdown init...
- Page 20 Relay coil over current Relay fuse blown Relay coil open Gyro Z out of range Gyro Y out of range Gyro X out of range ● Ext NTC 3 fault ● Ext NTC 2 fault ● Ext NTC 1 fault Cell temperature too high...
-
Page 21: Canbus Connection
CANBUS connection. Bms EX used CAN 2.0B @ 500000 kb. Connecting other device operating at different speed rate is not allowed. For connection please use twisted pair wires in a shielded cable to minimize RF emissions. RJ45 connections can be used for daisy chaining BMS EX together using a straight Ethernet cable. The output of the Bms EX CAN transceiver is galvanically isolated. -
Page 22: Canbus Warnings
CANBUS warnings Figure 9 CANBUS Termination resistor and Warning LED location The Orange LED (WARN) is used to display warning for canbus only. Reading this warning is possible with pulse counting. - CANBUS line open or no termination resistor set. [1] .. -
Page 23: Troubleshooting Warnings / Errors
The BMS is set for different number cells in series as the actually Contact your installer or Solar MD support team installed Battery cell voltage is way too low. Fill in the failure report and send to info@solarmd.co.za... -
Page 24: Maximum Charging / Discharging Voltages For Non Supported Devices
@0.3C discharge / charge current. If so adjust the values above. Please check if your inverter charger has been approved by Solar MD and it is CAN compatible. For the latest Solar MD installation documents go to: www.solarmd.com...
