Do you have a question about the SS202-05 and is the answer not in the manual?
Questions and answers
Julie Gosling
May 21, 2025
How do I reboot the battery to reset my logger
1 comments:
Mr. Anderson
May 24, 2025
To reboot the Solar MD SS202-05 battery and reset the logger, follow these steps:
1. Turn the BMS board ON/OFF switch to the OFF position. 2. Wait briefly to allow all voltages to drop to safe levels. 3. Turn the BMS board ON/OFF switch back to the ON position. 4. If not already connected, connect the Multipurpose button to the BMS board. 5. Press and hold the Multipurpose button until the light comes on.
This process reboots the battery and resets the system.
Page 1

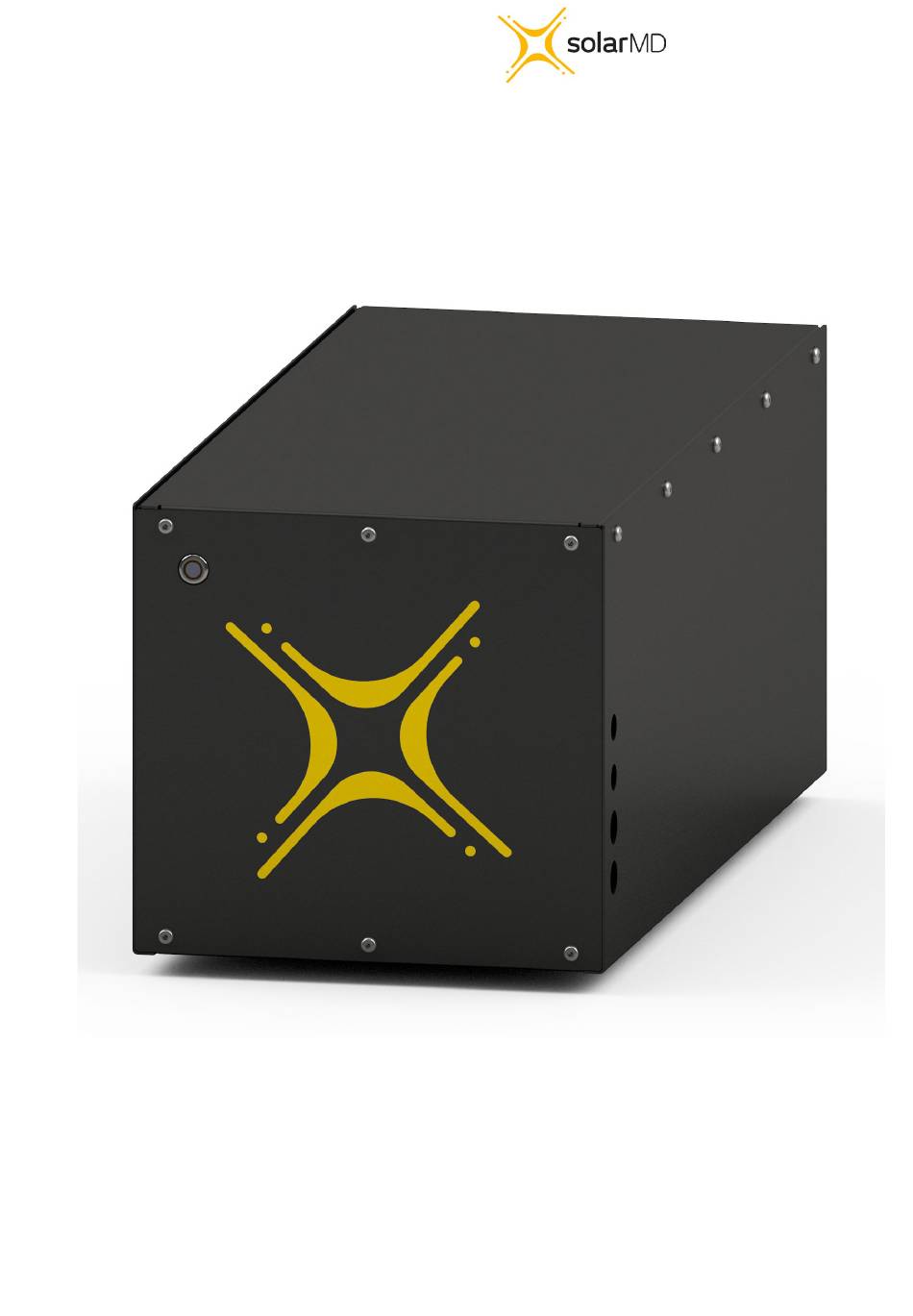

Solar MD (PTY) ltd. Unit 23, Alternator Park Montague Gardens 7441 Cape Town, South Africa INSTALLATION MANUAL SS202-05 Advanced Lithium-Ion battery ...
WARNING: Read the entire document before installing or using the Solar MD battery. Failure to comply with the instructions or warnings in this document could result in electrical shock or serious injury that can result in death or damage to the product that can render the SS202-05 Solar MD battery inoperable.
SS202-05 INSTALLATION MANUAL v1.2 Product Specifications All SS202-05 specifications & descriptions contained in this document are verified to be accurate at the time of printing. Solar MD reserves the right to make any product Revisions & improvements at any time. Errors or Inaccuracies To communicate any inaccuracies, omissions or to provide general feedback regarding this manual, send an email to...
E: info@solarmd.co.za T: (021) 555 2181 Cape Town, South Africa SS202-05 INSTALLATION MANUAL v1.2 Mechanical installation The SS202 can be used in conjunction with the CB or MSS series cabinets. They provide a flexible and modular design. It's storage capabilities depend on the number of SS202 modules installed into the cabinet, for example a limit of 3 modules for the CB-12 cabinet.
E: info@solarmd.co.za T: (021) 555 2181 Cape Town, South Africa SS202-05 INSTALLATION MANUAL v1.2 Electrical installation Step 1 . Before connecting anything be sure that battery is off and the ON/OFF switch (fig2 pos 3) is in the OFF position.
Page 8
E: info@solarmd.co.za T: (021) 555 2181 Cape Town, South Africa SS202-05 INSTALLATION MANUAL v1.2 Connecting Inverters/chargers/UPS to the battery unit while it is ON can cause big sparks due to capacitors inside the connected device. This could cause serious injuries.
E: info@solarmd.co.za T: (021) 555 2181 Cape Town, South Africa SS202-05 INSTALLATION MANUAL v1.2 Commissioning Step 1 . Ensure all DC cables are tight according to specifications. Step 2 . If the battery operates in parallel with other Energy sources, make sure that the difference between battery voltage and DC bus is not more than 2.5V.
Figure 4: Multicolor / Multipurpose button. Button function The new Solar MD Multipurpose button has an extended functionality in combination with the BMS-EM v10.01. The Multipurpose Button can be used to directly execute 6 predefined functions and a shutdown instruction. In combination with the 6 Indication LEDs on BMS-EM v10.01, the user can choose between each function by...
- study color for 1 interval and slow loss of color following illumination interruption. Solar MD users refer for both as charging / discharging waves. Fixed color with current direction based in shading When this state has been selected, the button shows illumination in a color based on the user choice and flashing code based on the electrical current direction (charge / discharge).
Montague Gardens 7441 E: info@solarmd.co.za T: (021) 555 2181 Cape Town, South Africa SS202-05 INSTALLATION MANUAL v1.2 BMS Warnings and Errors Method of displaying general warnings and errors: Figure 5 : Display general warnings and errors, Main stat LEDs and Indication LEDs.
Page 13
Montague Gardens 7441 E: info@solarmd.co.za T: (021) 555 2181 Cape Town, South Africa SS202-05 INSTALLATION MANUAL v1.2 Warning codes. Figure 6. Indication LEDs: (1,2,3) orange left and (4,5,6) green right. In combination with Orange Stat LED (WARNING) ◼ + ...
Page 14
Solar MD (PTY) ltd. Montague Gardens 7441 E: info@solarmd.co.za T: (021) 555 2181 Cape Town, South Africa SS202-05 INSTALLATION MANUAL v1.2 Error codes Figure 7. Indication LEDs: (1,2,3) orange left and (4,5,6) green right. In combination with Red Stat LED (ERROR) ◼...
Page 15
Montague Gardens 7441 E: info@solarmd.co.za T: (021) 555 2181 Cape Town, South Africa SS202-05 INSTALLATION MANUAL v1.2 Error codes continued. Figure 8 Indication LEDs: (1,2,3) orange left and (4,5,6) green right. In combination with Red Stat LED (ERROR) ◼ ...
Montague Gardens 7441 E: info@solarmd.co.za T: (021) 555 2181 Cape Town, South Africa SS202-05 INSTALLATION MANUAL v1.2 CANBUS connection. Bms EM used C AN 2.0B @ 500000 kb. Connecting other device operating at different speed rate is not allowed. For connection please use ...
E: info@solarmd.co.za T: (021) 555 2181 Cape Town, South Africa SS202-05 INSTALLATION MANUAL v1.2 CANBUS warnings. Figure 10 CANBUS Termination resistor and Warning LED location The Orange LED (WARN) is used to display warning for canbus only. Reading this warning is possible with pulse counting.
The BMS will restart automatically, please achieved contact support team or approved installer The BMS is set for different number cells in series as the actually Contact your installer or Solar MD support team installed cvt22 Battery cell voltage way too low.
@0.3C discharge / charge current. If so adjust the values above. Please check if your inverter charger has been approved by Solar MD and it is CAN compatible. For the latest Solar MD installation documents go to: shop.solarmd.co.za...
Need help?
Do you have a question about the SS202-05 and is the answer not in the manual?
Questions and answers
How do I reboot the battery to reset my logger
To reboot the Solar MD SS202-05 battery and reset the logger, follow these steps:
1. Turn the BMS board ON/OFF switch to the OFF position.
2. Wait briefly to allow all voltages to drop to safe levels.
3. Turn the BMS board ON/OFF switch back to the ON position.
4. If not already connected, connect the Multipurpose button to the BMS board.
5. Press and hold the Multipurpose button until the light comes on.
This process reboots the battery and resets the system.
This answer is automatically generated
