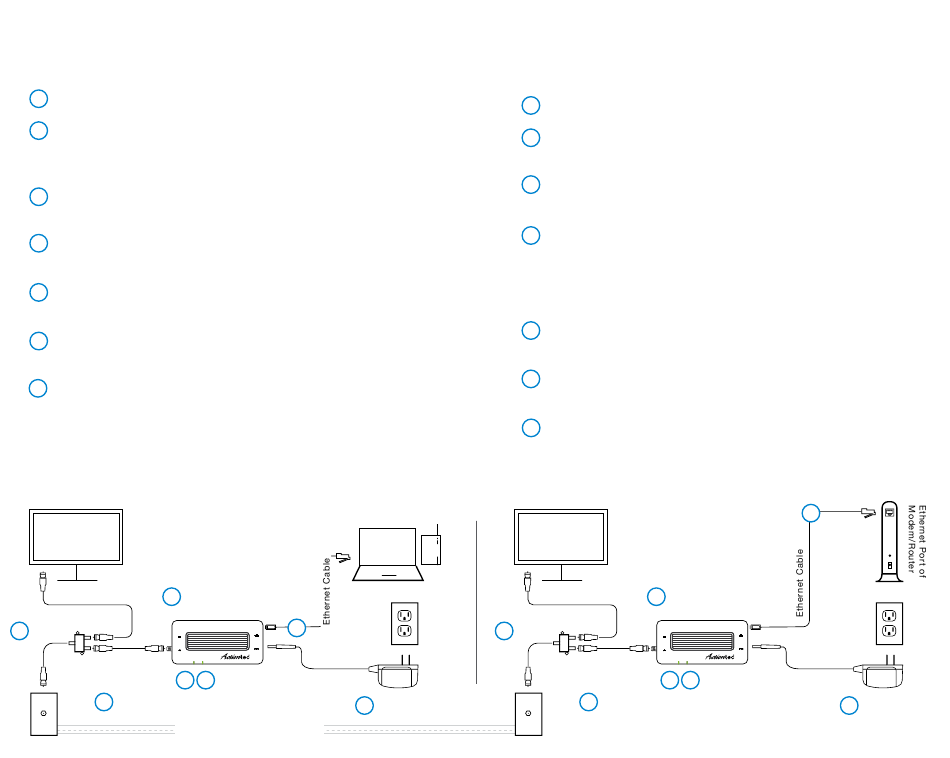

Step 1: Connect to your Device
Get one MoCA 2.5 Extender.
a
Locate the device or access point (laptop, etc.) that
b
needs to connect to the Internet. Connect one Ethernet
Cable from the Extender to the Device.
Connect one Splitter to the Coax Cable coming from
c
the Coax Outlet on the wall.
Connect one Coax Cable from the Splitter to the Coax
d
In port on the Extender.
Connect one Power Adapter to the Extender and to a
e
Power Outlet.
Wait until the Power light on the front of the adapter
f
is
GREEN.
g IMPORTANT! If the Coax LED on the Extender
is already GREEN, you may have MoCA built in to your
modem/router. Check the device you just connected. If it
is connected to the Internet, you're done*. If the device
does not connect to the Internet, continue to Step 2.
*
You may use the 2nd adapter with another device or access point.
TV
a MoCA Extender
d
Splitter
MPS
Coax In
Power
f
Power LED
Coax
c
Outlet
(Coaxial wiring behind the wall)
Laptop or other
access point
Power
Outlet
b
Ethernet
Power
Coax
ECB7250 ECB7250
g
Coax LED
e
Step 2 : Connect to your Modem/Router
Get one MoCA 2.5 Extender.
a
Connect one Ethernet Cable from the Extender to the
b
Modem/Router.
Connect one Splitter to the Coax Cable coming from
c
the Coax Outlet on the wall.
Connect one Coax Cable from the Splitter to the Coax
d
In port on the Extender.
Note: If you have a TV or set top box near your modem/router,
connect a coax cable from the splitter to the TV or set top box.
Connect the second Power Adapter to the Extender
e
and to a Power Outlet.
Wait until the Power light on the front of the adapter
f
is
When the Coax LED is
g
adapters are working.
d
Splitter
Coax
Power
Outlet
Adapter
GREEN.
GREEN
TV
a MoCA Extender
Ethernet
MPS
Power
Coax In
Power Coax
ECB7250 ECB7250
g
f
Power LED Coax LED
c
on both adapters, your
b
Power
Outlet
Power
e
Adapter
