ActionTec WCB6200Q Quick Start Manual

Manual Configuration of the Extender's
Wi-Fi Settings
1
Step
Use a laptop, tablet or other device to login into your Wi-Fi
Router. (If you do not know how to do this, please see the documentation
)
for your Wi-Fi Router.
2
Step
Find the list of devices that are connected to your Router. This
is usually found on the main screen after logging into your Router or
under a Status Tab.
3
Step
Find a device with the name WCB6200Q. If you cannot find
a device with that name, please look for a device that has the same Mac
address as the Extender.
4
Step
Write down the IP address of the Wi-Fi Network Extender
here: _______________________.
5
Step
Open a web browser, and type in the IP address that you
wrote down under Step 4.
6
Step
Once the Home Screen appears, login into the Extender
with the user name and password found on the label on the back of the
Extender.
7
Step
Click on the Wireless Setup icon.
8
Step
Select the Wi-Fi band that you want to rename. Make the
adjustments and save your changes.
©2015 Actiontec Electronics, Inc. Actiontec, Creative Solutions for the Digital Life, and
the Actiontec logo are registered trademarks or trademarks of Actiontec Electronics,
Inc. Incorportated in the U.S. or other countries. All other names are properties of their
respective owners.
Product photo may differ from actual product. However, functionality remains as stated above.
Specifications are subject to change without notice.

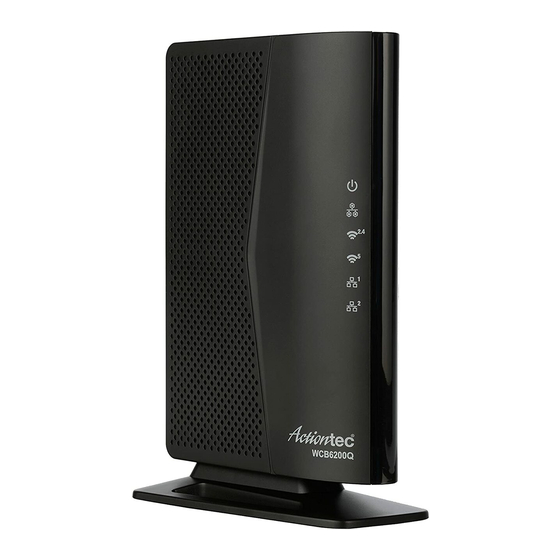

802.11ac Wireless
Network Extender
Model # WCB6200Q

Quick Start Guide

This Quick Start Guide will walk you through the easy steps to use your
existing coaxial wiring to extend your Wi-Fi signal. This requires that
your Wi-Fi router support MoCA or that you have connected your Wi-Fi
Router to a MoCA Network Adapter similar to Actiontec's ECB6200
MoCA 2.0 Bonded MoCA Network Adapter. Here is what's included:
• (1) WCB6200Q Wireless • (1) Ethernet Cable
Network Extender
• (1) Coaxial Cable
• (1) Power Adapter
• (1) Coaxial Splitter
(External, 12V DC, 2A
made by Actiontec,
Model# WA-24Q12FU)
