CanadaDocks

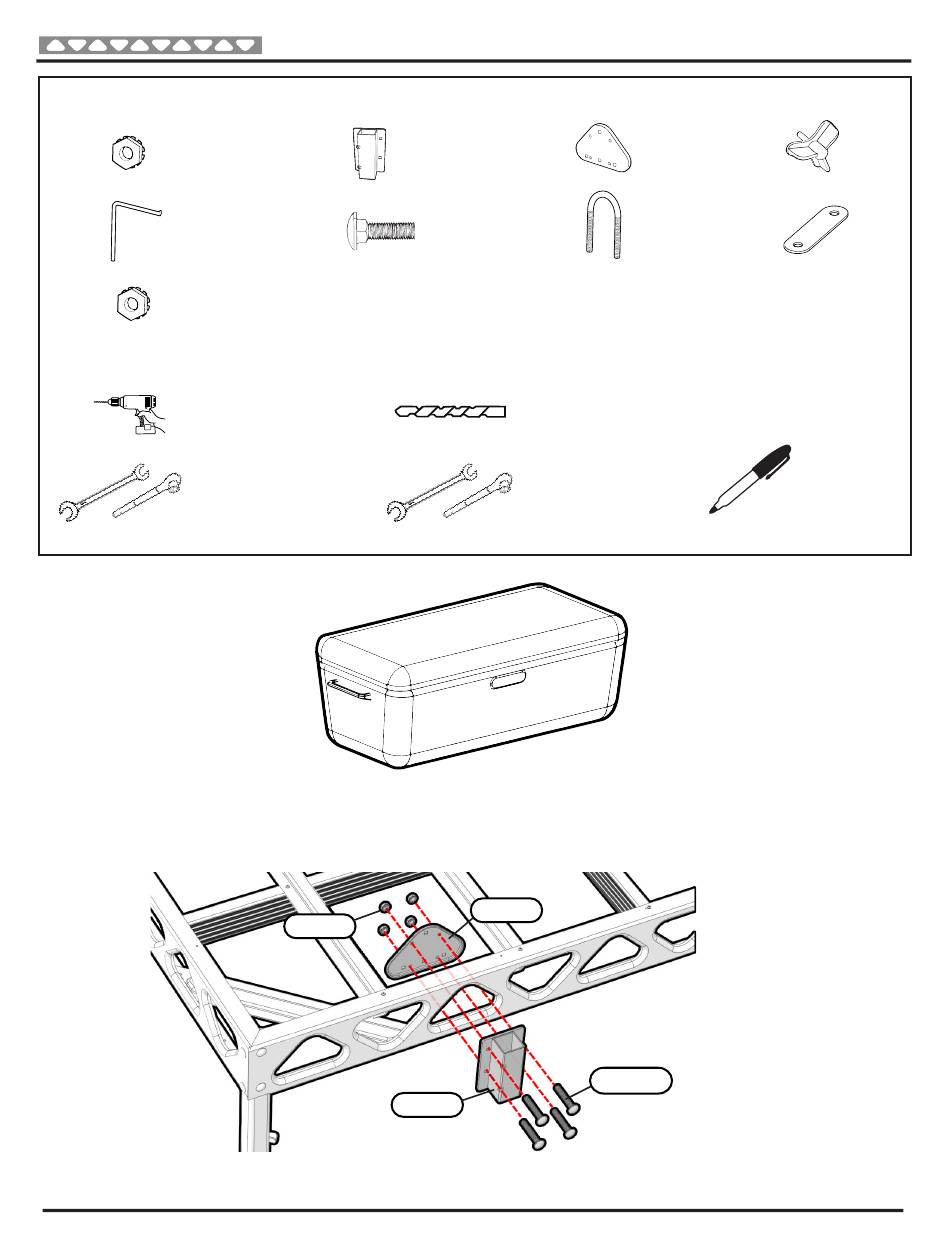

INCLUDED IN KIT:
x8
NL38
x2
RHF1
x8
NL25
TOOLS REQUIRED:
Drill
9/16" Box Wrench
or
9/16" Socket/Ratchet
PLEASE NOTE
1
It is recommended to find an opening for the dock box hardware that does not interfere with other dock accessories.
PLEASE NOTE: The decking has been removed from the image to better illustrate installation.
CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca
ca
TM
.
RH1
CB15S
: THE DOCK BOX KIT DOES NOT INCLUDE A DOCK BOX AND ONLY THE HARDWARE TO
INSTALL ONE TO THE DOCK. THE DOCK BOX WILL BE SUPPLIED BY THE CUSTOMER.
NL38
DOCK BOX HOLDER INSTRUCTIONS
x2
TPU1
x8
UB25
9/32" Drill Bit
1/4" Box Wrench
or
1/4" Socket/Ratchet
TPU1
RH1
x2
AK1
x4
UBB1
CB15S
x4
x4
Magic Marker
Rev 01 06.01.20
Advertisement
Table of Contents
Related Manuals for Canada Docks BOX HOLDER
Summary of Contents for Canada Docks BOX HOLDER
- Page 1 CanadaDocks DOCK BOX HOLDER INSTRUCTIONS INCLUDED IN KIT: NL38 TPU1 RHF1 CB15S UB25 UBB1 NL25 TOOLS REQUIRED: Drill 9/32” Drill Bit 9/16” Box Wrench 1/4” Box Wrench Magic Marker 9/16” Socket/Ratchet 1/4” Socket/Ratchet PLEASE NOTE : THE DOCK BOX KIT DOES NOT INCLUDE A DOCK BOX AND ONLY THE HARDWARE TO INSTALL ONE TO THE DOCK.
- Page 2 CanadaDocks DOCK BOX HOLDER INSTRUCTIONS RHF1 The height of your Dock Box may be adjusted by sliding the Rack Frame(RHF1) up or down to the height you require and tightening the Adjustment Knobs(AK1). CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca...
- Page 3 CanadaDocks DOCK BOX HOLDER INSTRUCTIONS When you have adjusted the height of the Rack Frame(RHF1) to the desired height for your Dock Box tighten the Adjustment Knobs(AK1). PLEASE NOTE: Depending on your preference the Rack Frames(RHF1) can be placed facing towards or away from the dock.
- Page 4 CanadaDocks DOCK BOX HOLDER INSTRUCTIONS Dock Box is supplied by customer. UB25 Approximate the position for all 4 U-Bolts(UB25) and mark holes for drilling. CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 01 06.01.20...
- Page 5 CanadaDocks DOCK BOX HOLDER INSTRUCTIONS NL25 UBB1 UB25 Connect all 4 U-Bolts(UB25) and necessary hardware from the inside of the dock box. CanadaDocks Inc. 3690 Adjala-Tecumseth Townline RR2 Beeton, ON, Canada L0G 1A0 | 1-877-434-0359 | www.canadadocks.ca Rev 01 06.01.20...
