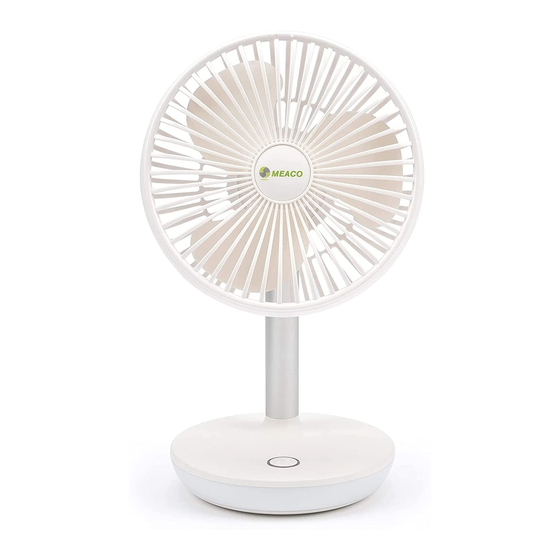

Meaco MeacoFan 260c Instruction Manual
Cordless air circulator
Hide thumbs
Also See for MeacoFan 260c:
- Instruction manual (10 pages) ,
- Instruction manual (10 pages) ,
- User manual
Related Manuals for Meaco MeacoFan 260c
Summary of Contents for Meaco MeacoFan 260c

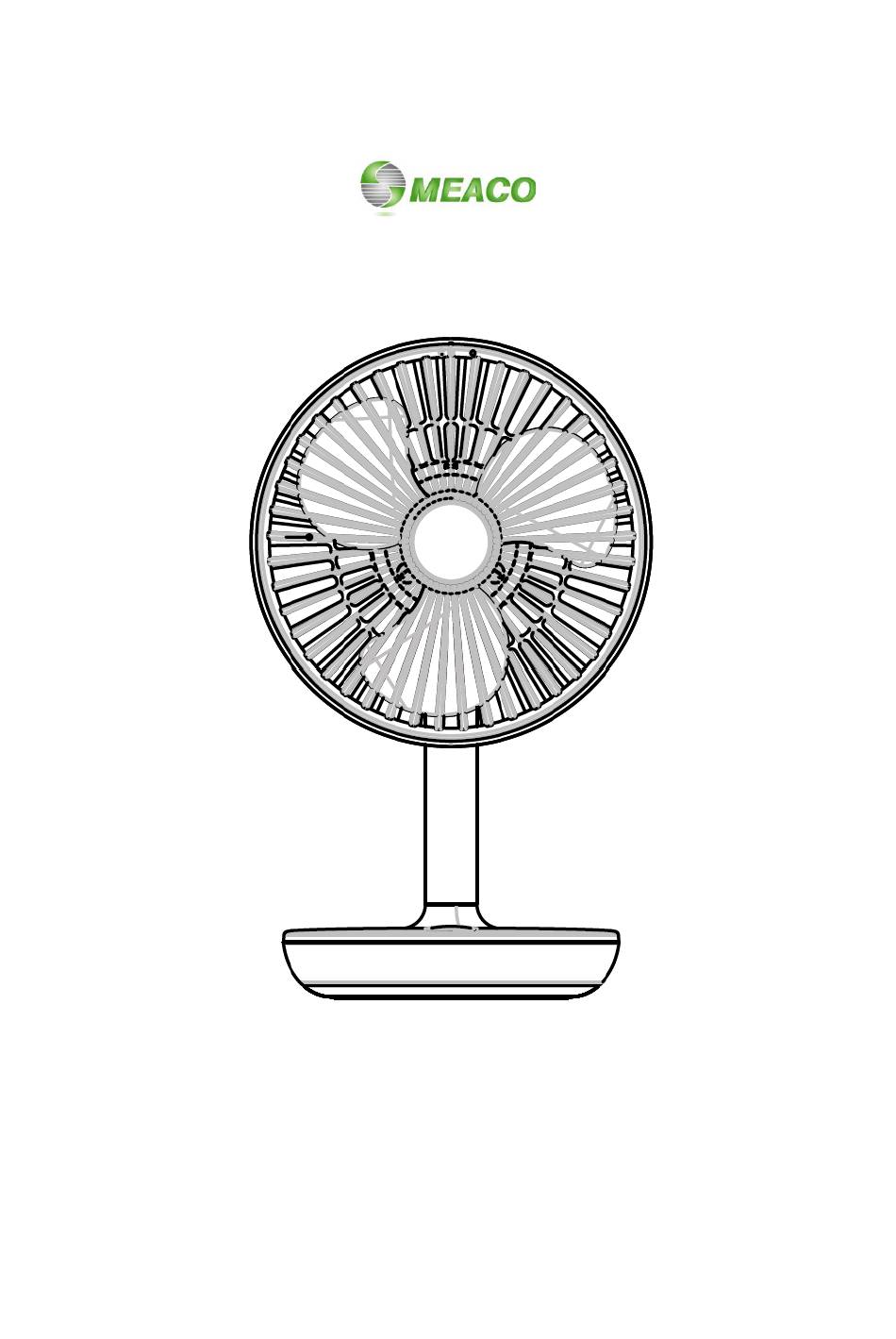

- Page 1 Instruction Manual MeacoFan 260c Cordless Air Circulator Thank you for choosing Meaco, we really appreciate it.
-
Page 2: Safety Information
Do not store or operate outdoors. If electrical wiring or components become wet, thoroughly dry them before using the unit. If in doubt do not use the air circulator and consult a qualified electrician or a Meaco approved engineer. -
Page 3: What's Included
Warranty registration Visit www.meaco.com/pages/register-your-warranty to register your 2-year manufacturer’s warranty - as a thank you, you will be entered into our monthly free prize draw to help support the David Shepherd Wildlife Foundation. Make sure you register your warranty as soon as possible so we can provide you with quick and efficient support should you need it. -
Page 4: Operation
Operation Turning the fan on: Press the control button once. Turning the night light on: Hold down the control button for 2 seconds. Turning the night light off: Hold down the control button for 2 seconds. Adjusting the fan speed: There are 4 fan speeds. To move through the fan speeds, press the control button. -
Page 5: Cleaning The Fan
Cleaning the fan Always turn the fan off and unplug it from the socket before cleaning. Hold the back of the fan and pull out the fan blades. Remove the front of the fan by holding the back of the fan and turning the front guard anti-clockwise. -
Page 6: Battery Replacement
Battery replacement Turn the fan upside down and use a screwdriver to Remove the lid and batteries. unscrew the lid on the base of the fan. Insert new batteries (2 x 18650 3.7v 2500mAh lithium cell batteries), put the lid back in place and screw shut using a screwdriver. -
Page 7: Technical Data
Technical data Humidity operating range Non-condensing Fan motor type DC brushless motor Maximum air flow 260 cubic metres per hour *Maximum air velocity (c) 2.7m/sec *Rated voltage and frequency 5V 1A / 5V 2A Power consumption 1 to 4.5 watts *Standby power consumption (PSB) 0.0001 watts Vertical oscillation swing angles... -
Page 8: Product Care
Product care The MeacoFan 260c doesn’t need much maintenance: keep the fan clean as per the previous instructions and store it a clean dry place when not in use. Before storing the air circulator for a long period of time make sure the air circulator has at least half its charging power.
