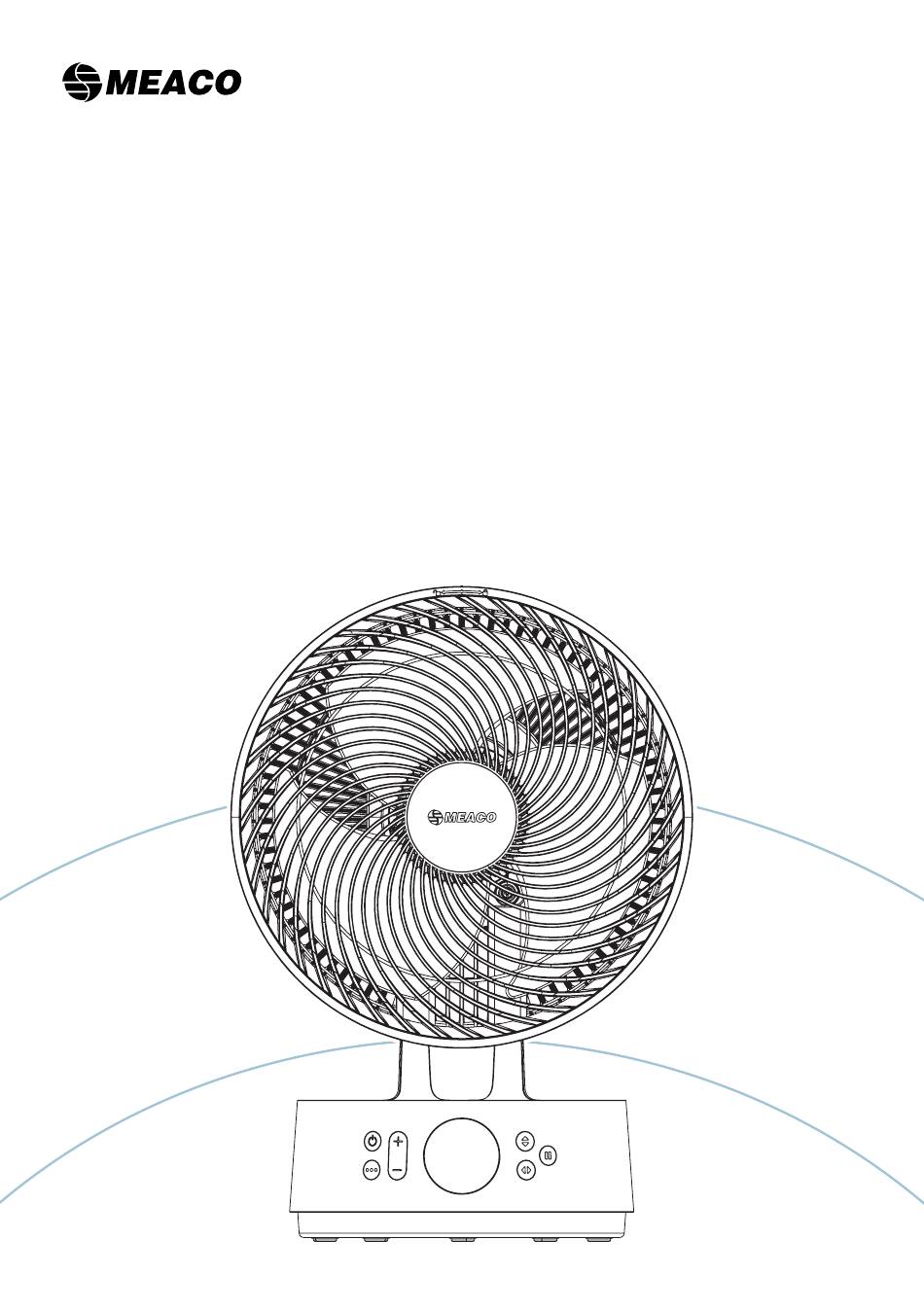

- Page 1 MeacoFan Sefte ” ® Table Air Circulator Instruction Manual...
- Page 2 Thank you for choosing Meaco Thank you for choosing Meaco, we really appreciate it. We built the Sefte® range of air circulators after years of research and customer feedback, engineering the perfect cooling product for you and your family. This product not only provides you with enhanced cooling, but is functional in its design and fits into your home.
-
Page 3: Table Of Contents
Contents Safety information ........Register your Meaco warranty ....Meaco App ..........What’s included .......... Product identification ......... Operation ............ Battery mode ..........Maintenance ..........Storing ............Troubleshooting .......... Meaco customer care ........ Specifications ..........Warranty terms & conditions ...... -
Page 4: Safety Information
If these areas become wet for any reason, thoroughly dry them before using the air circulator. If in doubt, do not use the air circulator and consult a qualified electrician or a Meaco approved engineer. The operator must make the operating instruction available for the user and make sure that the user understands the manual. - Page 5 Declaration of conformity Hereby, Meaco declares that this radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements. The full text of the EU declaration of conformity and the UK declaration of conformity is available at the following internet address: www.meaco.com/pages/compliance-data.
-
Page 6: Register Your Meaco Warranty
Register your Meaco warranty Your Meaco air circulator comes with a free three year warranty. Simply register your details online and you’ll be covered for parts and labour for three years from the date of purchase, subject to the terms and condition of the warranty. -
Page 7: Meaco App
3. The air circulator will beep and a Wi-Fi symbol will flash on the display. 4. In the Meaco app, press the + button in the top right hand corner and then ‘Add device’. 5. The app will search for nearby devices and your air circulator will appear, click ‘Add’. -
Page 8: What's Included
Carefully unpack the air circulator. Keep all packaging materials away from children. We recommend flat packing and keeping hold of the box should you need it in the future. 1. Meaco Sefte® 10” Pro Table Air Circulator 2. Mains adaptor 3. -
Page 9: Product Identification
Product identification 1. Front grill 8. Battery compartment cover 2. Locking cap 9. Mains adaptor input 3. Blades 10. Battery compartment cover release button 4. Display 11. Remote control 5. Interface 12. Mains adaptor 6. Handle 7. Back grill [EN]... -
Page 10: Operation
Operation When the air circulator is plugged into the mains, the air circulator will beep once, the air circulator is in Standby mode. Interface Power button: Press the power button once to turn the air circulator on and press the power button again to turn the air circulator off. - Page 11 Increase fan speed: Press the + fan speed button to increase the fan speed between 1 and 12. When 12 is reached, pressing this button again will take you back to 1. Decrease fan speed: Press the - fan speed button to decrease the fan speed between 1 and 12.
- Page 12 • The remote control has a range of approximately 4 metres. The following functions are only available via the remote control or the Meaco app. For instructions on how to use Power button, Mode, Fan speed, Oscillation or Pause buttons, see pages 7 and 8.
-
Page 13: Battery Mode
Battery mode The air circulator can be used in battery only mode, meaning the mains adaptor is not required. • Battery not included. • Battery type required: 9200 mAh Li-ion rechargeable battery. Battery installation 1. Press the button on the right hand side of the air circulator to release the lid. 2. - Page 14 Battery status Above the power button on the air circulator interface is a LED light showing the battery status. Please note the LED display will not be visible when the device is on night mode. Solid white Fully charged Flashing white Charging - less than 100% charge Solid red Less than 20% charge...
-
Page 15: Maintenance
Battery disclaimer Lithium-ion batteries are designed to go through a continuous cycle of being recharged - if this happens consistently they will continue to perform at their best. If the battery is not recharged for a period of more than 3 months the battery performance will reduce by 50%. Due to the nature of our products, it is more than likely the battery will not be recharged over the winter period and therefore suffer a performance decrease. - Page 16 Replacing the remote control battery If the remote control fails to work within 4 metres of the air circulator, replace the battery. Battery type: CR2025 or CR2032. To replace the battery follow the steps below: 1. Push the safety release (below the Mode button) with the end of a paper clip to release the battery compartment.
-
Page 17: Storing
Store the air circulator in a clean, dry place in its original box. Alternatively, a custom storage bag can be purchased from meaco.com. Tip! The air circulator can also be used in winter to help distribute warm air more effectively within a room. -
Page 18: Meaco Customer Care
Meaco customer care If you have a question about your Meaco air circulator, contact our Customer Service team who will be happy to help. Make sure you have your serial number and details of where and when you purchased your air circulator. -
Page 19: Warranty Terms & Conditions
2. If your air circulator has been opened or tampered with or not genuine components have been fitted by yourself or anyone other than a Meaco engineer, your warranty is invalid. This does not include removing the air circulator grill to clean the fan blades. - Page 20 Version: SA01 Meaco (U.K.) Limited Meaco House, Parklands, Railton Road, Surrey GU2 9JX meaco.com...
