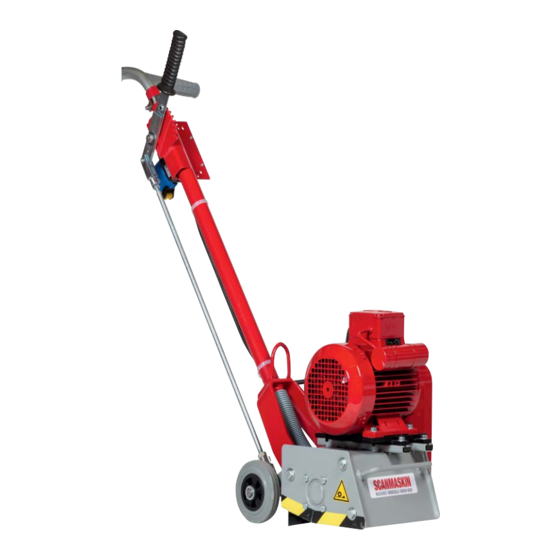

- Page 1 FEROX 200 MANUAL...
- Page 2 Dear Customer! Thank you for choosing Scanmaskin as your supplier. We wish you all the best with your new Ferox 200 and hope that it meets your expectations. Scanmaskin Sweden AB Per-Anders Bardh Address: Scanmaskin Sweden AB Box 187 SE-437 22 Lindome / Gothenburg...
- Page 3 This machine is primarily designed for the removal of paint, heavy rust, scale and for the removal of laitance from concrete from floor areas. If Ferox 200 is used for other purposes or handled in ways other than that described in this User Guide, Scanmaskin Sweden AB disclaims all responsibility.
-
Page 4: Table Of Contents
Starter box wiring diagram and components 415v ................26 Trouble shooting ..........................27 Technical specifications ........................28 Warranty ............................29 EC Declaration ..........................30 Contact information ......................... 31 www.scanmaskin.com... -
Page 5: Operation
Do not lift this machine manually. IMPORTANT: When fitted with the petrol engine, AVOID TIPPING THE FEROX 200 BACKWARDS, especially when hot; the engine oil can run past the piston and into the combustion chamber causing the piston to “hydraulic lock”... -
Page 6: Risk Of Hand-Arm Vibration Injury
Heat-treated steel cutters used for the removal of paint and coatings from floor areas, but with a shorter life span that TCT Cutters, not as aggressive as Star Cutters. Can be used for the general removal of dirt and ice deposits. Produces a fine texture on concrete surfaces and slight marking on steelwork. www.scanmaskin.com... - Page 7 FEROX 200 ENGLISH MILLING Flat tungsten carbide cutters for the removal of thermo-plastic road and runway markings. Very efficient and cost effective with none of the problems associated with burning off. These can also be used for the removal of bituminous and rubber deposits.
-
Page 8: Maintenance
(at the “back” of the drum), this is “Position 1” For ease of assembly, mark the end of the drum to help identify each flail shaft, rotate the drum away from you marking each position in order. 1,2,3,4. www.scanmaskin.com... -
Page 9: Pre-Start Check (Daily)
Electric Models; The Ferox 200 is supplied with a specially commissioned electric motors and starter switch assembly. Each unit is fully tested and the overload relays have been calibrated and set according to the manufactures specifications. In the event of malfunction on a new machine, the owner should first check that the power supply on site is suitable and adequate. -
Page 10: Starting Petrol Engines
Do not pull the recoil starter cord to the end of is travel as it may cause damage to the engine or injury to the operator. When the engine starts, recoil the cord slowly. Do not allow the cord to snap back to its start position. www.scanmaskin.com... -
Page 11: Starting Electric Motors
FEROX 200 ENGLISH Pull the recoil starter cord handle. On the 5.5hp engine, after the engine starts, open the choke approximately halfway, or until the engine runs smoothly. Warm the engine up for at least 3~4 minutes at the half open throttle setting. Fully open the choke once the engine is sufficiently warm, this will take longer during particularly cold weather. -
Page 12: Machine Operation
The Ferox 200 is normally used in a forward motion; the rotation of the drum also helps with the natural drive produced during it operation. The operator can vary the speed of travel to determine the final finish having already set the depth control. -
Page 13: Shut Down
FEROX 200 ENGLISH Shut Down Raise the cutters by releasing the handle adjustment lever and lifting the handle, then re-clamp the handle. Air Motors versions, turn the tap on the lubricator anti-clockwise until at right angles to the lubricator. If the task has been completed, switch off the air supply at the main supply, then open the tap on the lubricator to discharge the stored air in the hose. -
Page 14: Maintenance & Machine Storage
Generally when the motor is started and run a tight belt can be detected by a low hum or whistle. Warning: Never operate the Ferox 200 without a belt guard. All fastenings should be checked daily for tightness and the drive belt for tension. - Page 15 Worn Drum Cutters . Replace Cutters. Loose or a failed Replace Belts and adjust drive belt. tension. Surface too rough. Use Scanmaskin Ferox 300 scarifier to increase production. Low air supply or air Requires a minimum of pressure 160cfm @ 90psi...
- Page 16 See section Safety head/engine seized Precautions Use above information in conjunction with the engine manufacturers Operation and Maintenance Manual. If problem has not been cured by above actions, contact your local Trelawny agent or engine manufacturer for advice or rectification. www.scanmaskin.com...
-
Page 17: Exploded View
FEROX 200 ENGLISH 3 Exploded view Note: See Parts List for later side plate bearing version and Drive Shaft www.scanmaskin.com... -
Page 18: Parts List
End plate 320.9138 Belt guard 320.0020 12mm Flail 320.9126A Petrol engine pulley retaining 320.5500 TCT Cutter washer 320.9127A Electric pulley retaining washer 320.5120 Beam cutter 325.9124 Drive pulley retaining washer 320.3658 Star cutter 320.9137 Drive belt 320.5600 Full milling cutter www.scanmaskin.com... - Page 19 FEROX 200 ENGLISH 320.9131 Driven pulley key 320.5650 Half milling cutter 320.9128 Driven pulley 320.9610 Wire brush (crimped) 320.9126 Petrol engine drive pulley 320.9620 Wire brush (twisted knot) 320.9127 Electric motor drive pulley 320.4140 Spacer 320.9110D Swinging arm spindle 320.00SK M6 drum screw set (inc, bolts &...
- Page 20 Overload Relay 230v only (RW27D17) 841.2640B Contactor (CWM18.10 230v Others only) 320.7132 230v Panel Mounting Plug 320.9805 Deadmans Handle Assembly (Blue) (prior 11.2009) 345.9805 Deadmans Handle Assembly (after 11.2009) 320.9300 M5 x 50 Screws for Deadmans Handle x 2 required www.scanmaskin.com...
- Page 21 FEROX 200 ENGLISH 320.9305 M5 Nyloc Nuts for Deadmans 415v WEG Starter Box Components Handle x 2 required 841.2642 230v/415v Starter Box & Lid 320.9310 M5 Plain Washer x 4 required inc Buttons 841.2106 415v Panel Mounting Plug 320.9150 Spacer Plate (Electric) x 2...
-
Page 22: Electric Motor Exploded View
4 Electric motor Exploded View Only the most commonly used motor components are carried in stock at Scanmaskin. These items are listed under the motor heading in the parts list on the previous page. www.scanmaskin.com... -
Page 23: Wiring Diagrams
FEROX 200 ENGLISH 5 Wiring diagrams www.scanmaskin.com... - Page 24 www.scanmaskin.com...
-
Page 25: Starter Box Wiring And Components 110V & 230V
FEROX 200 ENGLISH 6 Starter box wiring and components 110v & 230v www.scanmaskin.com... -
Page 26: Starter Box Wiring Diagram And Components 415V
7 Starter box wiring diagram and components 415v www.scanmaskin.com... -
Page 27: Trouble Shooting
See section. 1 - Safety Precautions. Use above information in conjunction with the engine manufacturers Operation and Maintenance Manual. If problem has not been cured by above actions, contact your local Scanmaskin agent or engine manufacturer for advice or rectification. www.scanmaskin.com... -
Page 28: Technical Specifications
Noise LpA SPL 95.06dB (A) LwA SWL 109.5dB (A) Declared Noise emissions in accordance with EN ISO 15744: 2008 Vibration (AEQ) at the Handle 5.71 m/s2 (K= +40% Bar (Pram Handle) -0%) Fixed Handle (Primary position) Fixed Handle (Secondary position) www.scanmaskin.com... -
Page 29: Warranty
ENGLISH 10 Warranty This product from Scanmaskin Sweden AB comes with a twelve month warranty. If the product does not function satisfactorily during this period, Scanmaskin will return the product to full working order for normal use which the product is intended for – with no charge for labor or spare parts, according to the following conditions: 1. -
Page 30: Ec Declaration
11 EU Declaration Declaration of CE conformity Manufacturer Scanmaskin Sweden AB Address Heljesvägen 10 427 36 Lindome / Gothenburg Sweden Product Scarifier Product name Ferox 200 Serial number _______________ The product conforms with the following EU guidelines Machine directives 2006/42/EC... -
Page 31: Contact Information
FEROX 200 ENGLISH 12 Contact information Sweden (Head Office) Heljesvägen 10 Box 187 SE- 437 22 Lindome Phone: +46 (0) 31 99 49 70 Fax: +46 (0) 31 99 48 70 Email: info@scanmaskin.se Website: www.scanmaskin.se Denmark Torvegade 22 DK-7330 Brande... - Page 32 SCANMASKIN SWEDEN AB Huvudkontor / Head offi ce Box 187 SE-437 22 Lindome Phone: +46 (0)31- 99 49 70 Fax: +46 (0)31- 99 48 70 Email: info@scanmaskin.com Besöksadress / Visiting address Heljesvägen 10 SE-437 36 Lindome www.scanmaskin.com...
