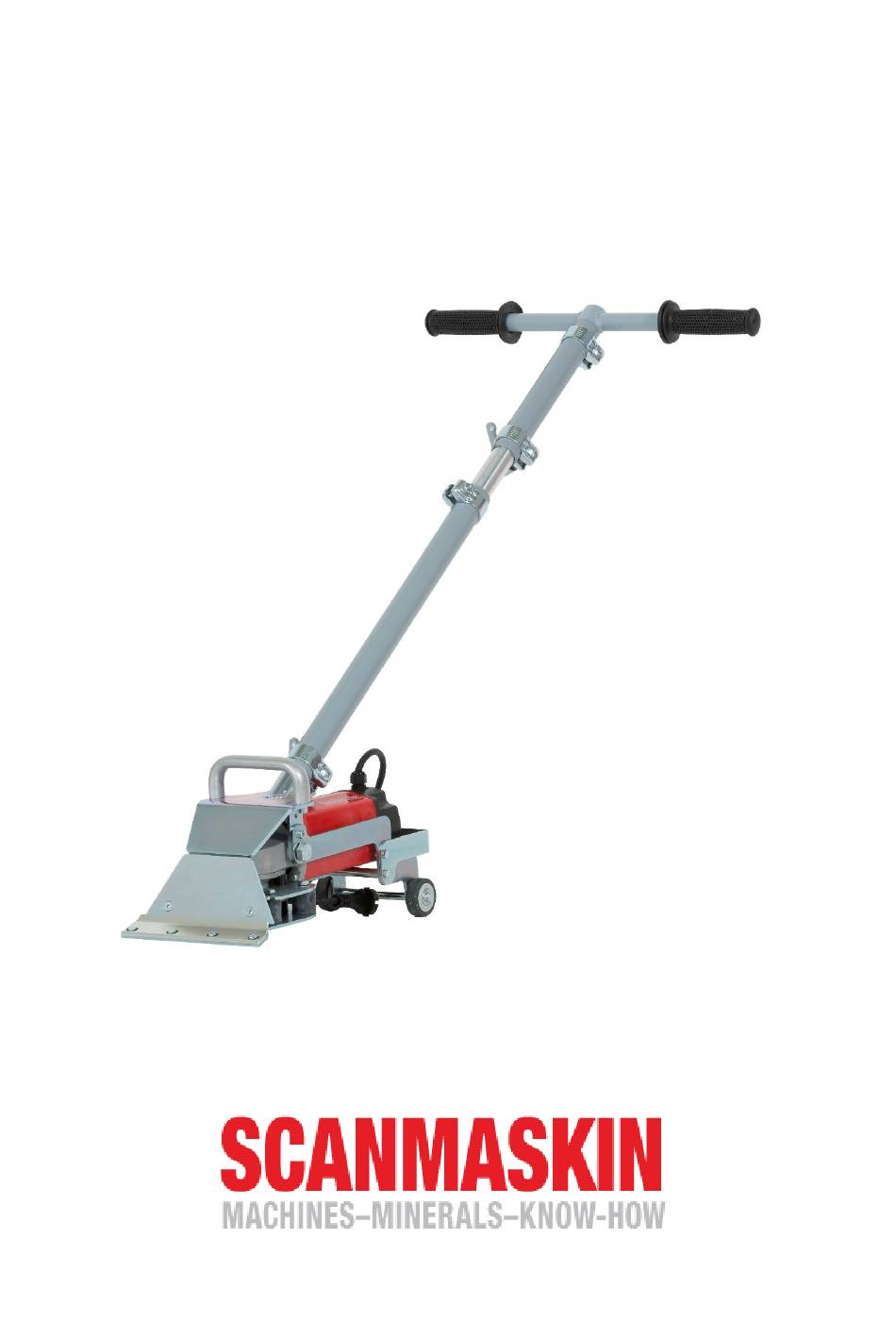

- Page 1 Multistripper mini Manual www.scanmaskin.com...
- Page 2 Multistripper mini – Manual Dear Customer! Thank you for choosing Scanmaskin as your supplier. We wish you all the best with your new Multistripper mini and hope that it meets your expectations. Scanmaskin Sweden AB Paulo Bergstrand Managing Director Address:...
- Page 3 This User Guide only concerns the floor stripper machines “Multistripper mini” approved by Scanmaskin Sweden AB. If Multistripper mini is used for other purposes or handled in ways other than that described in this User Guide, Scanmaskin Sweden AB disclaims all responsibility.
-
Page 4: Table Of Contents
Multistripper mini – Manual Table of Contents Primary notes ............................5 General notes for the operator ...................... 5 Description of the Multistripper mini ..................5 Storage ............................5 Conformity ........................... 5 Description ........................... 6 Accessories ........................... 6 Safety notes ............................7 General information ........................ -
Page 5: Primary Notes

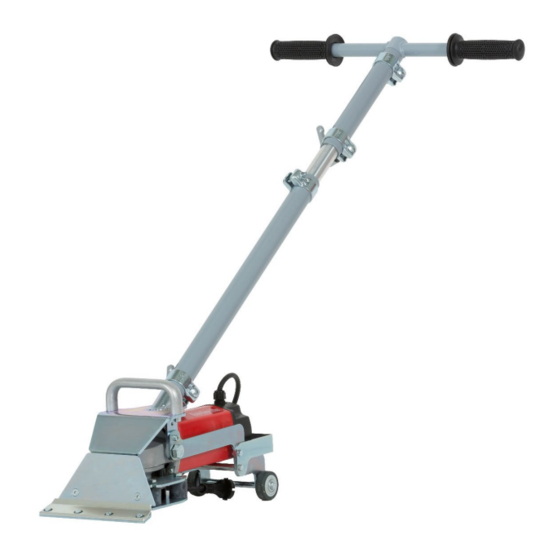

Description of the Multistripper mini The Multistripper mini is used for removing pasted flooring coverings like PVC,-CV-, lino and carpeting floorings. The blade is eccentric propelled; thus, the blade peels the flooring covering from the concrete. -
Page 6: Description
Standard accessories: 1 x Blade 60mm x 210 mm, Art. No. 17.14580 1 x Metal holder for conversion to Handstripper Optional accessories: Blade for Multistripper mini "plus", Art. No. 17.14581 Special blade 60mm x 210mm hardened, 1,5mm thick Blade 130mm x 210mm, Art. No. 17.14590, long execution for softer floors U-blade 60mm x 210mm, Art. -
Page 7: Safety Notes
2.3 Dangerousness of the machine The Multistripper mini was designed and produced for its intended use in accordance with the latest basic safety and health regulations. -
Page 8: Prerequisites For The User
Multistripper mini – Manual Warning, Danger of electrical shocks. Do not use damaged lines and plugs. The machine may be operated only in a technically flawless condition and with all safety facilities fully operational. 2.5 Prerequisites for the user The users of the machine are required to •... -
Page 9: Safety Notes Noise
Multistripper mini – Manual Switch off and disconnect the machine for maintenance and repair Never use the machine with a defective cable; this can lead to an electric shock. Do not pull the machine at the cable. Use only intact plugs and cables. -
Page 10: General Instructions For The User
3 General instructions for the user 3.1 Scope of delivery Itm Description Article no. 1 Multistripper mini Roll with T-handle 17.14575 2 1 x blade 60mm x 210mm (dismounted) 17.14580 3 Wrench 10-13 67.00315 4 Metal holder for conversion to Handstripper (demounted) 42.02065... -
Page 11: Dimensions / Weight / Technical Details
Multistripper mini – Manual Metal holder for conversation to 42.02065 Handstripper (demounted) Operation Manual 3.2 Dimensions / Weight / Technical details Total weight: 14,3 kg Technical details: Rotation: 6600 rpm Power: 2200 W Voltage: 230 V (120 Volt) Working width:... -
Page 12: Preparation Of The Subsurface
Before placing the machine cut the floor in stripes, pay attention to the working width of the Multistripper mini of 210mm. In the case of strong pasted floors, cut it in more narrow stripes. As far as possible please remove the floor covering with the clamp (17.13630) We recommend removing a first stripe in the middle of the room, where you can place the Multistripper mini. -
Page 13: Cleaning And Maintenance
Multistripper mini – Manual Scanmaskin has planned maintenance and repair works for the Multistripper mini. Only the activities that have been described below can be applied. When doing so, it is imperative to keep the default and the described procedures. The application of original spare parts guarantees the dependable utilization of the machine in the future. -
Page 14: Annex E: Spare Parts List
Multistripper mini – Manual • Any work performed on the electrical equipment may be carried out by skilled electricians only. • The utilisation of original parts guarantees the necessary technical specifications. Caution! Material damages are possible! The works have to be done carefully and with suitable tools, so that no other parts of the machine are damaged during the possible slipping of the tool. -
Page 15: Exploded Drawing - Attached Parts
Multistripper mini – Manual 8.2 Exploded drawing – Attached parts - 15 -... -
Page 16: Spare Parts List - Attached Parts
Multistripper mini – Manual 8.3 Spare parts list – Attached parts Itm.Article no Description Quant. 4202055 Exzenterwelle 4202026 Distanzbüchse 4202002/1 Anschraubplatte 4005100 Vibrationsgummi 4004000 Ausgleichsgewicht 4003100 Kugellager in Oberflansch 4003000 Oberflansch 4202006 Unterplatte gebogen 4202060 Unterflansch geschlossen 4202019 Abweisplatte 4006100 Kugellager in Unterflansch 4202018 Messerklemmplatte 4008100 Scheibenfeder für Welle (Rundkeil) -
Page 17: Exploded Drawing - Handle
Multistripper mini – Manual 8.4 Exploded drawing – Handle Itm. Article no. Description Quant. 4009010 Deichselrohr geschlitzt 7777777 Deichselrohr geschlitzt (kurz) 4009012 Innenverlängerung 4009040 T-Griff (geschweißt) 4009018 Gummihandgriff schwarz 4200860 Bandschelle mit Schraube + Mutter 4200870 Klemmhebel verstellbar - 17 -... -
Page 18: Exploded Drawing - Handle For Handstripper
Multistripper mini – Manual 8.5 Exploded drawing – Handle for handstripper Itm. Articale no. Description Quant. 4202065 Handgriffaufnahme Bully Handgriff mit Körper 4200862+ (Verwendung von Pos. 4009018 (1) aus Pos.55 5620612 Inbusschraube 5640601 Mutter 5630820 Sechskantschraube - 18 -... -
Page 19: Warranty
Multistripper mini – Manual 9 Warranty This product from Scanmaskin Sweden AB comes with a twelve month warranty. If the product does not function satisfactorily during this period, Scanmaskin will return the product to full working order for normal use which the product is intended for – with no charge for labor or spare parts, according to the following conditions: 1. -
Page 20: Eu Declaration
Multistripper mini – Manual 10 EU Declaration Declaration of CE conformity Manufacturer Scanmaskin Sweden AB Address Heljesvägen 10 427 36 Lindome / Gothenburg Sweden Product Stripper machine Product name Multistripper mini Serial number _______________ The product conforms with the following EU guidelines... -
Page 21: Contact Information
Multistripper mini – Manual 11 Contact information Sweden (Head Office) Heljesvägen 10 Box 187 SE-437 22 Lindome Phone: +46 (0) 31 99 49 70 Fax: +46 (0) 31 99 48 70 E-mail: info@scanmaskin.se Website: www.scanmaskin.se Denmark Torvegade 22 DK-7330 Brande...
