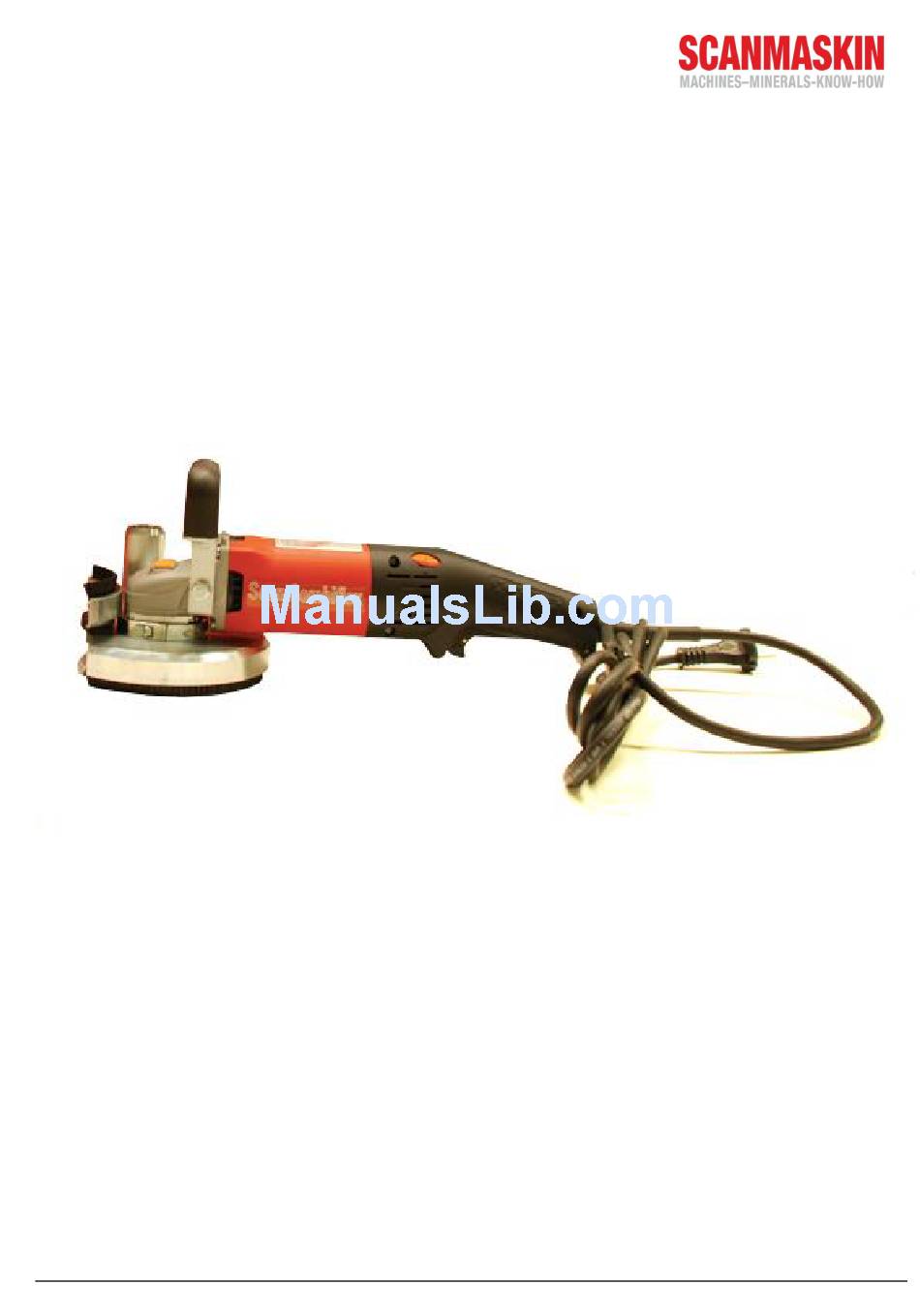

- Page 1 Operation manual / Spare parts list Scan Combiflex Handyman 125 Scan Combiflex Handyman Manual...
-
Page 2: Table Of Contents
Operation manual / Spare parts list Scan Combiflex Handyman 125 Index Preliminary notes General notes for the operator Guarantee Safety notes General information Designated use Prerequisites for the user Danger by improper use of the machine Warning, danger by electric surge... -
Page 3: Preliminary Notes
Operation manual / Spare parts list Scan Combiflex Handyman 125 Preliminary notes Dear customer, you have decided for the SC Handyman 125, the correct choice for quality and performance. Your SC Handyman 125 is the result of the logical conversion of long-standing experience. -
Page 4: General Notes For The Operator
Operation manual / Spare parts list Scan Combiflex Handyman 125 The operation manual identify important notes on safety and damage prevention using the following symbols: Warning! Designates a potentially hazardous situation. Please note that failure could cause death or injuries. -
Page 5: Guarantee
Operation manual / Spare parts list Scan Combiflex Handyman 125 Guarantee and liability Scanmaskin Sweden AB ensures a guarantee and liability are in accordance with our currently valid general business and sales conditions. The guarantee runs out after 12 months from purchase date. -
Page 6: Safety Notes
Operation manual / Spare parts list Scan Combiflex Handyman 125 General information Adherence to the safety notes helps to protect against injuries and reduces the risk of an improper utilization of the machine. Every user of this machine and personnel charged with the assembly, maintenance or repair of this machine must have read and understood the contents of the instructions prior to starting any work. -
Page 7: Security And Machine Protection Facilities
Operation manual / Spare parts list Scan Combiflex Handyman 125 Hold the machine with both hands. Warning, break danger! Do not throw the machine and do not transport it unfastened on loading area. SC Handyman 125 is build and conceived under observance and attention of the basic security standards and health standards. -
Page 8: Safety Notes: Noise
Operation manual / Spare parts list Scan Combiflex Handyman 125 The dust is sucked off by the vacuum system. Despite of this, it is impossible to prevent fine and finest concrete dust from being generated during the operation of the machine. -
Page 9: Scope Of Delivery
Operation manual / Spare parts list Scan Combiflex Handyman 125 1. SC Handyman 125 (Article. 510060) 2. Diamond disc 125 mm, two-rowed (Article 510038) 3. Metal case (Article 510095) 4. Wrench 5. Operation manual / Spare parts list Note! Control the completeness of the delivery according to chapter "Scope of delivery" and complain a faulty delivery immediately to your trader. -
Page 10: Disposal
Operation manual / Spare parts list Scan Combiflex Handyman 125 Disposal The disposal of the packaging and the electric accessories is carried out according to the regulations for the handling with rubbish. The cardboard is usable again and can be used as a camp container. We recommend keeping the cardboard for possible back delivery for continuous examination according to. -
Page 11: Operation
Operation manual / Spare parts list Scan Combiflex Handyman 125 Version SC Handyman 125 Type of current Single phase, alternating current Voltage 230 V / 50-60 Hz Power motor 1530 Watt Speed 3400 - 8000 rpm Diamond disc Ø 125 mm... -
Page 12: Starting The Machine
Operation manual / Spare parts list Scan Combiflex Handyman 125 Operation steps: 1. Switch off the machine and separate the connection cable from the mains. 2. Turn the machine so that the bottom becomes visible. 3. Fix the spindle with the locking button against turn. -
Page 13: Vacuum System
Operation manual / Spare parts list Scan Combiflex Handyman 125 During operation never increase the speed of the machine to above that of the maximum admissible speed of the grinding tool! Switch-on 1. Plug in mains connector. 2. Hold the machine firmly with both hands. -
Page 14: Adjusting Possibilities At The Vacuum Housing
Operation manual / Spare parts list Scan Combiflex Handyman 125 Adjusting possibilities at the vacuum housing The vacuum housing can be adapted by the axial adjusting possibility to the ground. This is necessary because: 1. the brush wears out by the constant contact to the ground, 2. -
Page 15: Maintenance And Repair
Operation manual / Spare parts list Scan Combiflex Handyman 125 Maintenance and repair General information The device needs no special care, but after a certain time one must control the parts which are subjected to a wear. Moreover we count the control and exchanging the brushes and also the smearing in the gearbox. -
Page 16: Drawing Motor
Operation manual / Spare parts list Scan Combiflex Handyman 125 Drawing Motor... - Page 17 Operation manual / Spare parts list Scan Combiflex Handyman 125 Pls. order with item no! Item Article Description Quantity...
- Page 18 Operation manual / Spare parts list Scan Combiflex Handyman 125...
-
Page 19: Drawing Vacuum System
Operation manual / Spare parts list Scan Combiflex Handyman 125 Drawing Vacuum system... -
Page 20: Spare Parts List Vacuum System
Operation manual / Spare parts list Scan Combiflex Handyman 125 Spare parts list Vacuum system Item Article Description Quantity... -
Page 21: Drawing U-Handle
Operation manual / Spare parts list Scan Combiflex Handyman 125 Drawing U-Handle Spare parts list U-Handle Item Article Description Quantity Ordering address: Address your spare parts order to: Scanmaskin Sweden AB Phone +46 (0) 31-994970 Box 187 +46 (0) 31-994870... - Page 22 Operation manual / Spare parts list Scan Combiflex Handyman 125 Declaration of conformity We declare ourselves solely responsible for this products conforming with the following standards or standardized documents: EN ISO 12100; EN 60745, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3.
-
Page 23: Contact Information
Operation manual / Spare parts list Scan Combiflex Handyman 125 Contact information Sweden (Head Office) Heljesvägen 10 Box 187 SE-437 22 Lindome Phone: +46 (0) 31 99 49 70 Fax: +46 (0) 31 99 48 70 E-mail: info@scanmaskin.se Website: www.scanmaskin.se...
