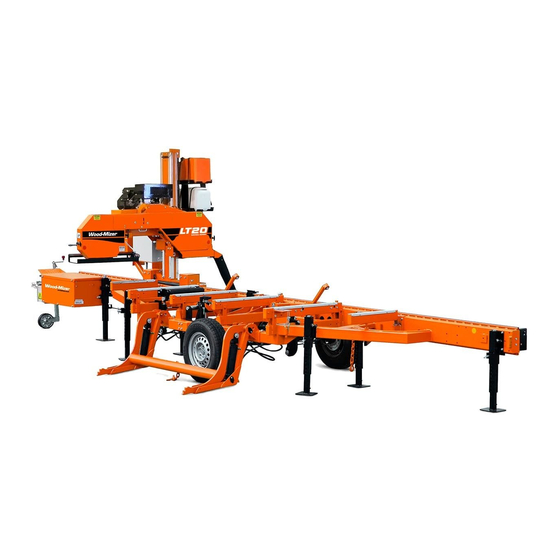

Wood-Mizer
Sawmill
Safety, Setup, Operation
& Maintenance Manual
LT20 Series AC MH
rev. B2.04
Safety is our #1 concern! Read and understand all
!
safety information and instructions before operating,
setting up or maintaining this machine.
April 2003
Form #614

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sawmill LT20 AC MH Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wood-mizer Sawmill LT20 AC MH Series

Summary of Contents for Wood-mizer Sawmill LT20 AC MH Series

  • Page 1 ® Wood-Mizer Sawmill Safety, Setup, Operation & Maintenance Manual LT20 Series AC MH rev. B2.04 Safety is our #1 concern! Read and understand all safety information and instructions before operating, setting up or maintaining this machine. April 2003 Form #614...
  • Page 2 +48-63-2626000. From the continental U.S., call our toll-free Parts hotline at 1-800-448-7881. Please have the vehicle identification number and your customer num- ber ready when you call. Wood-Mizer will accept these methods of payment: • Visa, Mastercard, or Select Purchase •...
  • Page 3 Sawmill and Customer Identification Each Wood-Mizer sawmill has a 17-digit Vehicle Identification Number (VIN). See the fig- ure below for VIN locations. See the chart for VIN description. V.I.N. LOCATIONS. F9 017 F9 .01 V.I.N. DESCRIPTION...
  • Page 4 Each sawmill is also identified with a model number which includes the base model and the engine/motor configuration. See the figure for a description of the model number. LT20 Engine/Motor Basic Sawmill I.D. Configuration MODEL NUMBER DESCRIPTION. When you pick up your mill, you will receive a customer number. Both the VIN and your customer number expedite our service to you.

  • Page 5: Table Of Contents

    Table of Contents Section-Page SECTION 1 SAFETY & GENERAL INFORMATION Blade Handling......................1-2 Sawmill Setup......................1-3 Sawmill Operation..................... 1-4 Sawmill Maintenance ....................1-6 Belt Sizes ........................1-7 Blade Sizes ........................ 1-7 Cutting Capacity......................1-8 Engine/Motor Specifications ..................1-9 Overall Dimensions ....................1-10 1.10 Chains ........................
  • Page 6 Table of Contents Section-Page SECTION 3 MAINTENANCE Wear Life........................3-1 Blade Guides ......................3-2 Sawdust Removal ...................... 3-2 Carriage Track, Wiper & Scrapers ................3-3 Vertical Mast Rails ....................3-4 Miscellaneous ......................3-5 Blade Tensioner......................3-6 Blade Wheel Belts ..................... 3-6 Drive Belt Adjustment ....................
  • Page 7 It is always the owner's responsibility to comply with all applicable federal, state and local laws, rules and regulations regarding the ownership, operation and towing of your Wood-Mizer sawmill. All Wood-Mizer mill owners are encouraged to become thoroughly familiar with these applicable laws and comply with them fully while using or towing the mill.

  • Page 8: Safety & General Information Blade Handling

    Safety & General Information Blade Handling Blade Handling DANGER! Always disengage the blade and shut off the sawmill engine before changing the blade. Failure to do so will result in serious injury. WARNING! Always wear gloves and eye protection when handling bandsaw blades.

  • Page 9: Sawmill Setup

    Safety & General Information Sawmill Setup Sawmill Setup WARNING! Chock the trailer wheels to prevent movement before unhitching it from the towing vehicle. Failure to do so may result in serious injury or death. WARNING! Failure to put front outrigger down before moving cutting head from the rest position may result in serious injury.

  • Page 10: Sawmill Operation

    Safety & General Information Sawmill Operation Sawmill Operation DANGER! Make sure all guards and covers are in place and secured before operating or towing the sawmill. Failure to do so may result in serious injury. Be sure the blade housing and pulley covers are in place and secure.
  • Page 11 Safety & General Information Sawmill Operation WARNING! Always make sure log is clamped securely before sawing. Failure to do so may result in serious injury or death. WARNING! Use ONLY water with the water lube accessory. Never use flammable fuels or liquids. If these types of liquids are necessary to clean the blade, remove it and clean with a rag.

  • Page 12: Sawmill Maintenance

    Safety & General Information Sawmill Maintenance Sawmill Maintenance WARNING! Always secure the cutting head with a chain or a brace before adjusting the up/down chain. The cutting head may fall, causing severe injury or death. WARNING! Always secure the cutting head with a chain or a brace before adjusting the mast pads.

  • Page 13: Belt Sizes

    Blade Sizes See Table 1-2. Wood-Mizer TRU•SHARP™ offers three types of blades to provide efficient sawing for all models of sawmills. The engine/motor size of your sawmill and the type of wood you saw should determine which blade you choose for optimum performance.

  • Page 14: Cutting Capacity

    Safety & General Information Cutting Capacity Cutting Capacity See Table 1-3. The log size capacities of the LT20 series sawmill are listed below. Max. Max. Diameter Length LT20 S 71 cm 5.1 m (16' 8") LT20 M 71 cm 6.4 m (21') LT20 L 71 cm 8,4m...

  • Page 15: Engine/Motor Specifications

    22 HP 3600 RPM 18HP Gasoline Kohler 18 HP TABLE 1-5 See Table 1-6. The noise levels of the Wood-Mizer sawmills are listed below. Idle Engaged Sawmill Equipped With Gas Engine 95 dB (A) 98 dB (A) Sawmill Equipped With Electric Motor 77.1 dB (A)

  • Page 16: Overall Dimensions

    Safety & General Information Overall Dimensions Overall Dimensions See Table 1-7. The overall dimensions of the LT20 series sawmill are listed below. Model Width Weight Weight Length Width Height Operating Position w/Trailer (Loading Arms Raised) LT20SG15 6.7 m 3.5 m 2,5 m 923 kg 1068 kg...

  • Page 17: Sawdust Extractor Specifications

    Safety & General Information Sawdust Extractor Specifications 1.11 Sawdust Extractor Specifications See Table 1-9. The dust extractor specifications are given below. Maximum Capacity 2300 m Collector Inlet Diameters (in 2x140 MM. front of fan) Motor Power 3 kwh Number of Sacks for Waste 2 pcs Total Capacity of Sacks 0,25 m...

  • Page 18: Components

    Safety & General Information Components 1.12 Components See Figure 1-1. The major components of the Wood-Mazer LT20 Series are shown below. FIG. 1-1 1-12 25doc092506 Safety & General Information...

  • Page 19: Lt20 Hydraulic Schematic (Sawmills With Optional Manual Hydraulic Loader)

    Safety & General Information LT20 Hydraulic Schematic (sawmills with optional manual hydraulic loader) 1.13 LT20 Hydraulic Schematic (sawmills with optional manual hydraulic loader) FIG. 1-2 HYDRAULIC SCHEMATIC. Log Loader Manual Hydraulic Pump FIG. 1-3 HYDRAULIC LAYOUT DIAGRAM. Safety & General Information 25doc092506 1-13...

  • Page 20: Lt20 Hydraulic Components

    Safety & General Information LT20 Hydraulic Components 1.14 LT20 Hydraulic Components Mfg. Part No. Manufacturer Wood-Mizer Description Part.# C1, C2 088680 Cylinder, CJ-S95-16-70/32/203 Hydraulic 090309 PUMP, PAM 014 2500 3L MANUAL 015487 T - connector 3/8 TABLE 1-9 1.15 LT20 M Hydraulic Hoses...

  • Page 21: Setup & Operation

    SETUP & OPERATION Stationary Sawmill Setup SECTION 2 SETUP & OPERATION Stationary Sawmill Setup Set up the mill on firm footing and level by eye. Fasten the mill to the floor to prevent any creep after prolonged use. A cement pad with 5/8” (16 mm) diameter anchor bolts is rec- ommended.
  • Page 22 SETUP & OPERATION Stationary Sawmill Setup 3830 2040 2790 LT20S MH Stationary Metric Dimensions* 1790 2620 1935 20_042c 2590 2820 LT20M MH Stationary Metric Dimensions* *All dimensions in millimetres FIG. 2-2 1. Unhook the carriage safety chain, located at the bottom of the vertical mast. 2.
  • Page 23 SETUP & OPERATION Stationary Sawmill Setup See Figure 2-3. Pivot End Rail Side Support Bed Rail Stop Block SM0130 FIG. 2-3 SETUP & OPERATION 25doc092506...

  • Page 24: Portable Sawmill Setup

    SETUP & OPERATION Portable Sawmill Setup Portable Sawmill Setup WARNING! Do not set up the mill on ground with more than incline. If setup on an incline is necessary, put blocks under one side of the mill or dig out areas for outrigger legs to keep mill level.
  • Page 25 SETUP & OPERATION Portable Sawmill Setup before operating sawmill or loading logs. 5. Use the power feed switch to move the cutting head toward the front or the rear end of the mill. Lower and set the remaining rear outriggers. 6.

  • Page 26: Middle Track Cover

    SETUP & OPERATION Middle Track Cover Middle Track Cover Before operating the sawmill do as follows: 1. Clean the upper and lower rails to remove any sawdust and rust preventives. 2. Unbolt and remove the middle track cover from its storage position. 3.

  • Page 27: Replacing The Blade

    SETUP & OPERATION Replacing The Blade Replacing The Blade DANGER! Always shut off the sawmill motor before chang- ing the blade. Failure to do so may result in serious injury. WARNING! Always wear gloves and eye protection when- ever handling bandsaw blades. Changing blades is safest when done by one person! Keep all other persons away from work area when changing blades.

  • Page 28: Tensioning The Blade

    SETUP & OPERATION Tensioning The Blade Tensioning The Blade See Figure 2-7. Turn the blade tension handle clockwise to compress the rubber spring and tension the blade. Check the blade tension occasionally when adjusting the cant con- trol or while cutting. As the blade and belts heat up and stretch, the blade tension will change.

  • Page 29: Tracking The Blade

    SETUP & OPERATION Tracking The Blade Tracking The Blade 1. Open the blade housing cover. 2. Turn the key switch to the ”H” position. 3. Manually spin one of the blade wheels until the blade positions itself on the blade wheels. 4.
  • Page 30 SETUP & OPERATION Tracking The Blade housing cover is in place and secured. DANGER! After aligning the blade on the wheels, always check the blade guide spacing and location. (See Section 5 for more information.) 2-10 25doc092506 SETUP & OPERATION...

  • Page 31: Starting The Motor

    SETUP & OPERATION Starting The Motor Starting The Motor See the appropriate manual supplied with your specific motor configuration for starting and operating instructions. IMPORTANT! When starting the machine for the first time, check that main motor rotation direction is as indicated by the arrow located on the motor body (fan guard).

  • Page 32: Loading, Turning, And Clamping Logs

    SETUP & OPERATION Loading, Turning, And Clamping Logs Loading, Turning, And Clamping Logs CAUTION! Make sure the pivot rails, turning arm, clamp, and toe boards are below bed level before loading a log onto the bed. Also, be sure the cutting head is moved far enough forward so the log does not hit it.
  • Page 33 SETUP & OPERATION Loading, Turning, And Clamping Logs 1. Use the log turner to rotate the log on the sawmill bed. 2. Spin the log against the side supports until it is turned the way you want it for the first cut. If you want to turn the log more, do the following steps.
  • Page 34 SETUP & OPERATION Loading, Turning, And Clamping Logs See Figure 2-9. Side Support Log Clamp FIG. 2-9 3. Make sure the side supports are positioned low enough for the blade to pass over them. If they are not, back the clamp off slightly and push the side supports down until they are positioned below the level of your first few cuts.

  • Page 35: Up/Down Operation

    SETUP & OPERATION Up/Down Operation Up/Down Operation 1. Install a blade and check for correct blade tension. (See Section 2.4). 2. Set the cutting head to the desired height. (The blade height scale shows the height of the blade above the bed rails.) See Figure 2-10.

  • Page 36: Blade Guide Arm Operation

    SETUP & OPERATION Blade Guide Arm Operation 2.10 Blade Guide Arm Operation 1. The outer blade guide should be adjusted so that it is about 1” (25.4 mm) from the log. 2. If necessary, use the blade guide arm crank to adjust the outer blade guide. Turn the crank clockwise to move the blade guide arm in, counterclockwise to move the arm out.

  • Page 37: Power Feed Operation

    SETUP & OPERATION Power Feed Operation 2.11 Power Feed Operation See Figure 2-12. The power feed system moves the carriage forward and backward by using two switches on the control panel. Carriage Forward Feed Rate Adjustment Carriage Reverse FIG. 2-12 Carriage Feed Rate The carriage feed rate switch controls the speed at which the carriage travels forward.
  • Page 38 SETUP & OPERATION Power Feed Operation NOTE: Always disengage the blade before returning the carriage and raise the carriage slightly to make sure the blade clears the log. The middle position (shown in the figure above) is the neutral position. The power feed switch is designed to return to the neutral position when released.
  • Page 39 SETUP & OPERATION Power Feed Operation heel of the blade is still on the log. Then bring the carriage back without adjusting the blade up. This lets you keep the blade at the current height setting so you can make the next blade height adjustment more quickly.

  • Page 40: Cutting The Log

    Cutting The Log 2.12 Cutting The Log The following steps guide you through normal operation of the Wood-Mizer sawmill. 1. Once the log is placed where you want it and clamped firmly, position the blade close to the end of the log.

  • Page 41: Edging

    1” (25.4 mm) thick boards, lower the carriage 1 1/16 - 1 1/8” (27-28.6 mm) for each board. 2.13 Edging The following steps guide you through edging boards on the Wood-Mizer sawmill. 1. Raise the side supports to ˝ the height of the flitches, or the boards that need to be edged.

  • Page 42: Blade Height Scale

    SETUP & OPERATION Blade Height Scale 2.14 Blade Height Scale See Figure 2-13. The blade height scale is attached to the cutting head frame. It includes: a blade height indicator an inch scale. Blade Height Quarter Indicator Scale Inch Scale FIG.
  • Page 43 SETUP & OPERATION Blade Height Scale The Quarter Scale See Table 2-1. Two quarter scales are provided with four sets of marks. Each set repre- sents a specific lumber thickness. Saw kerf and shrinkage allowance are included, but actual board thickness will vary slightly depending on blade thickness and tooth set. To choose which scale to use, determine what finished thickness you want to end up with.

  • Page 44: Water Lube Operation

    SETUP & OPERATION Water Lube Operation 2.15 Water Lube Operation See Figure 2-14. The Water Lube System keeps the blade clean. Water flows from a 5-gallon (18.9 liter) bottle through a hose to the blade guide where the blade enters the log.

  • Page 45: Preparing The Sawmill For Towing

    Preparing The Sawmill For Towing 2.16 Preparing The Sawmill For Towing The Wood-Mizer trailer package makes transporting your sawmill easy and convenient. To get your sawmill ready for towing, follow these instructions. 1. Move the cutting head to the front end of the sawmill. Raise the rear outriggers.
  • Page 46 SETUP & OPERATION Preparing The Sawmill For Towing CAUTION! Check to be sure that the carriage safety chain is secured before towing the sawmill. Failure to properly secure the cutting head can result in severe machine dam- age. Be sure the blade housing cover is in place and secured.

  • Page 47: Manual Toe Board

    SETUP & OPERATION Manual Toe Board 2.17 Manual Toe Board In many cutting operations, particularly cutting for grade, it is desirable to cut tapered logs parallel to the heart of the log. The optional toe boards allow the operator to lift either end of a log to parallel the heart to the path of the blade.
  • Page 48 SETUP & OPERATION Manual Toe Board See Figure 2-17. FIG. 2-17 4. Remove the toe board crank handle. Clamp the log against the side supports and make the desired number of cuts. When the log is rotated 180 degrees, lower the toe board so that the flat portion of the log now lies flat on the bed rails.
  • Page 49 SETUP & OPERATION Manual Toe Board CAUTION! While levelling, never place your hands under the log. CAUTION! Always be sure the toe boards are low- ered all the way before loading a log onto the bed. SETUP & OPERATION 25doc092506 2-29...

  • Page 50: Maintenance

    MAINTENANCE Wear Life SECTION 3 MAINTENANCE This section lists the maintenance procedures that need to be performed. The Short Interval Maintenance Schedule lists procedures that need to be performed every 4, 8 or 24 hours. The Maintenance Log lists procedures that need to be performed every 50, 100, 200,or 1000 hours.

  • Page 51: Blade Guides

    MAINTENANCE Blade Guides Blade Guides 1. Check the rollers for performance and wear every blade change. Make sure the rollers are clean and spinning freely. If not, rebuild them. Replace any rollers which have worn smooth or have become cone shaped. See The LT20 Parts manual for blade guide rebuild kits and complete roller assemblies.

  • Page 52: Carriage Track, Wiper & Scrapers

    MAINTENANCE Carriage Track, Wiper & Scrapers Carriage Track, Wiper & Scrapers See Figure 3-2. 1. Clean the upper and lower track rails to remove any sawdust and sap buildup every eight hours of operation. Lubricate the lower track rail by wiping it with Dexron III ATF. 2.

  • Page 53: Vertical Mast Rails

    MAINTENANCE Vertical Mast Rails Vertical Mast Rails Lubricate the vertical mast rails with WD40, clean and wipe them dry every 50 hours of operation. CAUTION! Never use grease on the mast rails as it will col- lect sawdust. MAINTENANCE 25doc092506...

  • Page 54: Miscellaneous

    MAINTENANCE Miscellaneous Miscellaneous 1. Apply a thin film of a lithium grease to the blade guide arm to help prevent it from rusting. 2. Lubricate the log turner (if equipped) with a lithium grease every fifty hours of operation. Lubricate the turner pivot points (e.g. with WD-40). 3.

  • Page 55: Blade Tensioner

    MAINTENANCE Blade Tensioner Blade Tensioner Grease the tensioner handle screw with a lithium grease every fifty hours of operation, but at least once a week. See Figure 3-3. Tensioner Handle Screw FIG. 3-3 Blade Wheel Belts 1. Check the blade wheel belts for wear every 50 hours of operation. Replace as needed. 2.

  • Page 56: Drive Belt Adjustment

    MAINTENANCE Drive Belt Adjustment Drive Belt Adjustment WARNING! Do not for any reason adjust the drive belts with the motor running. Doing so may result in serious injury. See Table 3-2. Check the drive belt tension after the first 20 hours, and every 50 hours thereafter.
  • Page 57 MAINTENANCE Drive Belt Adjustment 4. Tighten the four mounting bolts. Adjustment Nuts Mounting Bolts FIG. 3-5 DC Sawmills To tighten - turn the bolt clockwise, and to loosen - turn it counter-clockwise. Periodically check the belts for wear. Replace if the belt is damaged or worn. MAINTENANCE 25doc092506...

  • Page 58: Up/Down System

    MAINTENANCE Up/Down System 3.10 Up/Down System 1. Adjust the up/down chain tension as needed. Measure chain tension with the cutting head all the way to the top of the vertical mast. Secure the carriage with a chain at the top, or shim it underneath. Using the adjustment nut shown in Figure 3-6, adjust the chain tension so that there is 1”...
  • Page 59 MAINTENANCE Up/Down System 3. Loosen the four adjustment bolts shown below. Adjust the belt tension and tighten 20_012 Adjustment Bolts FIG. 3-7 the adjustment bolts. MAINTENANCE 25doc092506 3-10...

  • Page 60: Power Feed System

    MAINTENANCE Power Feed System 3.11 Power Feed System 1. Adjust the power feed chain as needed. WARNING! Always remove the key from the key switch before adjusting the chain. Failure to do so may result in serious injury. See Figure 3-8. Loosen the sprocket nut. To tighten the chain, move the sprocket to the Chain Tension Adjustment Sprocket...
  • Page 61 MAINTENANCE Power Feed System 2. If necessary, align the power feed motor pulley with the gear reducer pulley. WARNING! Remove the key from the key switch before adjusting the pulleys. Failure to do so may result in serious injury. See Figure 3-9. Keep the pulleys aligned to avoid premature V-belt and pulleys wear. FIG.
  • Page 62 MAINTENANCE Power Feed System 3. Adjust the power feed gear belt tension as needed. WARNING! Remove the key from the key switch before adjusting the belt tension. Failure to do so may result in serious injury. See Figure 3-10. Loosen the adjustment bolts shown below. Adjust the belt tension and 20_036 Adjustment Bolts...
  • Page 63 Troubleshooting Guide Sawing Problems SECTION 4 TROUBLESHOOTING GUIDE Sawing Problems PROBLEM CAUSE SOLUTION Blades Dull Quickly Dirty logs Clean or debark logs, espe- cially on entry side of the cut When grinding teeth, heating Grind just enough metal to too much and causing teeth to restore sharpness to the soften teeth.

  • Page 64: Troubleshooting Guide Sawing Problems

    Troubleshooting Guide Sawing Problems PROBLEM CAUSE SOLUTION Boards Thick Or Thin On Stress in log which causes log After log has been squared, Ends Or Middle Of Board. to not lay flat on the bed. take equal cuts off opposing sides.

  • Page 65: Electrical Problems

    Replace drum switch or remove control panel cover and clean and lubricate con- tacts NOTE: Use only contact grease supplied by Wood-Mizer. Drum switch spring broken. Manually move the power feed or up/down switch back to neutral or "off" position.
  • Page 66 Troubleshooting Guide Electrical Problems Up/Down Or Power Feed System overload or bind Correct problem. See Section Motors Overheat And Loose occurred. 4.3 Power Feed Problems. Power. Allow motor to cool before restarting. Normal operation factors Allow motor to cool before exceeded (eg: up/down con- restarting.

  • Page 67: Power Feed Problems

    Drum switch is dirty. Clean drum switch and lubricate Speeds Or Does Not Move with contact grease supplied by Until Speed Is Above Halfway Wood-Mizer. Mark. Drum switch contacts are bad Check that contacts are in good condition and positively close cir- cuit.
  • Page 68 Troubleshooting Guide Power Feed Problems PROBLEM CAUSE SOLUTION Power Feed Motor Overheats. Middle track oiler is dragging. Clean middle track oiler and lubricate with 30-weight oil or ATF (Automatic Transmission Fluid) such as Dexron II. Allow motor to cool before restarting. Ground is not level.

  • Page 69: Hydraulic Problems

    Troubleshooting Guide Hydraulic Problems Hydraulic Problems PROBLEM CAUSE SOLUTION You Can Actuate Any Hydrau- Carriage not positioned prop- Make sure carriage contact lic Handle, But Get No erly to provide power to the bracket is adjusted far enough Response From The Pump. pump forward for battery positive contact to touch 6ft.
  • Page 70 Troubleshooting Guide Hydraulic Problems Defective pump motor Remove motor from pump and inspect. Repair or replace as necessary You Can Get Response From Valve assembly switch con- Locate the valve switch at the the Pump By Actuating All tacts are not properly adjusted bottom of the valve assembly.
  • Page 71 Troubleshooting Guide Hydraulic Problems PROBLEM CAUSE SOLUTION Pump Motor Runs With Little Low fluid level Check fluid level. Add an Or No Response From The all-season hydraulic fluid such Cylinders as Amoco Rycon Oil MV or Mobil Multipurpose ATF (auto- matic transmission fluid) until level is 4 - 4 1/2"...
  • Page 72 Troubleshooting Guide Hydraulic Problems PROBLEM CAUSE SOLUTION Hydraulic Side Supports Go Dirt in sequence valve Remove sequence valves and Down Before Or At Same clean thoroughly with kero- Time As Log Turner sene. NOTE: Be sure to reas- semble the valve and install it in its original position on the cylinder Retainer in sequence valve...

  • Page 73: Engine/Motor And Drive Pulleys Alignment

    Troubleshooting Guide Engine/Motor and Drive Pulleys Alignment Engine/Motor and Drive Pulleys Alignment 1. Install the drive belt. 2. Use a straight edge to align the engine/motor pulley to the drive pulley. Also check that the engine pulley is within 1/8" square with the drive pulley. Loosen the engine mounting bolts and rotate the engine if necessary.

  • Page 74: Sawmill Alignment

    SECTION 5 SAWMILL ALIGNMENT Pre-Alignment Procedures The Wood-Mizer sawmill is factory aligned. This section includes instructions on how to realign the sawmill completely. Be scrupulous when performing all alignment steps as sawmill alignment determines the accuracy of your cuts. The alignment procedure should be performed approximately every 1500 hours of operation (sooner if you regularly trans- port the sawmill over rough terrain).

  • Page 75: Frame Setup

    SAWMILL ALIGNMENT Frame Setup Frame Setup Stationary sawmills should be setup on firm, level ground before proceeding with align- ment. Portable sawmills should also be setup on firm, level ground. : Adjust the two middle outriggers on the main frame tube down just enough to lift weight from the trailer tire.
  • Page 76 SAWMILL ALIGNMENT Blade Installation And Alignment Electric Sawmills: 1. Turn the key switch to the "H" position. 2. Open the blade housing cover. 3. Manually spin one of the blade wheels until the blade positions itself on the blade wheels. Gas Sawmills: 1.
  • Page 77 SAWMILL ALIGNMENT Blade Installation And Alignment position of the lever the blade brake is released and the drive belt is loosened. FIG. 5-2 5. Spin one of the blade wheels by hand until the blade positions itself on the blade wheels. Check the vertical alignment of the idle-side blade wheel.
  • Page 78 SAWMILL ALIGNMENT Blade Installation And Alignment [0.04"]). Do not let the teeth ride on the belt. SM0044D 3.0 mm (0.12”) ± 1 mm (0.04”) 4.5 mm (0.18”) 1 1/4" ± 1 mm (0.04”) Blade 1 1/2" Blade FIG. 5-3 To adjust where the blade travels on the idle-side blade wheel, use the cant control shown in Figure 5-1.

  • Page 79: Blade Wheel Alignment

    SAWMILL ALIGNMENT Blade Wheel Alignment Blade Wheel Alignment The blade wheels should be adjusted so they are level in the vertical and horizontal planes. If the blade wheels are tilted up or down, the blade will want to travel in the tilted direction.
  • Page 80 SAWMILL ALIGNMENT Blade Wheel Alignment See Figure 5-5. Use the vertical adjustment screws to adjust the drive-side blade wheel. To tilt the wheel, loosen the top adjustment screw one quarter turn. Loosen the jam nut on the bottom adjustment screw and tighten the screw. Tighten the top and bottom jam nuts. To tilt the wheel, loosen the bottom adjustment screw one quarter turn.
  • Page 81 SAWMILL ALIGNMENT Blade Wheel Alignment See Figure 5-6. Use the vertical adjustment screws to adjust the idle-side blade wheel. To tilt the wheel up, loosen the bottom adjustment screw one quarter turn. Loosen the jam nut on the top adjustment screw and tighten the screw. Tighten the top and bottom jam nuts.
  • Page 82 SAWMILL ALIGNMENT Blade Wheel Alignment 9. Check the position of the blade on the idle-side blade wheel. See Figure 5-7. The horizontal tilt of the blade wheel should be adjusted so that the gullet of an 1-1/4" blade is 3.0 mm out from the front edge of the wheel (± 1.0 mm). 150060 3.0 mm ±...
  • Page 83 SAWMILL ALIGNMENT Blade Wheel Alignment 10. Check the position of the blade on the drive-side blade wheel. The blade should be posi- tioned on the wheel as described for the idle-side blade wheel. Adjust the drive-side blade wheel if necessary. See Figure 5-9.

  • Page 84: Adjusting The Lower Track Rollers

    SAWMILL ALIGNMENT Adjusting The Lower Track Rollers Adjusting The Lower Track Rollers See Figure 5-10. Making these adjustments correctly will give you square cuts and accu- rate dimensions across the width of your boards. 1. Using the power feed switch, move the saw carriage so that the blade is positioned over the front pivot bed rail.
  • Page 85 SAWMILL ALIGNMENT Adjusting The Lower Track Rollers of the blade is 17" (400 mm) above the outside of the pivot rail support by actual mea- surement with a tape or ruler. See Figure 5-11. 17" (400 mm) to blade SM0137 FIG.
  • Page 86 SAWMILL ALIGNMENT Adjusting The Lower Track Rollers See Figure 5-12. Stop Screw FIG. 5-12 5-13 doc092506 SAWMILL ALIGNMENT...

  • Page 87: Adjusting Bed Rails To The Blade

    SAWMILL ALIGNMENT Adjusting Bed Rails To The Blade Adjusting Bed Rails To The Blade 1. Adjust the front pivot bed rail 90 to the main bed tube. 2. Move the cutting head to center the blade over the front pivot bed rail. 3.
  • Page 88 SAWMILL ALIGNMENT Adjusting Bed Rails To The Blade See Figure 5-14. FIG. 5-14 9. Loosen the bed rail clamping bolts and turn the adjustment bolts to move the bed rails to the blade if necessary. 10. Retighten the clamping bolts and adjustment bolts. 11.

  • Page 89: Blade Guide Arm Vertical Adjustment

    SAWMILL ALIGNMENT Blade Guide Arm Vertical Adjustment Blade Guide Arm Vertical Adjustment 1. Move the cutting head so that the blade guide arm is directly over a bed rail. 2. Adjust the blade guide arm out to within 1/2" (15 mm) of full open. 3.
  • Page 90 SAWMILL ALIGNMENT Blade Guide Arm Vertical Adjustment closed position. 7. The blade guide arm should be snug, but not too tight, in the rollers. You should be able to move it in and out with firm hand pressure. There should be no side-to-side play. 5-17 doc092506 SAWMILL ALIGNMENT...

  • Page 91: Carriage Backlash Removal

    SAWMILL ALIGNMENT Carriage Backlash Removal Carriage Backlash Removal Check the carriage for backlash every 200 hours of operation. If necessary, remove the backlash. See Figure 5-16. To check if the backlash is present, grasp the outside part of the saw FIG.
  • Page 92 SAWMILL ALIGNMENT Carriage Backlash Removal 2. Tighten the two adjustment bolts evenly to remove the backlash. Set Screws Nuts Adjustment Bolts FIG. 5-17 0,1 mm Set Screw Adjustment Bolt RYS. 5-18 3. Tighten the set screws and the nuts. CAUTION! Do not overtighten the adjustment bolts.

  • Page 93: Blade Guide Rope Adjustment

    SAWMILL ALIGNMENT Blade Guide Rope Adjustment Blade Guide Rope Adjustment Adjust the blade guide rope tension when it gets too loose and begins slipping. To do this, use the adjustment nuts shown in Figure 5-19. FIG. 5-19 SAWMILL ALIGNMENT doc092506 5-20...

  • Page 94: Blade Guide Arm Horizontal Adjustment

    SAWMILL ALIGNMENT Blade Guide Arm Horizontal Adjustment 5.10 Blade Guide Arm Horizontal Adjustment 1. Put the blade guide assembly back in the arm (if you took it out). Put the assembly back so that the flanged collar on the roller is about 3.0 mm (0.04") from the back of the blade when the arm is 15 mm (0.6") from full open.
  • Page 95 SAWMILL ALIGNMENT Blade Guide Arm Horizontal Adjustment See Figure 5-21. Adjustment Nuts Adjustment Nuts SM0066 FIG. 5-21 4. Adjusting the outside two rollers (furthest from the arm motor) inward will cause the flange to move away from the blade. 5. Adjusting the two outside rollers outward will cause the flange to move toward the blade. 6.

  • Page 96: Aligning The Blade Guides

    Aligning the Blade Guides 5.11 Aligning the Blade Guides Each Wood-Mizer sawmill has two blade guide assemblies that help the blade maintain a straight cut. The two blade guide assemblies are positioned on the cutting head to guide the blade on each side of the material being cut.

  • Page 97: Blade Deflection

    SAWMILL ALIGNMENT Blade Deflection 5.12 Blade Deflection Perform the following steps to achieve proper blade deflection with the blade guides. 1. Raise the carriage until the blade is 375 mm (15") above a bed rail. Measure the actual distance with a tape from the top of the rail to the bottom of the blade. 2.

  • Page 98: Blade Guide Vertical Tilt Adjustment

    SAWMILL ALIGNMENT Blade Guide Vertical Tilt Adjustment 5.13 Blade Guide Vertical Tilt Adjustment Check that the blade guide does not tilt the blade up or down. A Blade Guide Alignment Tool (BGAT) is provided to help you measure the vertical tilt of the blade. 1.
  • Page 99 SAWMILL ALIGNMENT Blade Guide Vertical Tilt Adjustment See Figure 5-24. Loosen jam nuts and turn screws to tilt roller up or down SM0070 FIG. 5-24 8. Move the carriage forward so the back end of the tool is over the bed rail. 9.

  • Page 100: Blade Guide Spacing

    SAWMILL ALIGNMENT Blade Guide Spacing 5.14 Blade Guide Spacing HINT: When adjusting blade guide spacing, loosen the top set screw and one side set screw only. This will ensure horizontal and vertical tilt adjustments are maintained when the set screws are retightened. 1.

  • Page 101: Horizontal Tilt Adjustment

    SAWMILL ALIGNMENT Horizontal Tilt Adjustment 5.15 Horizontal Tilt Adjustment 1. Finally, both blade guides must be tilted horizontally. Adjust the blade guide arm halfway See Figure 5-26. FIG. 5-26 2. Place the Blade Guide Alignment Tool against the face of the outer blade guide roller. 3.

  • Page 102: Horizontal Adjustment Of Side Supports

    SAWMILL ALIGNMENT Horizontal Adjustment of Side Supports 5.16 Horizontal Adjustment of Side Supports Logs and boards are clamped against the side supports when sawing. The sides sup- ports must be square to the bed to ensure square lumber. 1. Swing the side support down. 2.

  • Page 103: Vertical Adjustment Of Side Supports

    SAWMILL ALIGNMENT Vertical Adjustment of Side Supports 5.17 Vertical Adjustment of Side Supports 1. Place a flat board across the bed rails. 2. Swing a side support up so that it is vertical. 3. Pull back at the top of the support to eliminate slack as if a log were being clamped against it.

  • Page 104: Saw Head Tilt

    SAWMILL ALIGNMENT Saw Head Tilt 5.18 Saw Head Tilt As the blade enters a wide log or cant, the outside of the saw head will drop down slightly. To compensate for the drop, use the lower track roller horizontal nuts to raise the outside of the saw head 1.5 mm (0.06").
  • Page 105 SAWMILL ALIGNMENT Saw Head Tilt See Figure 5-30. Blade 375 mm + 1 mm 375 mm + 1 mm Bed Rail Sm0064-1 FIG. 5-30 SAWMILL ALIGNMENT doc092506 5-32...

  • Page 106: Blade Height Scale Adjustment

    SAWMILL ALIGNMENT Blade Height Scale Adjustment 5.19 Blade Height Scale Adjustment After the entire sawmill has been aligned and all adjustments made, check that the blade height scale indicates the true distance from the blade to the bed rails. 1. Move the saw head so the blade is positioned directly above one of the bed rails. Mea- sure from the bottom edge on a down-set tooth of the blade to the top of the bed rail (or stainless steel sleeve if applicable).
