Functional Details

PCI-DUAL-AC5 to SSR-PB24 rack connections

The PCI-DUAL-AC5 board provides 48 bits of digital I/O. However, most popular relay and SSR boards
provide 24-bits of I/O. The PCI-DUAL-AC5 uses a dual-leg cable, C100FE-x to monitor and control
SSRs on two SSR-PB24 racks. The configuration is shown in Fi
PCI-DUAL-AC5
First Ports A, B, & C
The 24-bits of digital I/O on PCI-DUAL-AC5 connector pins 1-48 (base address +0 through +2) control
the first relay rack. The 24-bits of digital I/O on pins 51-98 (base address +4 through +6) control the
second SSR rack.
Figure 2-1 is a pin translation of pins 51 thru 100 of the C100FE-x or C100FF-x cable to the cable's
second 50-pin connector. The first 50 pins are a one-to-one relationship to the first 50-pin connector.

82C55 emulation

The PCI-DUAL-AC5 board emulates the 82C55 chip. The 82C55 emulation initializes all ports as inputs
on power-up and reset. A TTL input is a high impedance input. If you connect another TTL input device
to the output, it could be turned on or off every time the board is reset.
To establish a consistent TTL level at power-up, use resistors tied to either +5V (pull-up) or ground
(pull-down). There are open locations for pull-up and pull-down resistor packs on the board.
Whenever an 82C55 emulation is powered on or reset, all pins are set to high-impedance input. Based on
standard TTL functionality, these inputs will typically float high, and may have enough drive current to
turn on external devices.
SSR-PB24
SSR-PB24

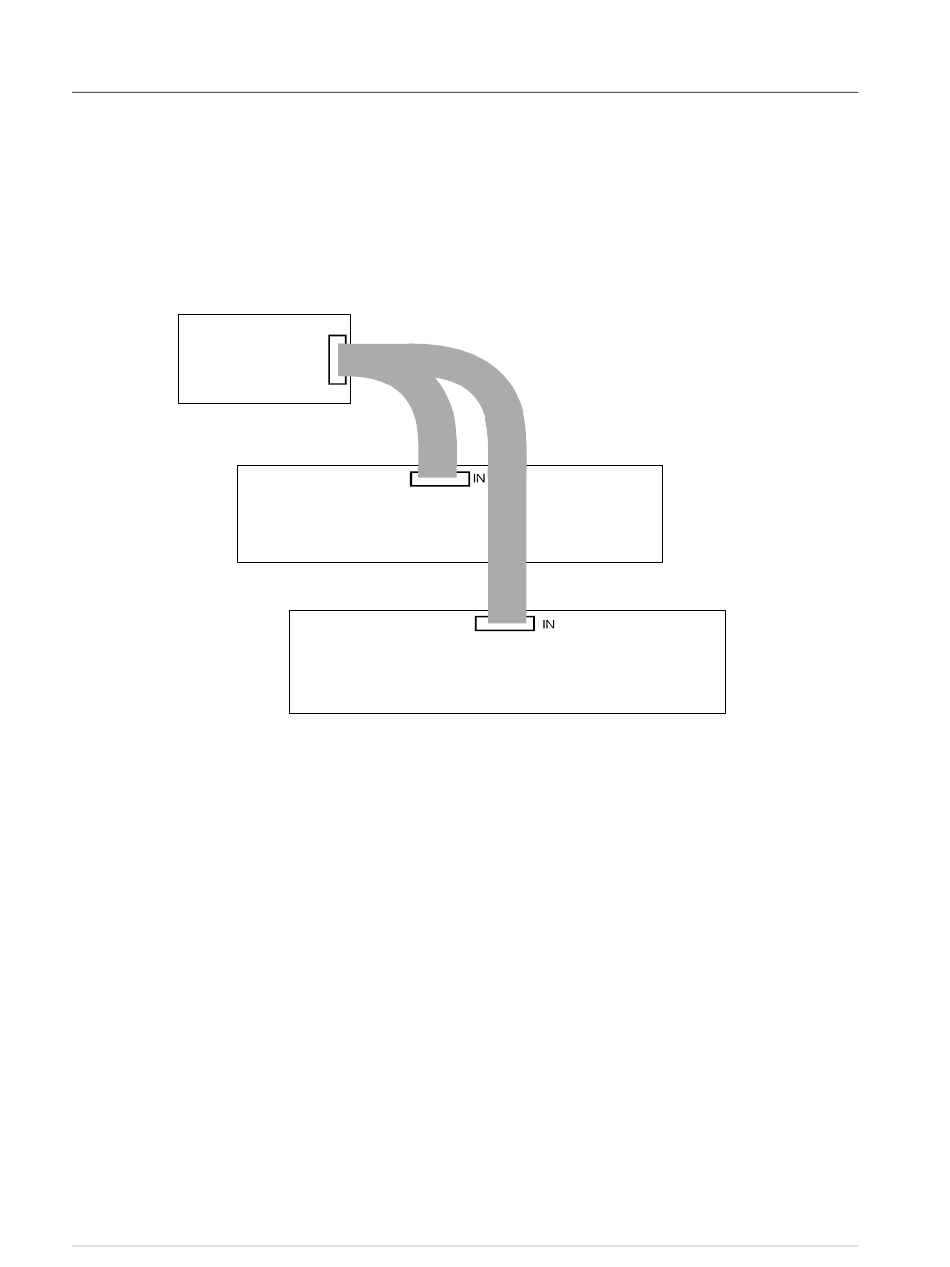

Figure 4-1. PCI-DUAL-AC5 to SSR-PB24 cabling
4-1
gure 4-1 .
C100FE-#
Second Ports A, B, & C
Chapter 4
