Rena 440 is a mobile sit-to-stand lift that has been developed for use in combination
with the correct lifting accessories to help the patient to stand up comfortably from a
seated position. It provides support under the feet, against the shins and behind the back.
Rena 440 is used in combination with StandUpSling.
RoMedic's slings and lifts are part of the SystemRoMedic concept, which takes a holistic
approach to patient transfers. SystemRoMedic has four categories: transfer, repositioning,
support and lifting.
Functional inspection
Visual inspection
Inspect hoist functions regularly. Check to ensure that material is free from damage.
Always read the instructions
Read instructions for all assistive devices used in connection with transfers. Keep the
manual where it is accessible to users of the product.
Do not leave the patient unattended during a lifting situation.
Before use:
Make certain the lift is properly assembled.
Lifting accessories must be properly trial fitted and tested in relation to the patient's needs
and functional ability.
Check Slingbar connection and safety latch function.
Check lift lifting function and base-width adjustment.
Under no circumstances may the lift be used by persons who have not
received instruction in the operation of the lift.
1
11
4
2
12
5
6
13
14

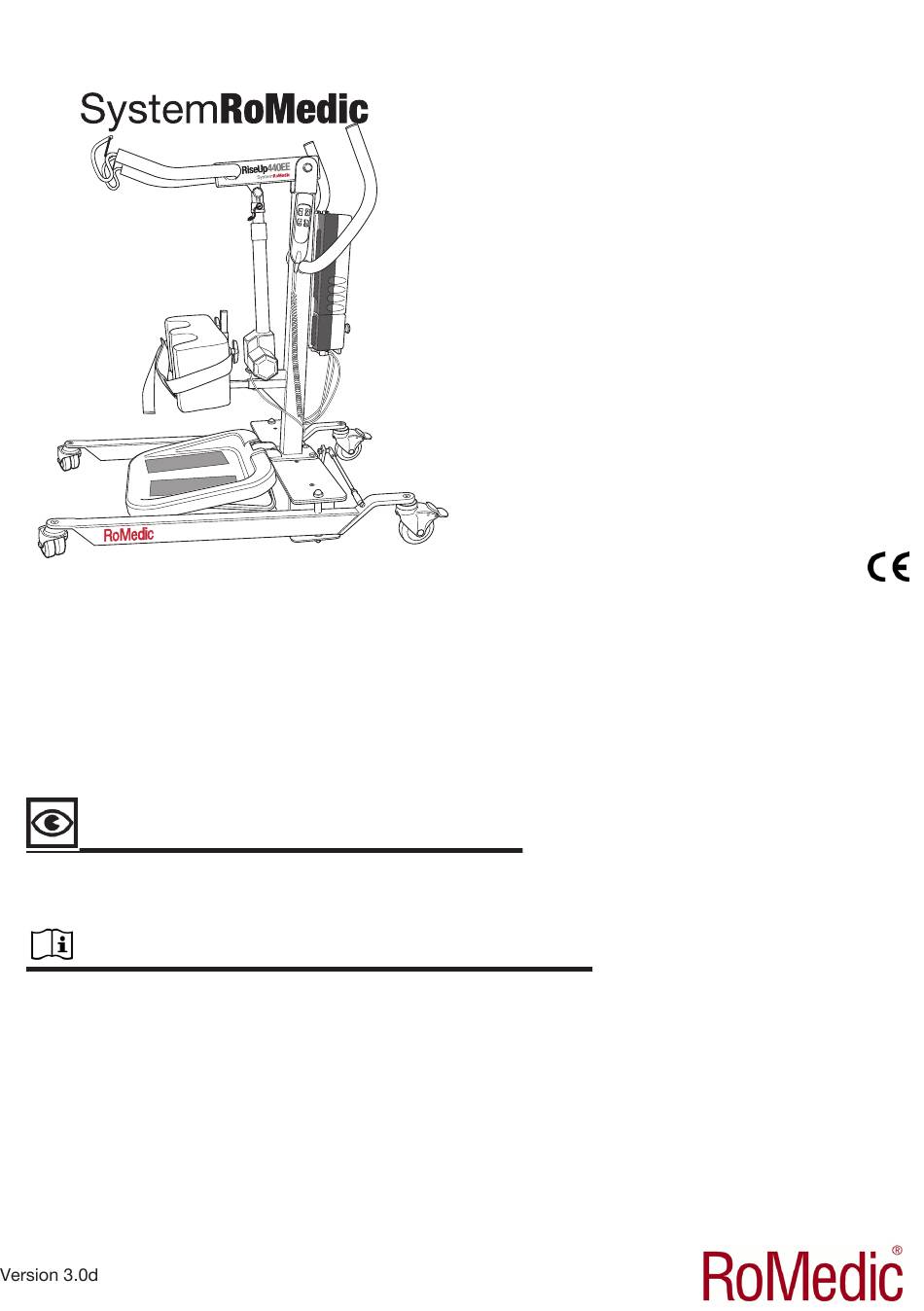

1. Boom
3
2. Mast
3. Handlebar
4. Battery pack
5. Emergency stop
6. Control box
7. Motor for base-width adjustment
8. Rear castors with brakes
9. SlingBar with safety latch
10. Front castors
11. Emergency lowering (mechanical)
12. Motor/actuator for boom
7
13. Padded leg support
14. Foot rest
8
Rena 440 EM/EE/DS Max. load: 205 kg / 440Ibs
M a n u a l
Rena440/600EE
Rena440EM
Rena440/600DS
Advertisement
Table of Contents
Related Manuals for RoMedic Rena 440
Summary of Contents for RoMedic Rena 440
- Page 1 14. Foot rest Rena 440 EM/EE/DS Max. load: 205 kg / 440Ibs Rena 440 is a mobile sit-to-stand lift that has been developed for use in combination with the correct lifting accessories to help the patient to stand up comfortably from a seated position.
-
Page 2: Table Of Contents
Table of Contents Safety Instructions Product Description Technical Data Measurements 440 series Measurements 600 series Final Inspection User's Guide Charging the Batteries Accessories Simple Troubleshooting Care and Maintenance Scale (on DS model only) Note: In this document, the person being lifted is called the “patient" and the person helping is called the “caregiver". -
Page 3: Safety Instructions
Safety Instructions Before use make certain that: • the lift is assembled according to the instructions. • the lifting accessories are properly mounted on the lift. • all instructions for both lift and accessories have been carefully studied and fully understood. -
Page 4: Technical Data
Technical Data Lifting speed: 3,5 cm/s (1,4 inch./s) without load Batteries: Two 12V 2.9 Ah valve-regulated lead-acid gel-type batteries. Battery Built-in charger, 100-230 V, charger: max 400mA Actuator (mast): 24 V, 6 A, permanent magnetic actuator with mechanical safety mechanism and safety nut. Actuator (base): On EE/ DS models only-24 V, 3,5 A, permanent magnetic actuator. -
Page 5: Measurements 440 Series
Measurements RENA 440 series RENA 440EM RENA 440EE/DS Row A Row A 41.5 41.5 40.5 40.5 43.5 25.5 4.25 4.25 37.5 - 61 38 – 60.5 Note: Row A is measurements in inches, Row B is measurements in cm RENA 440EM... -
Page 6: Measurements 600 Series
Measurements RENA 600 series RENA 600EM RENA 600EE/DS Row A Row A 35.5 35.5 4.25 4.25 38.5 - 61 38.5 - 61 Note: Row A is measurements in inches, Row B is measurements in cm RENA 600EM RENA 600EE/DS Row A Row A 26.5 - 40 28.5 –... -
Page 7: Final Inspection
Final Inspection • Final inspection of the lift is required before putting the lift into service. Once the lift has been removed from it’s shipping pallet, inspect it for signs of damage. • Make sure all four casters are working properly, check castor locks (figure 1) •... -
Page 8: User's Guide
User’s Guide Operation • Operate the lift using the pushbuttons on the hand control. (figure 5) For raising and lowering: • Directional arrows show the direction of movement (up/down). The lift stops when you release the buttons. For base-width adjustment: •... -
Page 9: Charging The Batteries
Charging the batteries Battery Charge Level • Your Rena lift has three different indicators to alert you to the charge level of the batteries. One is a yellow LED light on the hand control. When it remains on when a button is depressed, the battery has less than 25% charge left. -
Page 10: Accessories
It is recommended that wall mounted chargers be plugged into surge protecting power strips. StandUp Sling • The RoMedic StandUp Sling (Figure 16) comes in a variety of sizes from Small to XL. The StandUp sling comes with a safety strap and available synthetic sheepskin padding. -
Page 11: Simple Troubleshooting
If lift still does not function correctly, call your RoMedic distributor. 1. See if you can determine where the noise is coming “The lift is from, take the lift out of use and call your RoMedic making a strange distributor. noise.”... -
Page 12: Care And Maintenance
Service agreements RoMedic recommends you to consider a service agreement for regular maintenance and testing of your RoMedic mobile lift. Contact your local RoMedic representative for more information. RoMedic’s products are constantly being updated and refined. RoMedic reserves the right to change aspects of the products without prior notice. -
Page 13: Scale (On Ds Model Only)
• Press the recall button to display the last weight taken (over 50lbs / 22kg.). (figure • Scale capacity is determined by weight capacity of lift, Rena 440 is 440lbs., Rena 600 is 600lbs., do not exceed capacity of lift.
