360° Passive Infrared
Low Voltage Occupancy Sensor
Model #: MPC-50L

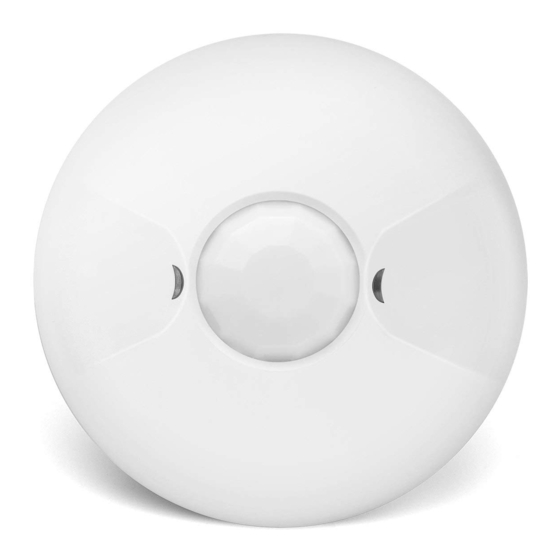

Description: The MPC-50L 360° passive infrared (PIR) occupancy sensors turn lighting systems
on and off based on occupancy and ambient light level. The light level feature keeps lights from
turning on if ambient light level is sufficient. The sensors can be configured to turn lighting on, and
hold it on as long as the sensor detects occupancy. After no movement is detected for a specified
or auto-set time (5 seconds to 30 minutes) the lights switch off. A "walk-through" mode can turn
lights off after only 3 minutes, if no activity is detected after 30 seconds of an occupancy detection.
* The MPC-50L operated on 24V supplied by MMP-24 power pack
Features
 Passive Infrared Technology(PIR)
 360 ° field of view,
 Time Delay is adjustable from 5 seconds to 30 minutes
 Simple, fast installation
 Adjustable sensitivity settings
 Light level is adjustable.
Specifications
Voltage
................................................................................................................... 24VDC
Current Consumption
Power Supply
................................................................................... MPP-24 Power Packs
Operating Temperature
Adjustable Light Level
Adjustable Time Delay
Walk-Through Mode
Test Mode
.................................................. 5 sec. upon initial power-up or DIP switch reset
PIR Coverage:
Sensitivity Adjustment
...................................................................................................... Up to 1200 ft
Coverage
Testing & Code Compliance
UL LISTE D
1200 sq.ft.
................................................................................................. 9mA
.............................................................32 to 131 F (0 to 55 C)
....................................................................................10FC-150FC
............................................................... 5 sec.-30min (DIP switch)
...................................................3 minutes if no activity after 30 sec.
........................................................ Automatic or Low (DIP switch)
General
Specification
°
°
°
°
