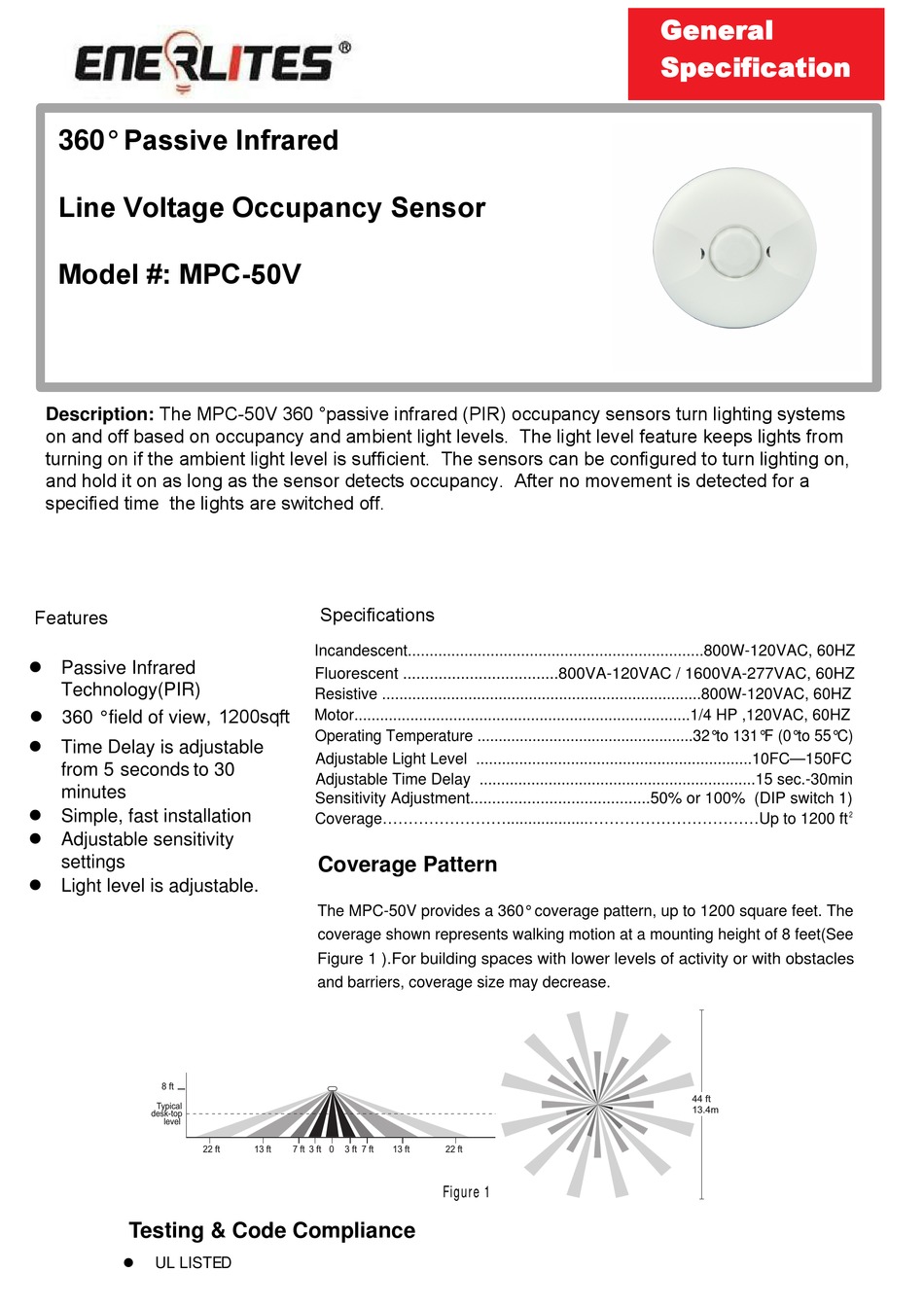

Enerlites MPC-50V General Specification

Enerlites MPC-50V General Specification

360 passive infrared line voltage occupancy sensor

Advertisement

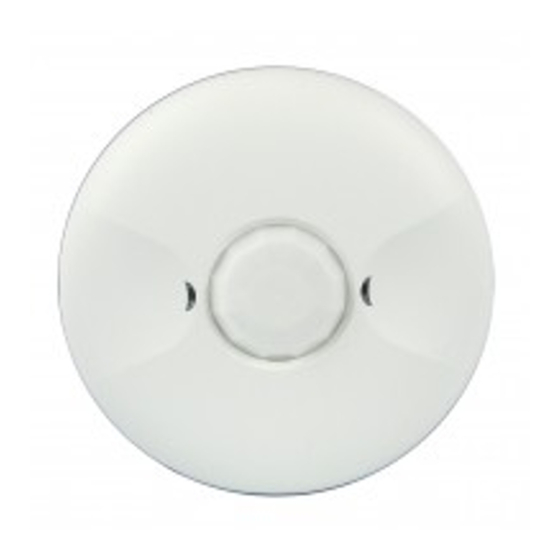

360° Passive Infrared
Line Voltage Occupancy Sensor
Model #: MPC-50V
Description: The MPC-50V 360 °passive infrared (PIR) occupancy sensors turn lighting systems
on and off based on occupancy and ambient light levels. The light level feature keeps lights from
turning on if the ambient light level is sufficient. The sensors can be configured to turn lighting on,
and hold it on as long as the sensor detects occupancy. After no movement is detected for a
specified time the lights are switched off.
Features
 Passive Infrared
Technology(PIR)
 360 ° field of view, 1200sqft
 Time Delay is adjustable
from 5 seconds to 30
minutes
 Simple, fast installation
 Adjustable sensitivity
settings
 Light level is adjustable.
8 ft
Typical
desk-top
level
22 ft
Testing & Code Compliance
UL LISTE D
Specifications
Incandescent....................................................................800W-120VAC, 60HZ
Fluorescent ...................................800VA-120VAC / 1600VA-277VAC, 60HZ
Resistive ..........................................................................800W-120VAC, 60HZ
Motor..............................................................................1/4 HP ,120VAC, 60HZ
Operating Temperature ...................................................32°to 131°F (0°to 55°C)
Adjustable Light Level ................................................................10FC—150FC
Adjustable Time Delay ................................................................15 sec.-30min
Sensitivity Adjustment.........................................50% or 100% (DIP switch 1)
Coverage............................................................................Up to 1200 ft
Coverage Pattern
The MPC-50V provides a 360° coverage pattern, up to 1200 square feet. The
coverage shown represents walking motion at a mounting height of 8 feet(See
Figure 1 ).For building spaces with lower levels of activity or with obstacles
and barriers, coverage size may decrease.
13 ft
7 ft
3 ft 0
3 ft
7 ft
13 ft
22 ft
Figure 1
General
Specification
44 ft
13.4m
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPC-50V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Enerlites MPC-50V

  • Page 1 Coverage Pattern  Light level is adjustable. The MPC-50V provides a 360° coverage pattern, up to 1200 square feet. The coverage shown represents walking motion at a mounting height of 8 feet(See Figure 1 ).For building spaces with lower levels of activity or with obstacles and barriers, coverage size may decrease.
  • Page 2 Wiring Directions WARNING: Turn off the power at the circuit breaker before installing Refer to the wire diagram of the sensor (see figure 2), and connect the wires of ceiling sensors as followed by using the wire nuts provided. 1. Connect the Hot wire of main power to the Black wire from the sensor.
  • Page 3 Sensor Adj ustment Keyhole slots(for mounting to 4" octagonal box) PIR lens PIR Activity LED(Red) TEST Time Delay Adjustment Light Light level Adjustment Figure 4 Double gang mudring mounting holes DIP switches Note: There is a 40- second warm-up period when power is first applied. The sensors are factory preset to allow for quick installation in most applications.
  • Page 4 DIP Switch Setting The MPC-50V has 2 DIP switches under the cover. They are used to set sensitivity, vacancy mode feature settings. Vacancy Sensitivity Enabled Disabled 100% =OFF =Factory Setting Sensitivity setting: DIP Switch 1 1. 50% , sensor’s coverage is smaller, just about half of the widest range.
