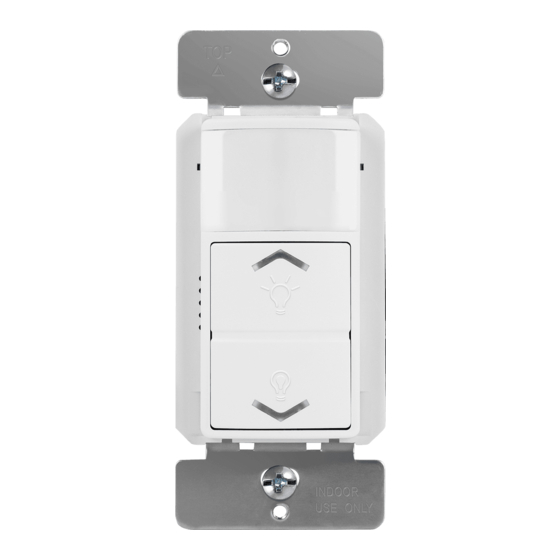

INSTALLATION INSTRUCTIONS
OCCUPANCY / VACANCY SENSOR
WITH 0-10V DIMMER SWITCH
SPECIFICATIONS
Voltage.......................................................................................120-277 VAC, 60Hz
Resistive.......................................................................6A @120VAC, 3A @277VAC
Load Rating...........................................................................................up to 30mA
IEC 60929 Ballast/Drivers Current Draw............................................. 2mA Maximum
Motor..................................................................................................................1/8HP
Time Delay..........................................................................15Sec, 10, 20, and 30Mins
Photocell Range ........................................................................30 Lux to Daylight
Operation Temperature.........................................................................32° F--104° F
DESCRIPTION
The DWODS-010 uses advanced passive infrared sensor to detect heat
emitted motion. The sensor switch can turn on/off a 0-10V load and keep it on
as long as it detects motion. The sensor will automatically shut off the load at
the end of the selected time delay. The countdown of the selected time delay
starts after the last motion detected. The sensor is customizable with dials that
can adjust Time Delay, detection Range, ambient Light Level, and a switch to
change between Occupancy/ Vacancy modes.
COVERAGE
As illustrated in Figure 1, The DWODS-010 has a 180° detection range with a
maximum distance of 30' detection in front of the sensor and 20' on the sides.
For maximum results, the sensor must be properly installed between the height
of 4' to 5' and away from obstructions such as walls, furniture and transparent
barriers like Low-E glass.
Detection Range
Max. 20'
on the sides
Installation
Height: 4' - 5'
1
DWODS-010
WARNING
Turn the POWER OFF at the circuit breaker before installing the sensor
Read and understand these instructions before installing. This device is intended for installation
in accordance with the National Electric Code and local regulations. It is recommended that a
qualified electrician performs this installation.
Use copper wire only

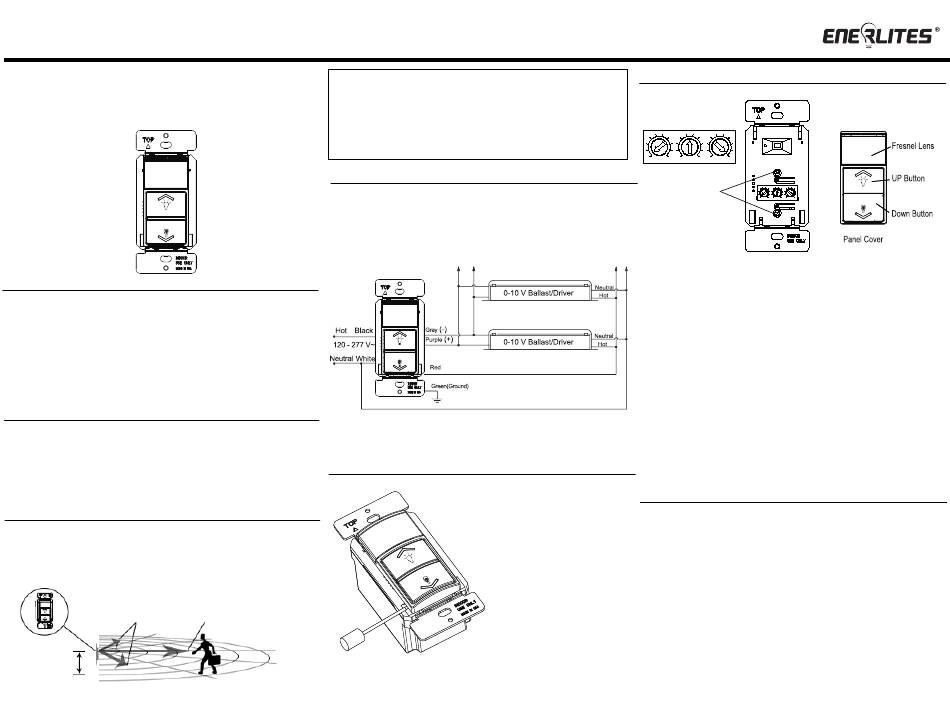

WIRING DIAGRAM
1. Pull the existing switch out of the wall box and leave the device
connected.
2. Next, identify and label all the wires.
3. Once you've identified the wires, follow the diagram below for wiring.
CHANGE FACE COVER/CONTROL PANEL ACCESS
Max. 30'
from front
To remove the face cover, use
a flat screwdriver and insert
the tip into the gap shown in
the diagram above and pry the
cover off.
To re-install, simply align the
cover and snap back on.
2
ADJUSTMENT DIALS
10 20 2 2
3 3
Min
Min
30
4
1 1 4
Min
TEST TIME RANGE LIGHT
LED Indicator
Time Delay Knob
Default position: 15 Seconds (Test mode)
Adjustable: from 15 Seconds to 30 Minutes (clockwise)
Sensor Sensitivity Range Knob
Default position: Center at 65%
Adjustable: 30% (Position 1) to 100% (Position 4) Note: Turn
toward right for greater room space.
Turn toward left to avoid false alert in smaller room and near the door
way or heat source.
Ambient Light Level Knob
Default position: Daylight (100% at position 4)
Adjustable: Daylight to 30Lux (Counter clockwise)
Note: to avoid wasting energy by turning the light in daylight.
OPERATING MODES
Occupancy (OCC) Mode (Default): Auto ON/ Auto OFF
The lights will automatically turn on when motion is detected by the PIR sensor
and keep the lights on as long as motion is still detected. When motion is no
longer detected, the device will start the countdown (Time Delay) and when
time expires, the device will automatically turn the lights OFF.
Vacancy (VAC) Mode : Manual ON/ Auto OFF
The lights will not turn on automatically when motion is detected by the PIR
sensor. The dimmer buttons must be used to turn the lights on. Once lights
are on, motion detected by the PIR sensor will keep the lights on. When
motion is no longer detected, the device will start the countdown (Time Delay)
and when time expires, the device will automatically turn the lights OFF.
• Within 30 seconds of the lights automatically turning off, if motion is
detected then the lights will turn on.
