Enerlites HMVS Quick Start Manual

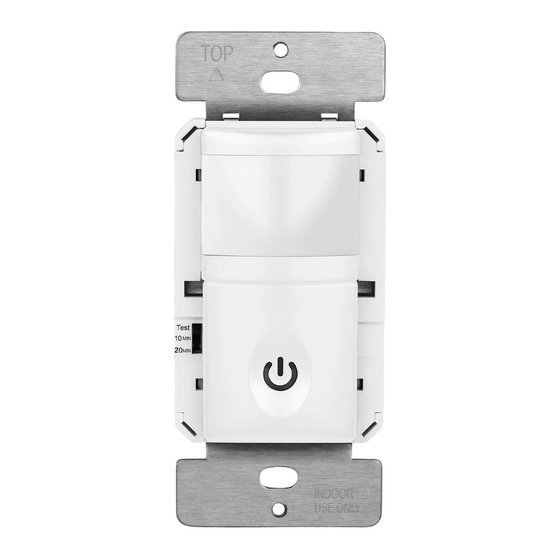

In-Wall Vacancy Sensor
Model No: HMVS
Description
The passive infrared sensors work by detecting the dif-
ference between heat emitted from the human body in
motion and the background space. The sensor switch can
turn a load on and hold it as long as the sensor detects
occupancy. After no motion is detected for the set time
delay, the load turned off automatically.
Features
• Manual ON / automatically OFF (Vacancy Mode)
• Time delay from 15 seconds (test mode) to 20 minutes
• Neutral wire required
Testing & Code Compliance
enerlites.com | Phone: 949-756-0536 | Fax: 949-756-0528 | e-mail: sales@enerlites.com
Specifi cations
Voltage
Incandescent
LED
Fluorescent
Motor
Time delay
Operating Temperature
*Coverage Area
Best: 180 sq.ft.
Regular: 450 sq.ft.
Maximum: 700 sq.ft.

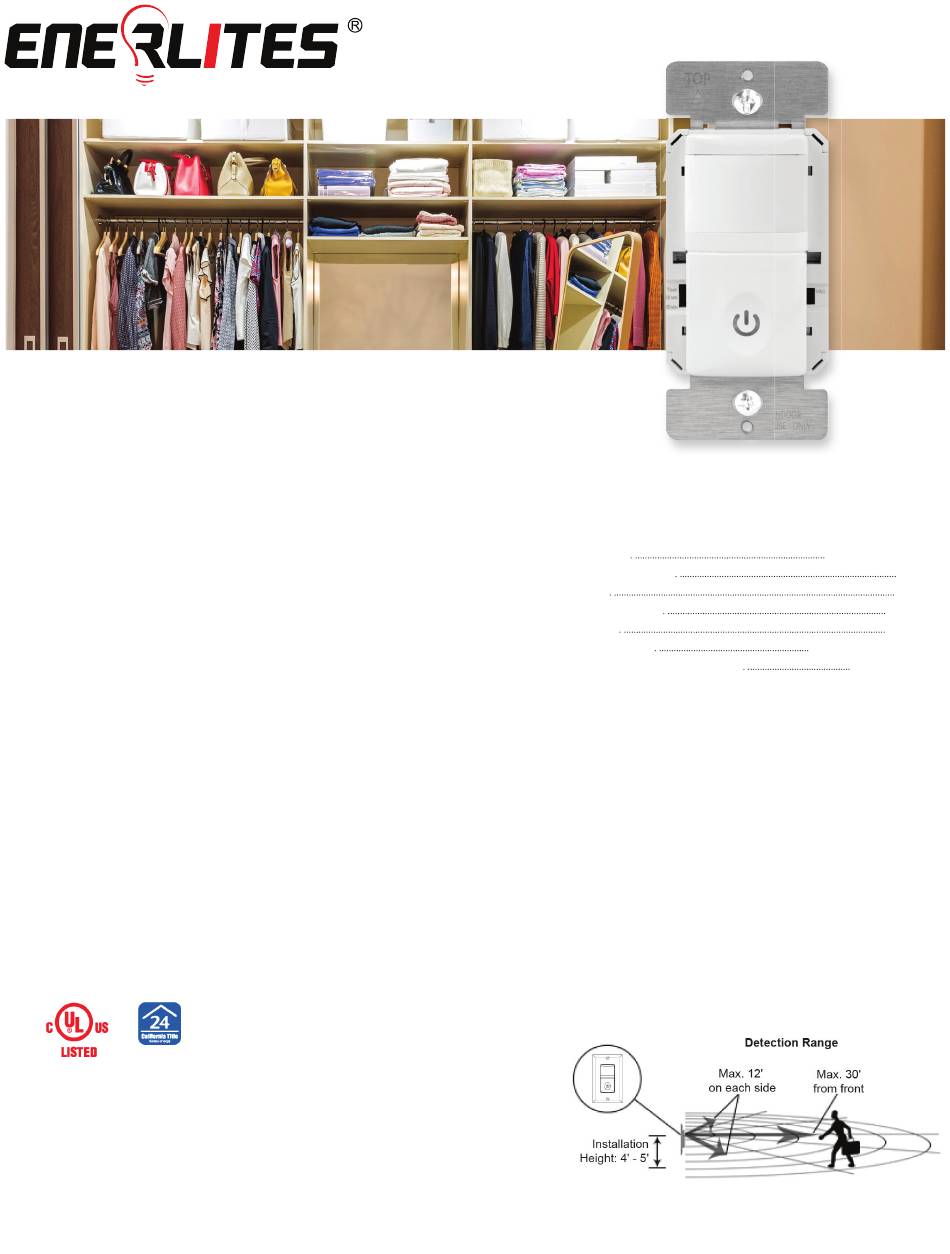

As illustrated in Figure 1, The HMVS-J has a 180°
detection range with a maximum distance of 30'
detection in front of the sensor and 12' on the
sides providing 700 sq. ft. of coverage. For maxi-
mum results, the sensor must be properly installed
between the height of 4' to 5' and away from ob-
structions such as walls, furniture and transparent
barriers like Low-E glass.
120 Vac, 60 Hz
500W
150W
500 VA
1/8 HP
15 Sec to 20 Mins
32 F to 131 F
Figure 1
