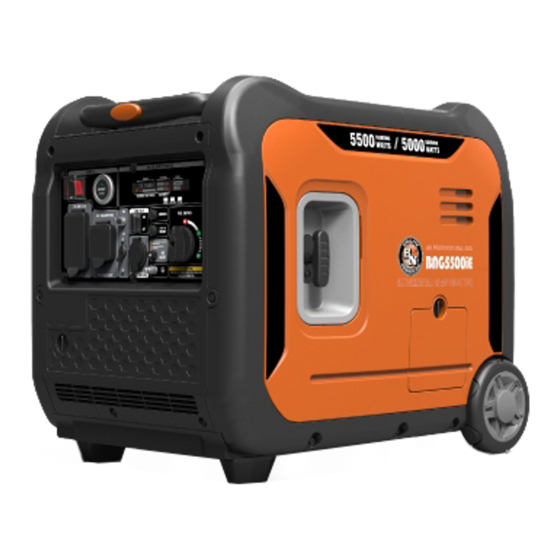

- Page 1 PRODUCT: BNG5500iE Inverter/ Generator OPERATIONS MANUAL BN PRODUCTS_USA, LLC. 3450 Sabin Brown Road • Wickenburg, AZ 85390 (800) 992-3833 • mail@bnproducts.com | 1 | www.bnproducts.com BN Products-USA...
- Page 2 However, as a result of revisions and other ongoing updates, the contents of this manual may be slightly different from the actu- al product. Please understand that BN Products reserves the right to make changes without notice and without incurring any obligation.
-
Page 3: Safety Messages
The circuit breakers should be matched with the generator equipment. • If the circuit breakers require replacement, they must be replaced with a circuit breaker with identical ratings and performance characteristics. • Don’t operate the generator before grounding. | 3 | www.bnproducts.com BN Products-USA... -
Page 4: Component Identification
COMPONENT IDENTIFICATION | 4 | www.bnproducts.com BN Products-USA... -
Page 5: Control Functions
When the overload indicator light comes on, and power generation stops, proceed as follows: • Turn off any connected electric devices and stop the engine. • Reduce the total wattage of connected electric appliances within the rated output. | 5 | www.bnproducts.com BN Products-USA... -
Page 6: Ac Pilot Light (Green)
Tip: The ECO must be turned to “OFF” when using electric devices that re- quire a large starting current, such as a compressor or a submersible pump. | 6 | www.bnproducts.com BN Products-USA... -
Page 7: Ground (Earth) Terminal
Because of transportation regulations, this generator has been shipped without engine oil. Therefore, please do not start the engine until it is filled properly with sufficient 10W-30 engine oil. Engine Oil Capacity: 0.84 Quarts | 7 | www.bnproducts.com BN Products-USA... -
Page 8: Recoil Starter
The fuel valve controls the fuel flowing from the fuel tank to the carburetor. Be sure to return the lever to “OFF” after stopping the engine. AC Circuit Breaker/Over Current Protector The overload current will automatically switch off the circuit breaker to avoid a short circuit overload. | 8 | www.bnproducts.com BN Products-USA... -
Page 9: Generator Operation
Overloading this generator will significantly shorten the generator service life. If the generator is connected to multi-loads or several electric appliances, please connect the largest load first, then the second-largest load, followed by the lightest load. | 9 | www.bnproducts.com BN Products-USA... -
Page 10: High Altitude Operation
This can cause over- heating and damage to the engine while being used at low altitudes. Return the unit to your dealer to adjust the engine for low-altitude use. | 10 | www.bnproducts.com BN Products-USA... -
Page 11: Starting The Engine
Let go of both buttons and start the generator by holding the start button. Stopping the Engine • Turn the AC circuit breaker to the “OFF” position. • Turn the generator switch to the “OFF” position. • Turn the fuel valve to the “OFF” position. | 11 | www.bnproducts.com BN Products-USA... -
Page 12: Maintenance
SHOULD BE SERVICED BY THE FACTORY. • Reduce the maintenance interval in extreme environments like exces- sively hot or dusty conditions. • Replace engine oil every 10 hours. • Clean air filter every 10 hours | 12 | www.bnproducts.com BN Products-USA... -
Page 13: Engine Oil Change
• SAE oil viscosities are on the API label of the oil container. Therefore, we recommend using API service category SJ or later (or equivalent) oil. • SAE 10W-30 is recommended for general use. | 13 | www.bnproducts.com BN Products-USA... -
Page 14: Air Filter Maintenance
Clean any debris from the filter housing with a damp cloth. Do not allow any dirt or debris to enter the opening leading to the carburetor. • Install the filter element and replace the air filter cover. | 14 | www.bnproducts.com BN Products-USA... -
Page 15: Fuel Sediment Cup Cleaning
Replace the spark plug if necessary. • Measure the spark plug gap with a thickness gauge. Bend the electrode to adjust the clearance. The clearance should be between .028-.030 in. (0.7 – 0.8) mm. | 15 | www.bnproducts.com BN Products-USA... -
Page 16: Spark Arrester Cleaning
Gasoline blend, storage temperature, and even how much fuel is in the tank can accelerate deterioration. For example, warm storage will accelerate gasoline deterioration to just a few months. Less if the gasoline was not fresh when you filled the tank. | 16 | www.bnproducts.com BN Products-USA... -
Page 17: Draining The Oil
Gently pull the starting handle until resistance is felt. Then return the starting handle gently. This will leave the intake and exhaust valves closed to help keep moisture out of the combustion chamber. • Store the generator in a clean and dry area. | 17 | www.bnproducts.com BN Products-USA... -
Page 18: Storage Precautions
• If the combustion chamber was coated with oil during storage, the engine might smoke briefly at startup. This is normal and should clear up within a few seconds. Item BNG5500iE Engine Gasoline Engine Single Cylinder. 4-stroke,- Type Forced Air Cooling, OHV... - Page 19 | 19 | www.bnproducts.com BN Products-USA...
-
Page 20: Electrical Schematic
ELECTRICAL SCHEMATIC | 20 | www.bnproducts.com BN Products-USA...
