FREEWAY FMT724M Configuration Manual

General BIOS Configuration Guide for Dell MFF PC
The Combination of the FMT724M Powered
Medical grade monitor and the MFF PC is a fantastic
modular solution, providing the best of both worlds
of balanced Medical grade user interface with
practicality of upgrading the Processor and
replacing the PC easily and at low cost compared
with AIO Solutions.
Our 724M medical monitors can power many
different micro and thin client PC options whilst
still offering a DC power option for peripherals such
as a Zebra QLN Label printer or Welsh Alyn Vital
Signs monitor from the 12V or 15V DC out terminals
on the monitor
To get the best performance from the DC out
option a few small changes need to be made in the
BIOS setup. These are quick and easy to change.
Below will guide you through- this is specific to DELL
Models

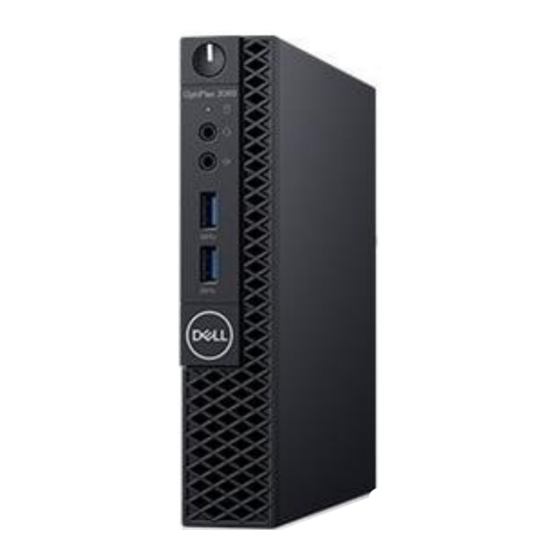

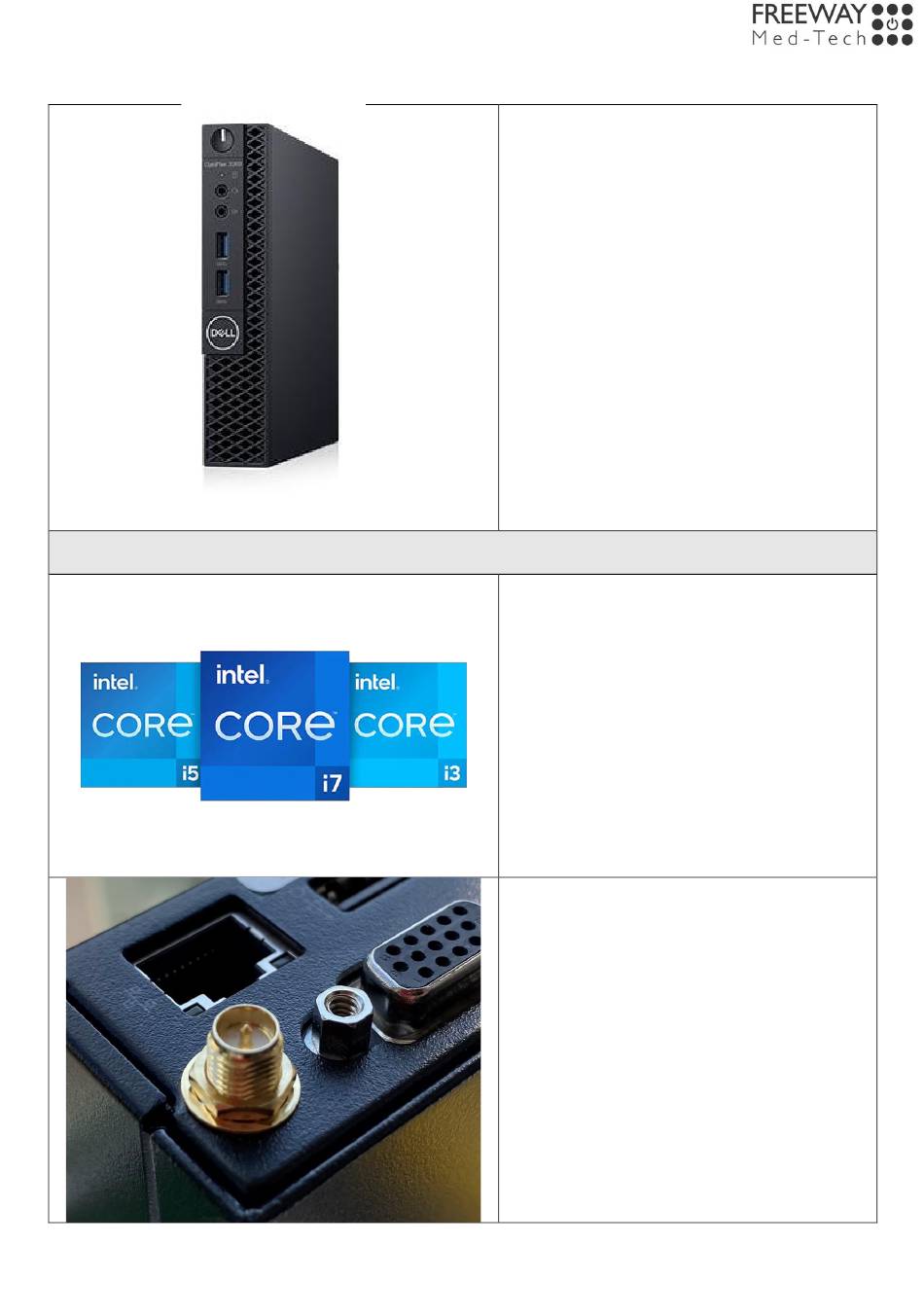

Recommended DELL Micro Form Factor Purchase configuration for optimum use with the Freeway Med-Tech
724M System
Recommended Intel U Series MFF PC
Freeway Med-Tech would recommend using the
Dell MFF PC's fitted with the latest Gen Intel®
Core™ U-series processor
As this has the lowest power consumption and will
deliver uncompromised performance in a power
efficient platform, these Intel® Core™ U-series
processor operate at only 15W, which enables
more power for other systems with better
performance and longer battery life.
Dell MFF equipped with RP- SMA
Freeway Med-Tech would recommend specifying
the Dell MFF PC is also purchased with a Rear
panel RP-SMA socket.
This connection works in conjunction with the
Intel high gain dBi built in areal inside the monitor,
and provide as standard are WiFi cables to connect
the monitors areal inside the back of the screen to
the MFF PC that is encapsulated inside an
aluminium Box to reduce its EMI / RF emission,
which would otherwise make it hard to receive
WiFi signal without the RP-SMA connection.
