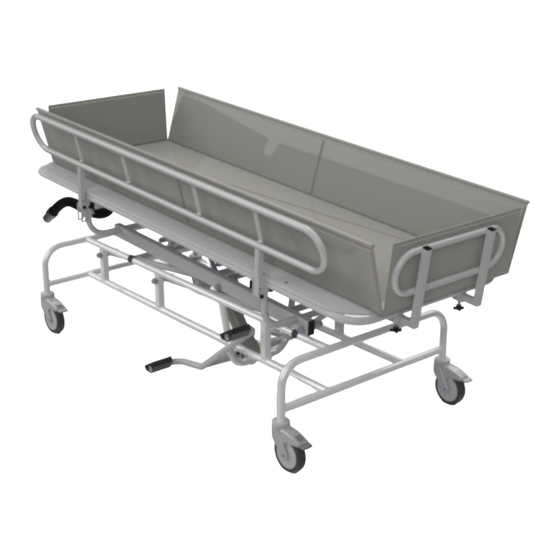

FREEWAY Height Adjustable Shower Trolley with Liner 1500mm User Manual
  1. Manuals
  2. Brands
  3. FREEWAY Manuals
  4. Medical Equipment
  5. Height Adjustable Shower Trolley with Liner...
  6. User manual

FREEWAY Height Adjustable Shower Trolley with Liner 1500mm User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Height Adjustable Shower
Trolley
This document includes the following models:
Height Adjustable Shower Trolley with Liner (1500mm)
Height Adjustable Shower Trolley with Liner (1700mm)
Height Adjustable Shower Trolley with Liner (1900mm)
User Manual
Doc No. 999076
Revision of document: A
Revision Date: 18.03.21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Height Adjustable Shower Trolley with Liner 1500mm and is the answer not in the manual?

Questions and answers

Related Manuals for FREEWAY Height Adjustable Shower Trolley with Liner 1500mm

Summary of Contents for FREEWAY Height Adjustable Shower Trolley with Liner 1500mm

  • Page 1 Height Adjustable Shower Trolley This document includes the following models: Height Adjustable Shower Trolley with Liner (1500mm) Height Adjustable Shower Trolley with Liner (1700mm) Height Adjustable Shower Trolley with Liner (1900mm) User Manual Doc No. 999076 Revision of document: A Revision Date: 18.03.21...

  • Page 2: Table Of Contents

    Closing the Side Rails ......................13 4.5.2 Opening the Side Rails ....................... 13 Technical Specification .......................... 14 Freeway Height Adjustable Shower Trolley Dimensions ..............14 Specifications............................. 16 Expected Product Lifetime ........................ 16 Standards Applied ..........................16 Environmental - Storage and Operating Conditions ................17 Normal operating conditions ......................
  • Page 3 Disposal ..............................17 Fault Finding ............................18 General Inspection, Maintenance and Cleaning ................... 19 Service ............................... 19 Inspection ............................19 Cleaning ............................. 20 9.3.1 General cleaning ........................20 9.3.2 Disinfecting (if necessary) ......................20 Warranty ............................... 22 Service Record History .......................... 23 | 3 of 28 999076 –...

  • Page 4: Safety Instructions And Warnings

    Safety Instructions and Warnings 1.1 Introduction Please read and understand this manual in its entirety before using your Freeway Height Adjustable Shower Trolley. The information in this manual is important for the safety of anyone near the Shower Trolley and must be read and understood to help prevent injuries.

  • Page 5: Symbols Used

    1.4 Symbols Used The Table below includes all Symbols from BS EN ISO 15223-1:2016 that can be found in this Manual and on the Product and what they represent. Refer back to this Table when you are unsure of what a symbol represents. Consult instructions before use Caution –...

  • Page 6: Contraindications / Limitations

    For internal use only. With a safe working load of 200kg, the Freeway Adjustable Height Shower Trolley is an easy to manoeuvre and easy to use hygiene solutions for caregivers and immobile patients. The Shower Trolleys assist patients to transfer from a bed to the shower and back again, as the Trolley is designed for shower room environments.

  • Page 7: Warning Notes

    • The Freeway Height Adjustable Shower Trolley, is not a toy. Do not use it for unsafe practices. Do not allow children to play with the Shower Trolley or any of its components. • Your guarantee is void if persons unauthorized by Prism Medical UK perform work on the Shower Trolley.

  • Page 8: Components / Key Parts

    Components / Key Parts Please see below to familiarise yourself with the components of the Freeway Height Adjustable Shower Trolley. The image below show the contents of the Shower Trolley. If you have not received all the components contact Prism Medical UK dealer immediately –...

  • Page 9: Assembly Instructions

    Assembly Instructions 3.1 Unpacking The Shower Trolley weighs 65kg which is a load too heavy to be lifted by one person. Items weighing 20kg or more requires a two person lift. It is recommended that the Shower Trolley is not lifted during unpacking, but the box being removed around the Trolley.

  • Page 10: Shower Trolley Assembly

    3.3 Shower Trolley Assembly 3.3.1 Liner and Drainage Pipe The Shower Trolley should be fully unpackaged prior to assembly. A. Place the Liner onto the Support Frame of the Shower Trolley with the plug hole marrying up with the Support Frame hole. (Figure 4) Figure 4 B.

  • Page 11: Head Rail And Foot Rail

    3.3.2 Head Rail and Foot Rail The Assembly of the Head Rail and Foot Rail are identical, follow the instructions below for both components. A. Loosen the Star Handles on either side of the Head/Foot Rail attachment slots, which are already positioned in the Support Frame. There is no need to fully remove the Star Handles, see figure 9.

  • Page 12: Operating Instructions

    The definition of Transport Position is the Shower Trolleys minimum height. 4.2 Brakes A. The Freeway Height Adjustable Shower Trolley has four braked castors. B. The castors should/can be applied when parking, adjusting the Trolley height, avoiding lateral movement, using to rotate the Trolley and as an emergency stopping system.

  • Page 13: Height Adjustment

    4.4 Height Adjustment The Shower Trolley includes a height adjustment function which can adjust the height of the support frame from 860mm to 1185mm. This function allows the carer and patient to select their most comfortable and preferable support frame height, while operating the Trolley under normal use.

  • Page 14: Technical Specification

    Technical Specification 5.1 Freeway Height Adjustable Shower Trolley Dimensions Below are the dimensions of the 1900mm Adjustable Height Shower Trolley. Figure 22 Figure 23 999076 – Revision A P a g e | 14 of 28...
  • Page 15 Figure 24 The Drawing below can be used in conjunction with Table 3. This will show the varying lengths between the other Shower Trolleys’ included in this Manual. Inside Min. Overall Max. Overall Overall Min. Inside Length Length Length Description Max.

  • Page 16: Specifications

    5.2 Specifications Dimensions: Turning Circle 1640mm Maximum Height 1185mm Minimum Height 860mm Overall Width 800mm Ground clearance 65mm Front and Rear Castors 125mm Table 4 Weights: Safe Working Load (SWL) 200 kg Full Product 65 kg Singular Side Rail 3 kg Table 5 Operational Forces: Moving Force (with 200 kg)

  • Page 17: Environmental - Storage And Operating Conditions

    Environmental - Storage and Operating Conditions The Freeway Height Adjustable Shower Trolley is intended for internal use within normal environmental conditions. It is not intended to be used in environments where there are rapid changes in the environmental temperature and humidity during use.

  • Page 18: Fault Finding

    Fault Finding If a problem arises with the Shower Trolley, the Table below will hopefully assists in determining the fault and what actions you can take. If the fault cannot be found or the fault is found and the action guide does not provide a fix (e.g. – a damaged wire would need replacement), contact your local Prism Medical UK authorized dealer immediately, a service engineer will be required to repair the Shower Trolley.

  • Page 19: General Inspection, Maintenance And Cleaning

    The service history of the product should be documented each service in the Service Log at the back of this User Manual. When the Shower Trolley is serviced, the 6 month service checklist must be completed for the Freeway Height Adjustable Shower Trolley.

  • Page 20: Cleaning

    9.3.1 General cleaning It is recommended to clean the Freeway Height Adjustable Shower Trolley before the use by a different patient, reducing the risk of cross–contamination. The exterior of the Shower Trolley can be cleaned using a damp soapy cloth for general cleaning duties. Please ensure the cloth is damp and not wet.
  • Page 21 Follow the manufacturer’s safety instructions for the use of the cleaning product before use to ensure safe use for the operator and the patient. Ensure the cloth is damp before the cleaning process. Application is through a clean damp cloth applied to wipe the device down. Use in the following dilutions to ensure an effective clean: Actichlor™...

  • Page 22: Warranty

    Avoid contact with skin and eyes. Do not breathe dust/fumes/gas/mist/vapours/spray. Use only with adequate ventilation. Wash hands thoroughly after handling. Mixing this product with acid or ammonia releases chlorine gas. Hygiene Measures Handle in accordance with good industrial hygiene and safety practice. Remove and wash contaminated clothing before re-use. Wash face, hands and any exposed skin thoroughly after handling.

  • Page 23: Service Record History

    Service Record History Complete this section after each service, repair inspection and/or maintenance. 999076 – Revision A P a g e | 23 of 28...
  • Page 24 999076 – Revision A P a g e | 24 of 28...
  • Page 25 999076 – Revision A P a g e | 25 of 28...
  • Page 26 999076 – Revision A P a g e | 26 of 28...
  • Page 27 User notes: 999076 – Revision A P a g e | 27 of 28...
  • Page 28 Dealer/service contact details: Prism Medical UK Contact details: Address: Unit 1• Tir Llwyd Industrial Estate • St Asaph Avenue • Kinmel Bay • Conwy • LL18 5JZ Telephone Number: 01924 840 100 Disclaimer While every effort has been made to ensure the accuracy of information contained in this assembly and installation manual, no liability can be accepted by Prism Medical UK for any errors or omissions.
