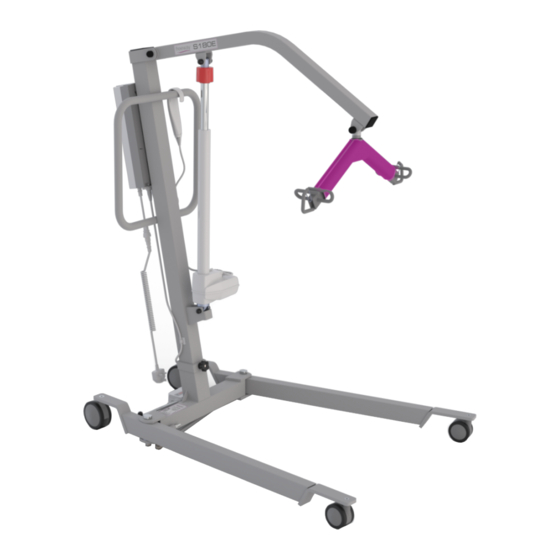

S180E Mobile Hoist
User Manual
Doc No. 999367
Revision of document: B
Revision Date: 10.06.21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S180E and is the answer not in the manual?

Questions and answers

Related Manuals for FREEWAY S180E

Summary of Contents for FREEWAY S180E

  • Page 1 S180E Mobile Hoist User Manual Doc No. 999367 Revision of document: B Revision Date: 10.06.21...

  • Page 2: Table Of Contents

    Contents Safety Instructions and Warnings ......................4 Introduction............................4 Manufacture ............................ 4 European Authorised Representative ..................... 4 Symbols Used ............................5 Contraindications / Limitations ......................6 Intended Use ............................6 Warning Notes ............................ 7 Operating Environment ........................7 Components / Key Parts ......................... 8 Assembly instructions ..........................
  • Page 3 Detachable Parts ........................... 24 Attaching/detaching QRS (Quick Release System) Carry Bar ............24 Attaching/detaching the Battery ....................25 Technical Specification .......................... 26 Freeway S180E Mobile Hoist Dimensions ..................26 Specifications............................. 27 Electrical Specifications ........................27 Standards Applied ..........................27 Environmental - Storage and Operating Conditions ................28 Normal Operating Conditions ......................

  • Page 4: Safety Instructions And Warnings

    Mobile Hoist. The information in this manual is important for the safety of anyone near the Freeway S180E Hoist and must be read and understood to help prevent injuries. It is also crucial to the proper operation and maintenance of the Mobile Hoist.

  • Page 5: Symbols Used

    1.4 Symbols Used The Table below includes all Symbols from BS EN ISO 15223-1:2016 that can be found in this Manual and on the Product and what they represent. Refer back to this Table when you are unsure of what a symbol represents. Consult instructions before use Caution –...

  • Page 6: Contraindications / Limitations

    • The Freeway S180E, and associated slings are not toys. Do not use it for unsafe practices. Do not allow children to play with the Hoist or any of its components.

  • Page 7: Warning Notes

    2. ALL Mobile Hoists are dangerous to the person being transferred when used recklessly or pushed at speed. 1.8 Operating Environment The S180E Mobile Hoist is intended for use within the professional health care facility environment as well as the home health care environment. The Hoist is not suitable for any other environment or special environments.

  • Page 8: Components / Key Parts

    Components / Key Parts Please see below to familiarise yourself with the components of the Freeway S180E Mobile Hoist. The image below show the contents of the Hoist. If you have not received all the components contact Prism Medical UK dealer immediately – contact details are provided on the last page of this manual.

  • Page 9: Assembly Instructions

    Assembly instructions 3.1 Unpacking Some of the parts are heavy and will need to be lifted with care. Items weighing over 20kg will require a two person lift. Please refer to (7.0) technical specifications for components weights. The Hoist will arrive to you in a robust box, please be careful when removing the components from the box. Please read the user guide in full before operating.

  • Page 10: Hoist Assembly

    Hoist Assembly A. Carefully open the box and remove all loose parts and excess packaging from the box. 2 person lift recommended for the following points. B. Carefully holding onto the handle and boom, lift the Hoist components out of Figure 3 the box.

  • Page 11: Electrical Connections

    3.4 Electrical Connections Connect all the cables to the control box as shown in the pictures opposite. A. Connect the lift actuator cable connector to the second port (marked No. 1) from the left side of the control box (as shown in Fig. 7). Figure 7 B.

  • Page 12: Operating Instructions

    Figure 13 5.2 Raising and Lowering The up and down movement of the boom on the Freeway S180E Mobile Hoist is achieved by an electric actuator which is controlled by hand control. The hand control has two buttons with directional arrows up and down. The actuator stops automatically at the limit of travel in both directions.

  • Page 13: Emergency Stop Button

    5.4 Emergency Stop Button The Mackworth M440 Mobile Hoist is fitted with an Emergency Stop button. Push the Emergency Stop button (as shown in Fig. 17) to cut all power to the Mobile Hoist. Figure 17 To resume power, release the emergency stop button by turning in a clockwise direction (indicated by arrows on the Emergency Stop button) as shown in Fig.

  • Page 14: Battery Status - Handset

    5.6.1 Battery Status - Handset Battery State Indication Comment The battery is OK - no need for charging (100-50%) the third LED is green The battery needs to be charged (50-25%) the second LED is yellow The battery needs to be charged (less than 25%) The buzzer sounds when a button is pressed The first LED is yellow The battery needs to be charged.

  • Page 15: Battery

    5.7 Battery The battery pack should never be stored for long periods of time without a regular charge. The battery pack is protected in an encased unit located on top of the control box, on the rear of the product. The control box, below the battery, will inform the user when the battery is flat and requires charging, by an illuminated LED.

  • Page 16: Control Box Display

    5.8 Control Box Display The Table below provides information on all Symbols seen on the Control Box display and what they represent. Refer to this table when unsure of a Symbol displayed on the Control Box. Control Symbol Comment Feature When the mains cable is plugged in and a control button is activated the symbol to the left is shown on the display until power down 2 Charging of battery...

  • Page 17: Slings

    ISO 10535 before its use. The slings with a safe working load of 180kg that can be used with the Freeway S180E Mobile Hoist are shown below in Table’s 7 and 8, complete with product codes. For all components, the lowest maximum safe working load must always be adhered to.
  • Page 18 Size Mackworth Sling Range - Product Material and Code Polyester Solid Polyester Mesh Parasilk Quilted Supersoft Spacer Mackworth Oak Small 1201OK7500 1201OK8500 1201OK3500 1201OK5500 1201OK4500 Medium 1201OK7400 1201OK8400 1201OK3400 1201OK5400 1201OK4400 Large 1201OK7300 1201OK8300 1201OK3300 1201OK5300 1201OK4300 1201OK7200 1201OK8200 1201OK3200 1201OK5200 1201OK4200 1201OK7100...
  • Page 19 1201WL7200 1201WL7100 XXXL 1201WL7000 Mackworth Willow with head support Small 1201WL7520 This sling is made up of a single quilted material backed with solid polyester material. Medium 1201WL7420 Large 1201WL7320 1201WL7220 1201WL7120 XXXL 1201WL7020 Mackworth Beech Small 1201BC7500 1201BC8500 1201BC3500 1201BC5500 1201BC4500 Medium...
  • Page 20 X Small CA300PXS CA300MXS CA300SXS CA300PXS Small CA300PS CA300MS CA300SS CA300PAS Small/Medium CA300PSM CA300MSM CA300SSM CA300PASM Medium CA300PM CA300MM CA300SM CA300PAM Medium/Large CA300PML CA300MML CA300SML CA300PAML Large CA300PL CA300ML CA300SL CA300PAL X Large CA300PXL CA300MXL CA300SXL CA300PAXL CA400 Universal Deluxe CA400PP1 CA400MP1 CA400SP1...
  • Page 21 Medium/Large CA501PML CA501MML CA501SML CA501PAML Large CA501PL CA501ML CA501SL CA501PAL X Large CA501PXL CA501MXL CA501SXL CA501PAXL CA502 Toilet Access with head support CA502PP1 CA502MP1 CA502SP1 CA502PAP1 CA502PP2 CA502MP2 CA502SP2 CA502PAP2 CA502PP3 CA502MP3 CA502SP3 CA502PAP3 CA502PP4 CA502MP4 CA502SP4 CA502PAP4 CA502PP5 CA502MP5 CA502SP5 CA502PAP5 X Small...
  • Page 22 Small/Medium CA600PSM CA600MSM CA600SSM CA600PASM Medium CA600PM CA600MM CA600SM CA600PAM Medium/Large CA600PML CA600MML CA600SML CA600PAML Large CA600PL CA600ML CA600SL CA600PAL X Large CA600PXL CA600MXL CA600SXL CA600PAXL CA700 Classic Hammock CA700PP1 CA700MP1 CA700SP1 CA700PAP1 CA700PP2 CA700MP2 CA700SP2 CA700PAP2 CA700PP3 CA700MP3 CA700SP3 CA700PAP3 CA700PP4 CA700MP4...
  • Page 23 X Large CA701HSPXL CA701HSMXL CA701HSSXL CA701HSPAXL CA702 Comfort In Chair Hammock CA702PP1 CA702MP1 CA702SP1 CA702PAP1 CA702PP2 CA702MP2 CA702SP2 CA702PAP2 CA702PP3 CA702MP3 CA702SP3 CA702PAP3 CA702PP4 CA702MP4 CA702SP4 CA702PAP4 CA702PP5 CA702MP5 CA702SP5 CA702PAP5 X Small CA702PXS CA702MXS CA702SXS CA702PAXS Small CA702PS CA702MS CA702SS CA702PAS Small/Medium...

  • Page 24: Detachable Parts

    Detachable Parts Detachable parts that are included with the product consist of the Battery and the QRS (Quick Release System) Carry Bar. This is an optional accessory that is not included with the standard product. Below are the instructions for attaching and detaching the QRS Carry Bar and the Battery. 6.1 Attaching/detaching QRS (Quick Release System) Carry Bar If you have chosen to have QRS carry bar please follow the following section to attach and detach the carry bar from hoist.

  • Page 25: Attaching/Detaching The Battery

    6.2 Attaching/detaching the Battery The attachment and detachment of the Battery can be completed safely by following the following procedure: Attach 1. Grab Hold of the Battery from the top position as shown in figure 35 and place your fingers onto the latch. 2.

  • Page 26: Technical Specification

    Technical Specification 7.1 Freeway S180E Mobile Hoist Dimensions All dimensions below are shown in millimetres. Figure 38 Figure 39 999367 – Revision B P a g e | 26 of 40...

  • Page 27: Specifications

    7.2 Specifications Dimensions Turning Circle 1010mm Overall Height 2010mm Overall Width 625mm Ground Clearance 15mm Front and Rear Castors Size 75mm and 100mm Table 9 Weights: Safe Working Load (SWL) 180 kg Full Product 40 kg Base Assembly 18.5 kg Mast &...

  • Page 28: Environmental - Storage And Operating Conditions

    Environmental - Storage and Operating Conditions The Freeway S180E is intended for internal use within normal environmental conditions. It is not intended to be used in environments where there are rapid changes in the environmental temperature and humidity during use.

  • Page 29: Fault Finding

    Fault Finding If a problem arises with the Mobile Hoist, the Table below will hopefully assists in determining the fault and what actions you can take. If the fault cannot be found or the fault is found and the action guide does not provide a fix (e.g. – a damaged wire would need replacement), contact your local Prism Medical UK authorised dealer immediately, a service engineer will be required to repair the Hoist.

  • Page 30: General Inspection, Maintenance And Cleaning

    11.1 Service No service is to be carried out on the S180E Mobile Hoist, while transferring a person to reduce the risk of injury. Service must be completed by a Prism Medical UK authorised Service Engineer. Do not attempt to service the product yourself, or warranty is void.

  • Page 31: Inspection

    11.2 Inspection Inspection is to be completed prior to each use by the user of the Mobile Hoist. Should any of the components in the table below fail the inspection, DO NOT use the Mobile Hoist. Contact your local authorised dealer for service – contact details are on the last page of this manual. Ensure all component inspections in the Table below are completed prior to each use of the Hoist.

  • Page 32: Cleaning

    The exterior of the Freeway S180E can be cleaned using a damp soapy cloth for general cleaning duties. Please ensure the cloth is damp and not wet. Ensure the exterior of the device is dry after cleaning. Dry using a clean dry cloth.
  • Page 33 Dilution chart Device condition Concentration Dilution qty* (l) Tablets per 1l Contact time Product used as (ppm) (0.26gal) (minutes) Bactericidal Clean 5 (1.32gal) Dirty 1000 1 (0.26gal) Yeasticidal Clean 5 (1.32gal) Dirty 1000 1 (0.26gal) Fungicidal Clean 2000 1 (0.26gal) Dirty 5000 1 (0.26gal)

  • Page 34: Warranty

    This guarantee does not affect or in any way limit your Statutory Rights. 1. Prism Medical UK guarantees the S180E, supplied as new, against failure within the period of 12 months from the date of purchase by virtue of defects in material or workmanship. (Excluding Batteries) 2.

  • Page 35: Service Record History

    Service Record History Complete this section after each service, repair inspection and/or maintenance. 999367 – Revision B P a g e | 35 of 40...
  • Page 36 999367 – Revision B P a g e | 36 of 40...
  • Page 37 999367 – Revision B P a g e | 37 of 40...
  • Page 38 999367 – Revision B P a g e | 38 of 40...
  • Page 39 User notes: 999367 – Revision B P a g e | 39 of 40...
  • Page 40 Dealer/service contact details: Manufacturer contact details: Prism Medical UK Address: Unit 1 • Tir Llwyd Industrial Estate • St Asaph Avenue • Kinmel Bay • Conwy • LL18 5JZ Telephone Number: 01924 840100 Disclaimer While every effort has been made to ensure the accuracy of information contained in this user manual, no liability can be accepted by Prism Medical UK for any errors or omissions.
