SOMFY Power 1.0 DC Flush Installation Instructions

Power 1.0 DC Flush installation instructions
www.somfy.com

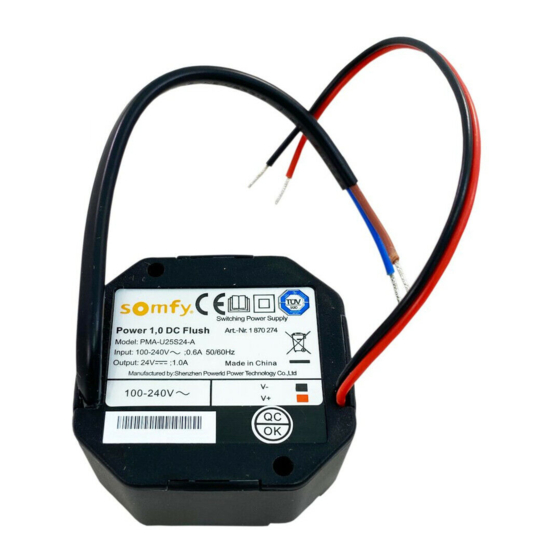

The Power 1.0 DC Flush power supply is designed to supply power to 24 V DC motors. Due to its small
dimensions, it can be installed in a surface box or a flush-mounted box. The output voltage is 24 V DC regulated.
1 Safety instructions
To ensure the safety of individuals, it is important to follow these instructions.
Incorrect installation can lead to serious injury.
Attention: Keep these safety instructions.
• Only a qualified person may set up, test, commission and perform troubleshooting on the installation.
• Switch off the voltage to all of the connection lines which are to be installed before working on the installation.
Remove all lines that are not needed and take out of operation all equipment that is not required for actuation
with the motor.
• Follow the installation and operating instructions, particularly the safety instructions for the equipment to be
operated.
2 Technical data
Operating voltage:
Output voltage no-load:
Continuous current:
Temporary current:
Overload switch-off:
Index protection rating:
Safety level:
Number of motors that
can be connected:
Dimensions H x W X D
in mm:
Operating temperature:
Please read this installation guide carefully so that you can ensure
that the product functions reliably.
Somfy shall not be liable for any defects or damages if these are
caused by use outside the field of application or the failure to observe
this installation guide (incorrect installation, incorrect commissioning,
incorrect operation, etc.).
230 V~ 50/60 Hz
24 V DC
Max. 1.0 A
1.5 A
100 ms > 1.6 A
II
IP 20
1
51 X 49 X 25
-25 °C to + 40 °C
Attention: Installation must take
place in a flush-mounted box/
pattress box (e.g. 55 mm).
