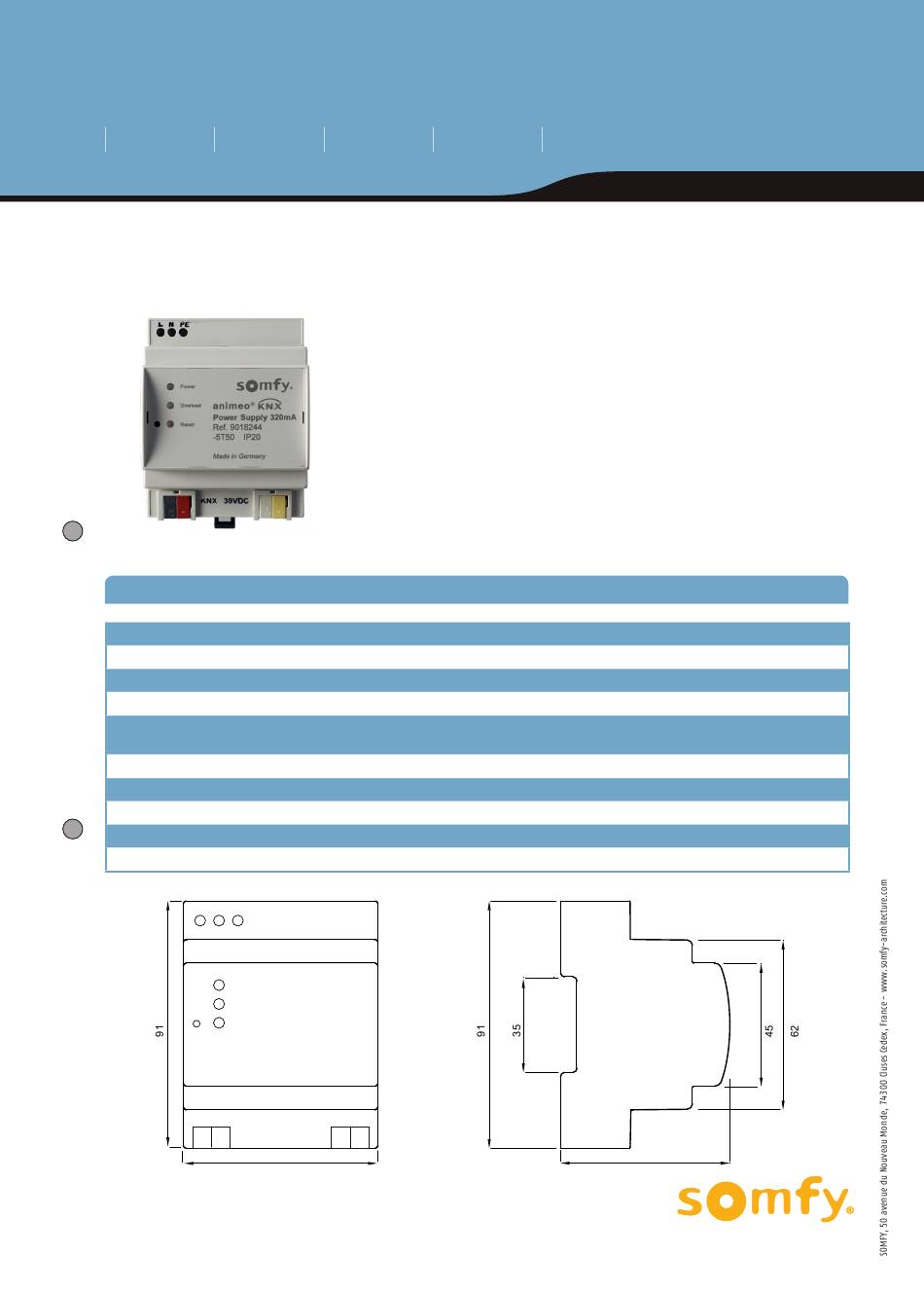

SOMFY 9018244 Installation Manual

Power Supply 320 ma
animeo Solo animeo IB+

installation guide

Ref. 9018244
CHaRaCteRistiCs
Supply voltage
output voltage
output voltage not choked
nominal current
terminals
ambient temperature
Protection class
mounting
dimensions
conformity
L N PE
Power
Overload
Reset
KNX
_
+
71
© 2013, SOMFY SAS . ALL RIGHTS RESERVED . ref. 5115194a – 2013/10/31
animeo KNX animeo LON

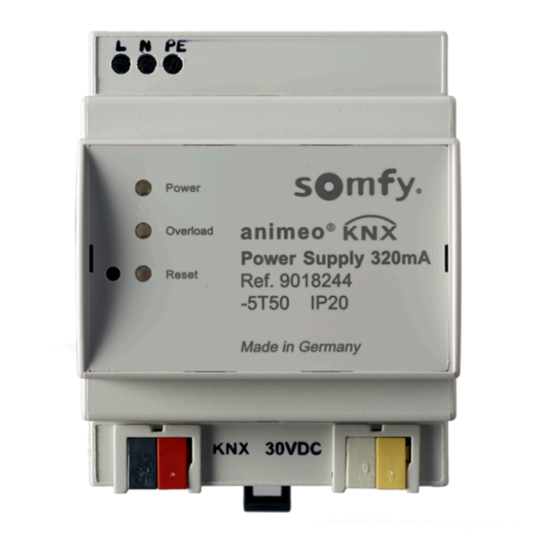

KNX Power Supply with integrated choke. Worldwide usable due to
wide range input 100 - 240 V AC. LED indicator for Power, Overload
and Reset. Push button for automatic reset on the KNX line. Ad-
ditional auxiliary voltage output with 30 V DC. Nominal current on
the short circuit protected outputs is 320 mA.
technical features:
• Wide range input 100 to 240 V AC / 50-60 Hz
• Integrated KNX choke
• Integrated KNX reset function for choked output
• Short circuit protection
• Status LEDs for Power, Overload and Reset
100-240 V AC / 50/60 Hz
30 V DC (28-31 V DC according to KNX specification)
30 V DC
320 mA
Screw terminal
max. 2,5 mm
- 5 ° C to + 50 ° C
IP 20
DIN rail
71 x 91 x 62 mm (w x h x d), 4 modules
www.somfy.com/ce
30 V DC
_
+
S o l u t i o n S f o r c o m m e r c i a l b u i l d i n g S
KNX bus terminal/auxilary voltage terminal
cross section ∅ 0,6 - 0,8 mm
2
62
