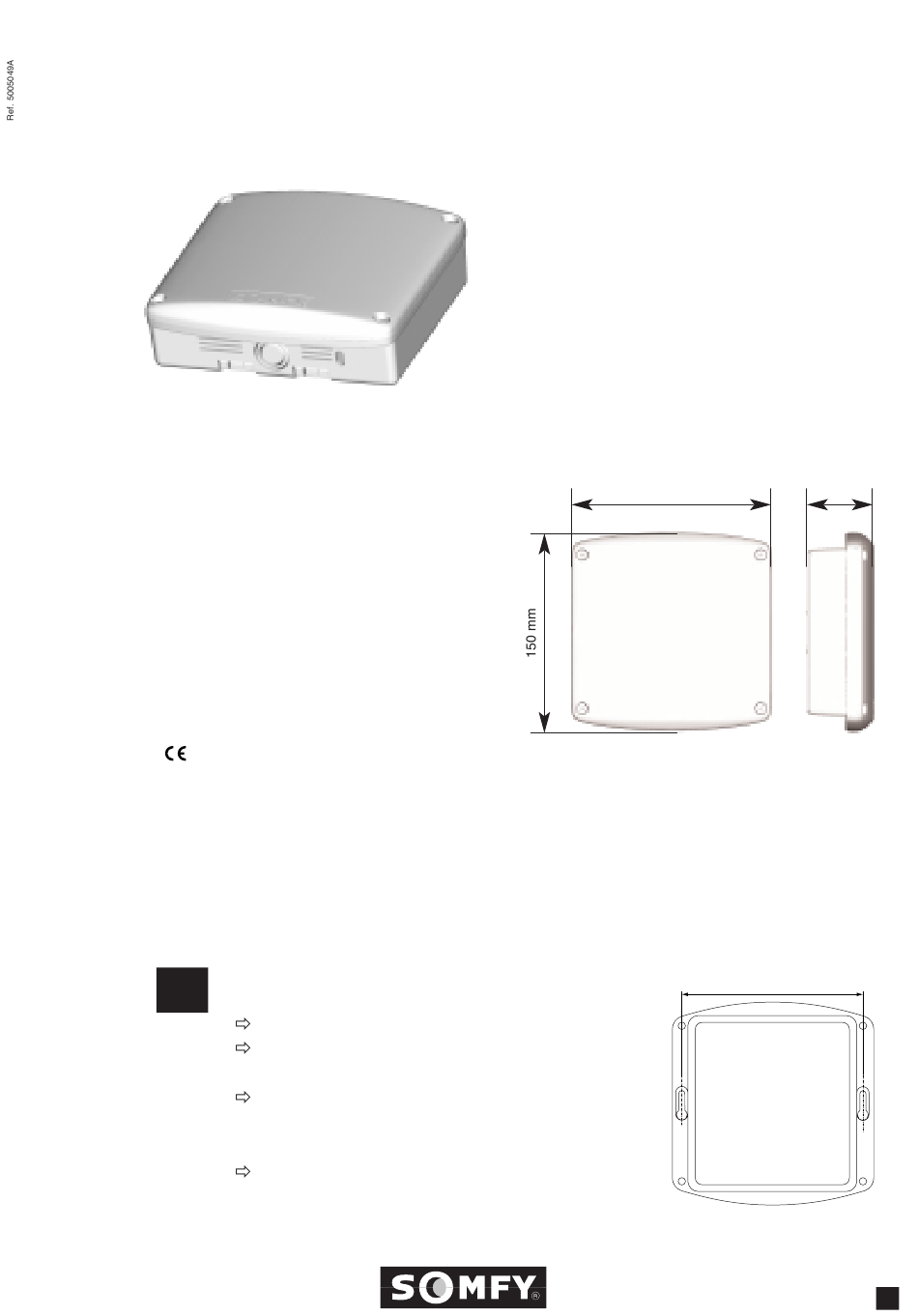

INSTALLATION
1
Characteristics
I Nominal supply voltage : 230 V AC
I Output voltage : 24 V DC SELV
I Maximum output load : 2.5 A
I Dimensions : 150 x 150 x 50 mm
I Protection indice : IP 20
I For internal use only
I For intermittent use only
I
2
Installation
2.1
Mounting
Remove the cover of the Power 2.5 DC.
Drill two holes into the wall according
to the mounting diagram (Fig 1).
Fix two screws into the wall and fit
the base of the Power 2.5 DC by sliding it
on the screw heads.
Screw up the two screws.

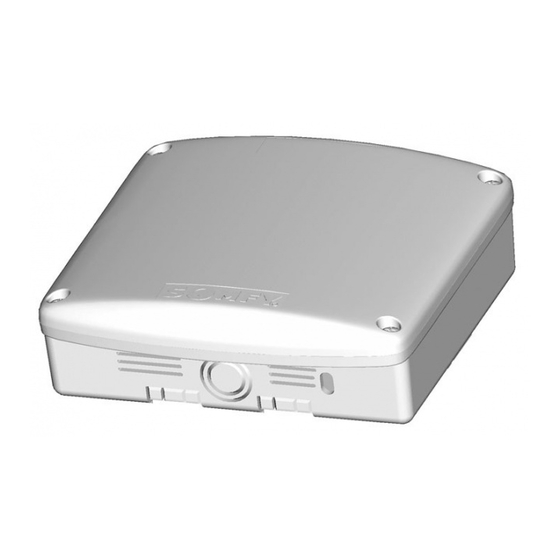

POWER 2.5 DC
The Power 2.5 DC is a power supply
designed for Somfy 24V DC motors.
150 mm
guide
50 mm
133 mm
133 mm
Fig.1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SOMFY Power 2.5 DC
Summary of Contents for SOMFY Power 2.5 DC
- Page 1 Drill two holes into the wall according to the mounting diagram (Fig 1). Fix two screws into the wall and fit the base of the Power 2.5 DC by sliding it on the screw heads. Screw up the two screws.
- Page 2 The mains and the 24 V DC output must be placed in two separated cable trunking (see diagram below). Use the pre-cut access located in front of the Power 2.5 DC. 10 mm 20 mm Wiring The Power 2.5 DC is compatible with all Somfy 24V DC actuators.
