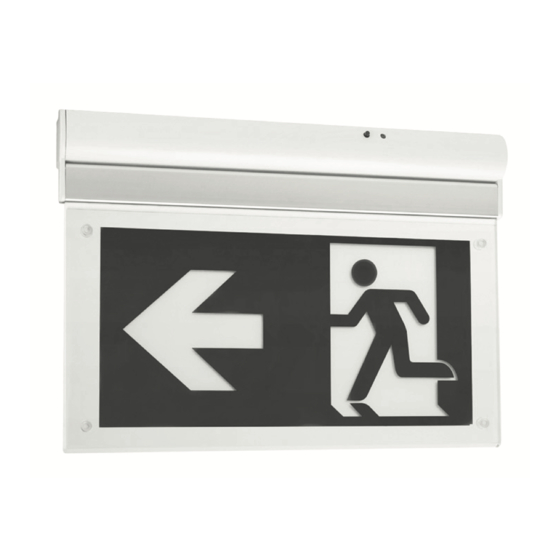

Wall surface emergency exit light
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

SAFETY:

• Installation of this luminaire should only be carried out by a qualified electrician or
competent person to the current IEE Wiring Regulations (BS7671)
• Please isolate mains prior to installation/maintenance
• Check the total load on the circuit, including when this luminaire is fitted, does not
exceed the rating of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress of Protection) rating of this luminaire when deciding the
location for Installation
• This product is Class II double insulated
• This product is non-dimmable
WALL SURFACE EMERGENCY EXIT LIGHT
VT-519
WEEE Number: 80133970

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-519 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-TAC VT-519

Summary of Contents for V-TAC VT-519

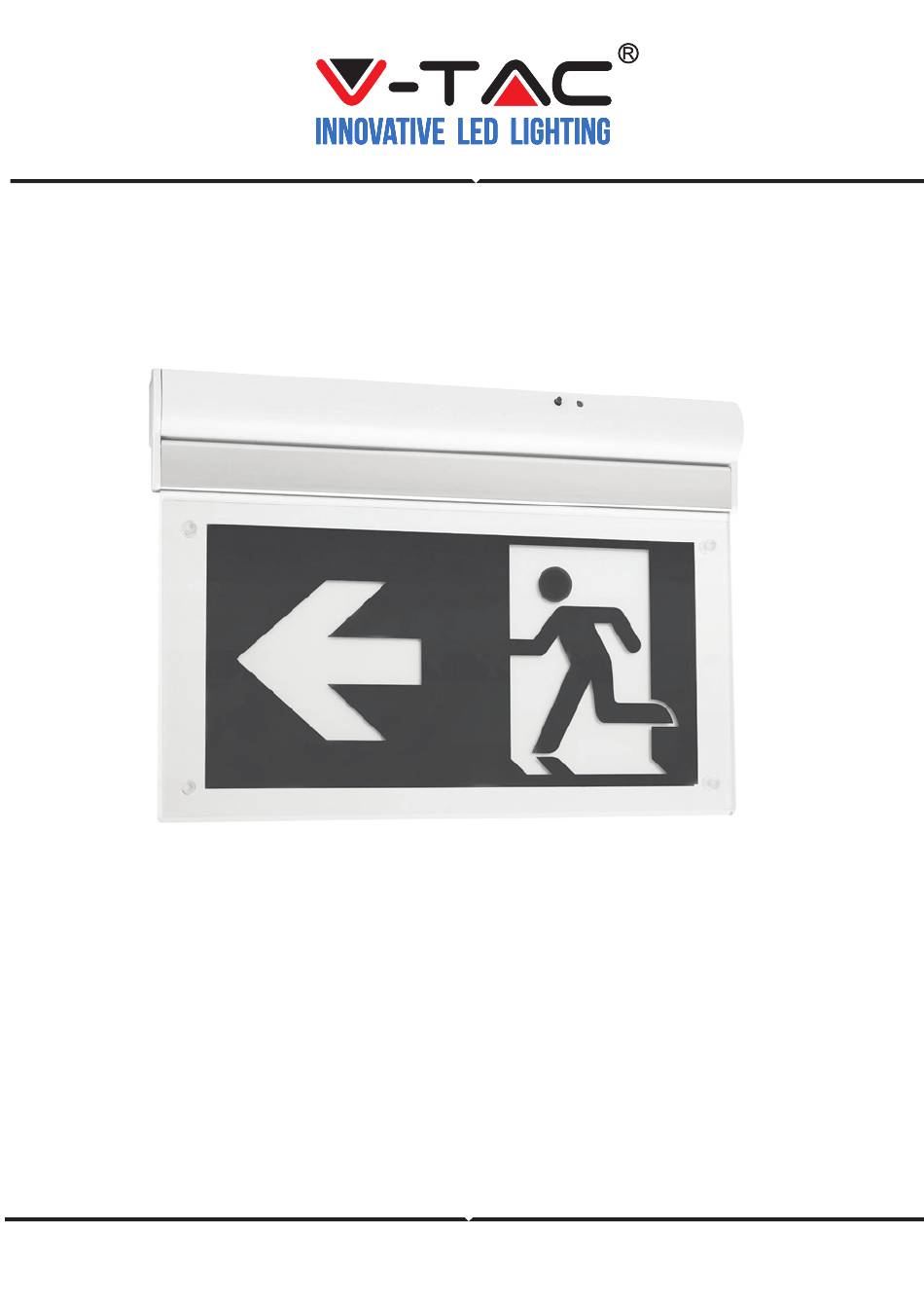

  • Page 1 WEEE Number: 80133970 INSTALLATION MANUAL WALL SURFACE EMERGENCY EXIT LIGHT VT-519 SAFETY: • Installation of this luminaire should only be carried out by a qualified electrician or competent person to the current IEE Wiring Regulations (BS7671) • Please isolate mains prior to installation/maintenance •...
  • Page 2 INSTALLATION: • Provide power to the required point of installation • Remove the top cover as shown below in the image • Using the top cover as a template, mark the location for, and drill 2 fixing holes ensuring not to infringe with any joists, gas or water pipes or electrical cables. •...
  • Page 3 Live Switched (brown) Live Live Neutral (brown) Live Neutral (blue) (brown) Neutral (brown) (blue) (blue) Maintained Switched Non Maintained Opera�on Maintained Opera�on Opera�on WARNING: • This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance testing.
  • Page 4 GENERAL: The LEDs fitted in this product are non-replaceable. The unit should be recycled in the correct manner when it reaches the end of its life. Check local authorities for where facilities exist. Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the fitting.
