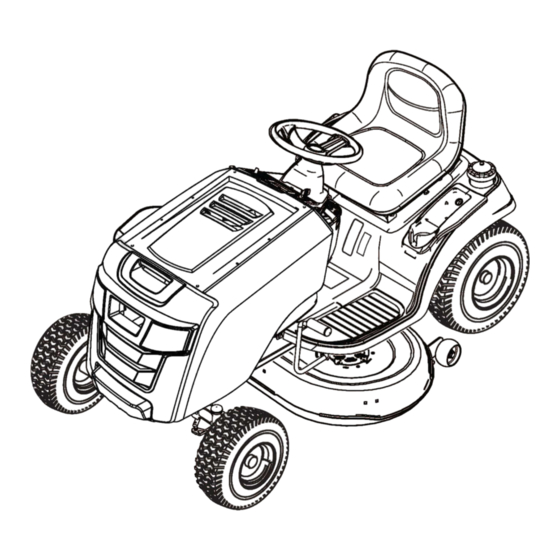

- Page 1 Operator’s Manual Front Engine Riders Models Covered by This Manual 2691184-00, 2691185-00, 2691185-01, 2691186-00, 2691187-00 Copyright © 2014 Briggs & Stratton Power Products Group, LLC. 1757784 Milwaukee, WI, USA. All rights reserved. Revision A...
-
Page 3: Table Of Contents
Contents Operator Safety ....................4 Important Safety Instructions ................4 Safety Symbols and Meanings ................4 Safe Operation Practices .................. 5 Decal Locations (Operation and Safety) ............10 Features and Controls ..................12 Operation ......................14 Safety Interlock System Tests ................14 Oil Recommendations .................. -
Page 4: Operator Safety
Operator Safety Important Safety Instructions DANGER indicates a hazard which, if not avoided, will result in death or serious injury. SAVE THESE INSTRUCTIONS - This manual contains important instructions that should be followed during the initial set-up, the operation, and the maintenance of the WARNING indicates a hazard which, if not avoided, equipment. -
Page 5: Safe Operation Practices
Safe Operation Practices Operating Safety Congratulations on purchasing a superior-quality piece of lawn and garden equipment. Our products are designed and manufactured to meet or exceed all industry standards for safety. Power equipment is only as safe as the operator. If it is misused, or not properly maintained, it can be dangerous! Remember, you are responsible for your safety and that of those around you. - Page 6 Slope Operation You could be seriously injured or even killed if you use this unit on too steep an incline. Using the unit on a slope that is too steep or where you don’t have adequate traction can cause you to lose control or roll over. A good rule of thumb is to not operate on any slope you cannot back up (in 2-wheel drive mode). You should not operate on inclines with a slope greater than a 3.5 foot rise over a 20 foot length.
- Page 7 Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is capable of amputating hands and feet and throwing objects. The triangle in text signifies important cautions or warnings which must be followed.
- Page 8 SLOPE OPERATION WARNING Slopes are a major factor related to loss-of-control and tip- over accidents, which can result in severe injury or death. Never operate on slopes greater than 17.6 percent Operation on all slopes requires extra caution. If you cannot (10°) which is a rise of 3-1/2 feet (106 cm) vertically in back up the slope or if you feel uneasy on it, do not operate 20 feet (607 cm) horizontally.
- Page 9 SERVICE AND MAINTENANCE 1 2. Do not use gasoline containing METHANOL, gasohol Safe Handling of Gasoline containing more than 10% ETHANOL, gasoline 1. Extinguish all cigarettes, cigars, pipes, and other additives, or white gas because engine/fuel system sources of ignition. damage could result. 2. Use only approved gasoline containers. 13. If the fuel tank must be drained, it should be drained 3. Never remove the gas cap or add fuel with the engine outdoors.
-
Page 10: Decal Locations (Operation And Safety)
Decal Locations (Operation and Safety) Height of Cut Part No. 1730264 1730202 Transmission Release Part No. 1730202 DANGER Main Panel Part No. 1755395 DANGER Amputation Hazard Part No. 7101665 Figure 1... - Page 11 This page intentionally left blank.
-
Page 12: Features And Controls
Features and Controls Figure 2... - Page 13 Tractor Controls Brake Pedal Reverse Mowing Option (RMO) Depressing the brake pedal applies the tractor This allows the operator to mow (or use other brake. PTO driven attachments) while traveling in reverse. To activate, turn the RMO key after the PTO is engaged.
-
Page 14: Operation
Operation General Operating Safety Check Tire Pressure Be sure to read all information in the Operator Safety Tires should be checked periodically to provide the optimum section before attempting to operate this unit. Become traction and to guarantee the best cut (see Figure 3). familiar with all of the controls and how to stop the unit. -
Page 15: Checking/Adding Oil
Check and Add Engine Oil 1. Place the tractor on a level surface (see Figure 4). Figure 4 2. Clean the oil fill area of any debris. 3. Remove the dipstick and wipe with a clean cloth (see Figure 5). 4. Fully insert the dipstick. 5. Remove the dipstick and check the oil level. It should be at the FULL mark on the dipstick. -
Page 16: High Altitude
Starting the Engine High Altitude At altitudes over 5,000 feet (1,524 meters), a minimum 85 WARNING octane/85 AKI (89 RON) gasoline is acceptable. To remain emissions compliant, high altitude adjustment is required. Fuel and its vapors are extremely flammable and Operation without this adjustment will cause decreased explosive. performance, increased fuel consumption, and increased Fire or explosion can cause severe burns or emissions. -
Page 17: Driving The Tractor
Driving the Tractor Reverse Mowing Option (RMO 1. Sit in the seat and adjust the seat so that you can WARNING comfortably reach all the controls and see the dashboard Mowing in reverse can be hazardous to bystanders. display (see Features and Controls). Tragic accidents can occur if the operator is not alert to the 2. -
Page 18: Adjusting The Mower Cutting Height
Adjusting the Mower Cutting Height Stopping the Tractor and Engine Use the mower cutting height adjustment lever to raise or lower the cutting height (see Features and Controls). WARNING Fuel and its vapors are extremely flammable and The cutting height has seven positions between 1.5” and explosive. -
Page 19: Maintenance
Maintenance Maintenance Chart TRACTOR AND MOWER ENGINE Every 8 Hours or Daily First 5 Hours Check safety interlock system Change engine oil Clean debris off tractor and mower deck Every 8 Hours or Daily Clean debris from engine compartment Check engine oil level Every 25 Hours or Annually * Every 25 Hours or Annually * Check tire pressure... -
Page 20: Check Tire Pressure
Check Tire Pressure Tires should be checked periodically to provide the optimum (2x) traction and to guarantee the best cut (see Figure 3). (3x) NOTE: These pressures may differ slightly from the “Maximum Inflation” stamped on the side walls of the tires. Battery Maintenance WARNING When removing or installing battery cables, disconnect the negative cable FIRST and reconnect it LAST. -
Page 21: Changing The Engine Oil
Changing the Engine Oil WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. When Changing Oil • I f you drain the oil from the top oil fill tube, the fuel tank must be empty or fuel can leak out and result in a fire or explosion. -
Page 22: Servicing The Air Filter Assembly
Servicing the Air Filter Assembly Servicing the Muffler WARNING WARNING Fuel and its vapors are extremely flammable and Running engine produces heat. Engine parts, explosive. especially muffler, become extremely hot. Fire or explosion can cause severe burns or Severe thermal burns can occur on contact. death. - Page 23 Check Spark Plug Gap Use a spark plug feeler gauge to check the gap between the two electrodes. When the gap is correct, the gauge will drag slightly as you pull it through the gap. If necessary, use the spark plug gauge to adjust the gap by gently bending the curved electrode without touching the center electrode or the porcelain.
-
Page 24: Washing The Mower Deck
Washing the Mower Deck Adjusting the Gauge Wheels NOTE: The washout port allows you to connect a typical Use the gauge wheels to prevent the mower from scalping. garden hose to the left-hand side of the mower deck to 1. Select the cutting height (see Features and Controls). remove grass and debris from the underside. -
Page 25: Lubrication
Lubrication We recommend that all moving parts should be lubricated where contact is made with other parts (see Figure 15). Keep oil and grease off belts and pulleys. Wipe surfaces clean before and after lubrication. (8x) (1x) Figure 15... -
Page 26: Storage
Storage Engine Oil While the engine is still warm, change the engine oil. See Changing the Engine Oil section. WARNING Before starting the unit after it has been stored: Never store the unit (with fuel) in an enclosed, • Check all fluid levels. Check all maintenance items. unventilated structure. Fuel vapors can travel to an ignition source (such as a furnace, water • Perform all recommended checks and procedures found heater, etc.) and cause an explosion. -
Page 27: Troubleshooting
Troubleshooting Troubleshooting the Tractor PROBLEM LOOK FOR REMEDY Brake pedal not Fully depress brake pedal. depressed. PTO (electric clutch) switch Place in OFF position. is in ON position. Cruise control engaged. Move knob to NEUTRAL/OFF position. Out of fuel. If engine is hot, allow it to cool, then refill the fuel tank. Fuse is blown. -
Page 28: Troubleshooting The Mower
Troubleshooting the Mower PROBLEM LOOK FOR REMEDY Lift linkage not properly See authorized dealer. Mower will not raise. attached or damaged. Mower not leveled properly. See authorized dealer. Tractor tires not properly See Check Tire Pressure section. Mower cut is uneven. inflated. -
Page 29: Specifications
Specifications ENGINE TRANSMISSION Briggs & Stratton Make Hydro Gear® Type T2-HP Model Professional Series , V-Twin Displacement 44.2 cu in. (724 cc) MOWER DECK Electrical System Alternator: 9 amp Regulated, Battery: 12V-230 CCA Cutting Width 42" (106,7 cm) Oil Capacity 64 oz (1,9 L) 46"... - Page 32 Briggs & Stratton Power Products Group, LLC P.O. Box 702 Milwaukee, WI 53201-0702...
