Setup Instructions
EN
Instrucciones de montaje
ES
EN
Note: Follow the procedures that apply to your model.
ES
La nota: Siga los procedimientos que aplican a su modelo.

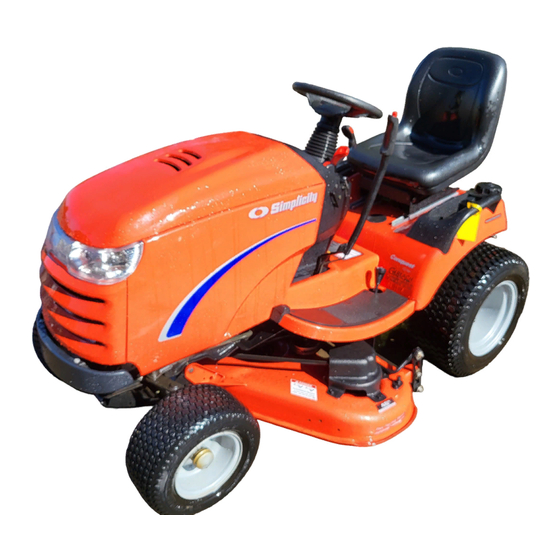

2690816
46˝
2690914
2690950
EN

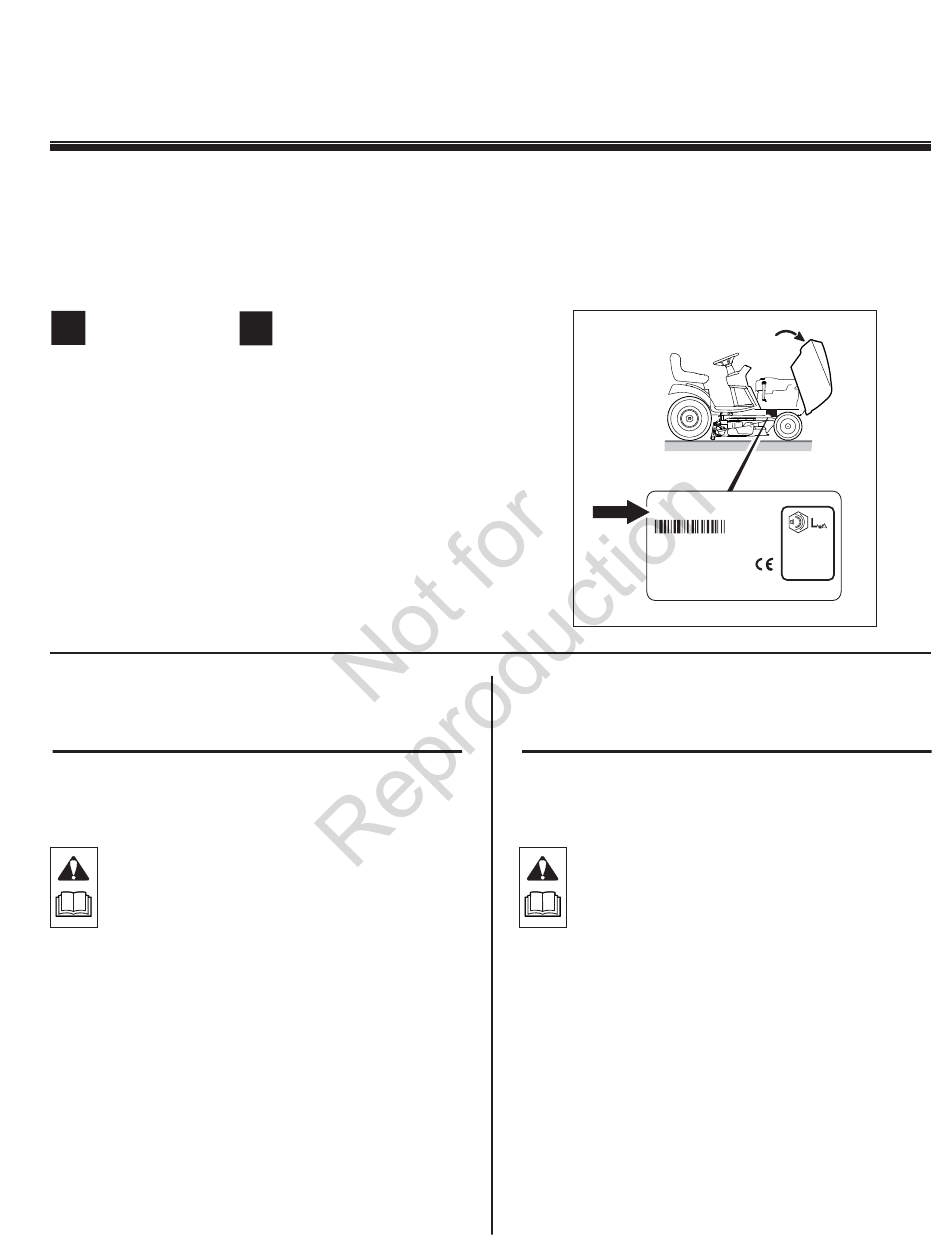

Attention Setup Personnel:
This unit should NOT be delivered to a customer until
assembly has been completed according to these
instructions.
The safety warnings provided in this guide
and in the tractor's operator manual included
with the unit contain important information
that must be followed when assembling,
setting-up, operating, servicing, transporting,
or storing the unit.
These warnings are highlighted by the safety alert
triangle symbol shown above, which signifi es that an
important safety message is being provided.
You must read, understand, and follow these warnings
and instructions, and use safe shop and work practices
at all times while working on or around this unit and all
other outdoor power equipment.
Copyright © 2012 Briggs & Stratton Power Products Group, LLC
Milwaukee, WI, USA. All rights reserved.
BRIGGS & STRATTON POWER PRODUCTS is a registered
trademark of Briggs & Stratton Corporation
2690817
2690933
52˝
2690818
2690951
2690879
2690952
2690880
2690973
2690897
2690973-01
2690915
2690974
2690923
2691092-00
2690931
2691093-00
2690932
MODEL NO. xxxxx
SERIAL NO.
XXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXX
ES
Atención personal de instalación:
Esta unidad NO debe ser enviada a un cliente hasta
que se haya concluido el ensamblaje de acuerdo con
estas instrucciones.
Las advertencias de seguridad provistas
en estaguía y en el manual del operador del
tractor incluidas con la unidad contienen
importantes información que debe respetarse
al ensamblar, instalar, operar, realizar servicio,
transportar o almacenar la unidad.
Estas advertencias están destacadas por el símbolo
del triángulo de alerta de seguridad indicado arriba,
el que signifi ca que se está brindando un importante
mensaje de seguridad.
Usted debe leer, comprender y seguir estas
advertencias e instrucciones, y utilizar prácticas
seguras de taller y trabajo en todo momento al trabajar
en esta unidad o alrededor de la misma y en todos los
demás equipos motorizados para exteriores.
-1
xxxx min
xxx
x.x kW
xxxxxxxxxx
xxx kg
dB
20xx
1753220 (REV. B)
