Summary of Contents for Polaroid PL-POD1017

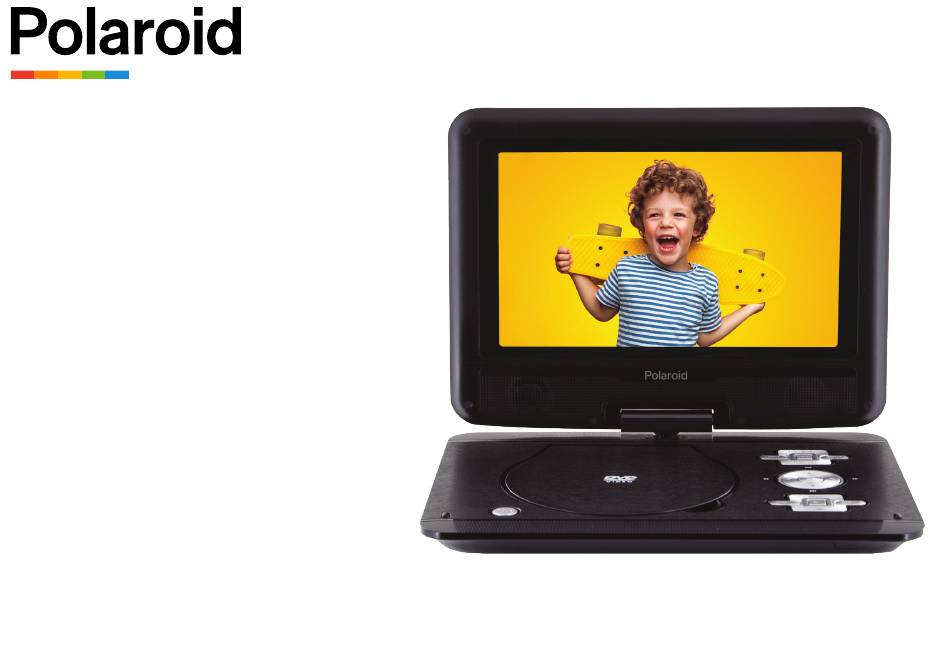

- Page 1 PL-POD1017 10.1” Portable DVD Player User Manual...
-
Page 2: Welcome
Welcome to your experience with Polaroid products. All Polaroid products we bring to you are manufactured to the highest standards of performance and safety. As part of our philosophy of customer service and satisfaction, your purchase is backed by a comprehensive 1 Year Warranty. -
Page 3: Table Of Contents
Contents Welcome Product Overview Controls and Connections Remote Control Operation Troubleshooting Specifications Compliance and Responsible Disposal... -
Page 4: Product Overview
Product Overview What’s in the box: A. 10.1” Portable DVD Player B. Remote Control C. AAA Batteries D. 12V Car Adaptor E. AC Adaptor F. AV Cable G. User Manual H. Warranty Certificate I. General Safety Warnings 4 | PRODUCT OVERVIEW... -
Page 5: Controls And Connections
Controls and Connections Front view 1. LCD TFT screen 2. Speakers 3. Infra-red signal receiver: Accepts remote control signal. Left LED Indicator: RED when charging; GREEN when fully charged. Right LED Indicator: RED when on standby; GREEN when the player is CONTROLS AND CONNECTIONS | 5... - Page 6 10. PREV/UP: Skip to the previous title, chapter or track; navigate up. 11. OK: Confirm or enter. 12. FWD/RIGHT: Fast forward; navigate right. 13. REV/LEFT: Fast rewind; navigate left. 14. NEXT/DOWN: Skip to the next title, 4. OPEN: Push down to open the disc compartment cover. chapter or track;...
- Page 7 21 22 23 23. AV IN Socket: See next page. 19. USB Slot: See below. 24. ON/OFF Switch: Turn ON/OFF power to the unit completely. 20. SD Card Slot: See below. 21. Headphone Jack: See below 25. DC IN: See next page. 22.
- Page 8 Send the image from the DVD player to a TV screen using the supplied AV cable. The AV cable must be connected to an external AV OUT TV device and the DVD screen will be off when viewing from a TV screen.
-
Page 9: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the AAA size batteries are correctly aligned and properly pushed into batteries place. included Precautions When Using Batteries • Do not use old and new batteries together. •... - Page 10 Buttons and functions LCD ON/OFF: Turns off the display while still playing audio to help save battery life. POWER LCD ON/OFF POWER: Put the DVD player on standby/on. NUMBER BUTTONS: Numerical input to directly access a specific VOL + / - : Increase/Decrease chapter or track.
- Page 11 OSD: Display/hide detailed information about the currently playing media. DVD/USB/SD DVD/USB/SD: Switch between DVD, SUBTITLE: Turn the subtitle on/off. USB and SD card playback mode. SUBTITLE STEP STOP TITLE/MENU STEP: Press to freeze the current frame, TITLE/MENU: Return to the disc’s ANGLE ZOOM GOTO...
-
Page 12: Operation
Operation Rotating the Screen Place the player on a level surface and open up the monitor vertically, while holding the lower side of the player. • To rotate the monitor for viewing from the Right side, turn it to the Right slowly. It can be turned up to 90°. •... - Page 13 • You can also recharge and run the player in the car with the supplied car power adaptor, which attaches easily to the car’s cigarette lighter. The car adaptor can only support vehicles with 12V output. Larger vehicles that may use 24V output are not supported.
- Page 14 • PROGRAM: Press the PROG button to access the playlist setup menu. For VCD, there are 16 settings from 1 to 16. Use the number keys to enter the track number for each item then select Play. For DVD, input the title and chapter numbers in the sequence you want to play them.
- Page 15 Using Headphones To listen to audio using Headphones, plug them into the EARPHONE socket on the right side of the player. The speakers will automatically disable the sounds output when headphones are connected. • Turn OFF the player before connecting/disconnecting the headphone cable as movements from moving the plug may cause disc damage.
- Page 16 Connecting to the TV • Connect the 3.5mm end of the supplied AV cable to the AV OUT jack of the Portable DVD Player. • Connect the Yellow RCA plug to the Video In jack of the TV. • Connect the Red RCA plug to the Audio In R jack of the TV. •...
- Page 17 System Setup Options Menu Operation • Press the SETUP button on the DVD player or the remote to display the system setup menu, where you can configure the operation of the player. • Use the and arrow keys to select the targeted setup page. •...
- Page 18 Screen Saver The screen saver will activate when you pause the video for over 5 minutes. Press any button to exit the screen saver. You can turn this setting on or off. When the screen saver is on for 5 minutes, the DVD player will go into standby mode. Press the power button on the remote control to turn the DVD player back on.
- Page 19 Default Restore to factory default settings. Language Setup Choose from a selection of languages for OSD (On-Screen Display), Audio, Subtitle and Menu language. Note: if the video disc does not contain the selected language, the default setting of he video will be selected. TFT Setup Adjust the brightness, Contrast, Hue and Saturation of the DVD screen.
-
Page 20: Troubleshooting
Troubleshooting If you encounter any problems with your DVD Player, please check this list of possible issues for a solution. If you don’t find a solution here, contact After Sales Support on 1300 886 649. Problem Solution • Make sure the power cable from the AC/car adaptor is firmly inserted into the socket on the right side of the player. - Page 21 Problem Solution • Check and replace the batteries, if necessary. • Check and ensure that two AAA size batteries are inside the compartment and that they are inserted and oriented properly. The remote control • Remove the obstacle in the transmission path. does not work.
-
Page 22: Specifications
Specifications Input: AC 100-240V, 50/60Hz Power adaptor Output: DC 12V, 1.0A Input: DC 12V 2A Car adaptor Output: DC 12V 2A Main unit Input: DC 12V 1A Compatible disc types DVD, Audio-CD, VCD, SVCD Battery 7.4V, 2000mAh Compatible with all DVD regions in PAL or NTSC format NTSC 22 | SPECIFICATIONS... -
Page 23: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging Compliance The packaging of your product has been This product complies with the Australian Safety selected from environmentally friendly Standard AS/NZS 60065 to ensure the safety of the materials and can usually be recycled. Please ensure product. - Page 24 1300 886 649 Polaroid, Polaroid Color Spectrum and Polaroid Classic Border Logo are trademarks of PLR IP Holdings, LLC, used under license . PLR IP Holdings, LLC does not manufacture this product or provide any Manufacturer’s Warranty or support.
