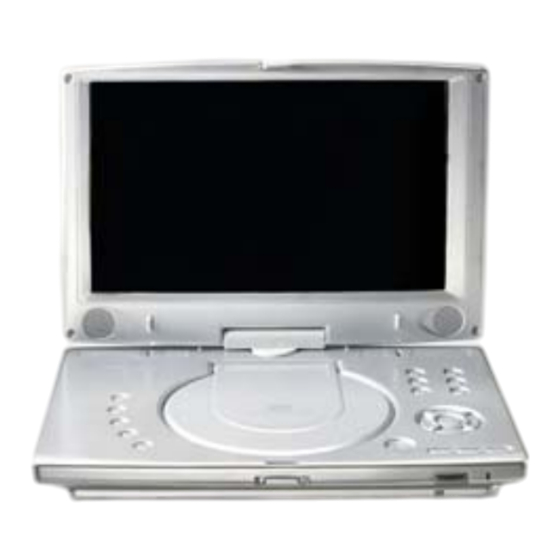

- Page 1 10” Portable DVD Player PDV-1008N Operation Manual 20041202 - 1 -...
-
Page 2: Table Of Contents
Table Of Contents Important Safety Instructions -------------------------------------------------------------------- Characteristic Features ---------------------------------------------------------------------------- Screen And Main Panel ---------------------------------------------------------------------------- Right and Left Side Panels------------------------------------------------------------------------ Remote Control -------------------------------------------------------------------------------------- Connections ------------------------------------------------------------------------------------------- Connecting to External AV Source---------------------------------------------------------------- Connecting to Normal Amplifier ------------------------------------------------------------------- Playback Preparations ----------------------------------------------------------------------------- Use Of Remote Control ---------------------------------------------------------------------------- Disc Formats Supported By This Player --------------------------------------------------------- Usage Of The Power Adapter ---------------------------------------------------------------------- Using Headphones ------------------------------------------------------------------------------------... -
Page 3: Important Safety Instructions
DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE. POWER SUPPLY: Connect the supplied adapter to the side of the DVD player in the slot marked “Power In”. Plug the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty inserting the plug, turn it over and reinsert it, if the unit will not be used for a long time, disconnect the plug from the outlet. - Page 4 Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Maintain well ventilated conditions around the product, Do not put product on bed, sofa or anything that blocks ventilation.
-
Page 5: Characteristic Features
Characteristic Features Excellent Sound Dolby Digital output for excellent sound. High Resolution MPEG2 decoding format achieves more than 500 lines of horizontal resolution. Special Functions Supports multi-angle view, subtitle caption. Compatibility Compatible with DVD, CD and PICTURE CD discs. Particular Performance Multi-speed, fast forward, fast backward, slow play and repeat playback. -
Page 6: Screen And Main Panel
Screen and Main Panel 1. LCD display latch Press to open the LCD screen. 2. Disc tray cover For disc to be put in 3. OPEN button Press to open the disc tray cover. 4. Remote sensor Receive the remote control signal for operation. -
Page 7: Right And Left Side Panels
Forward scan button Press to scan forward. 17. Speaker For enjoying high quality stereo music. 18. LCD screen Present high resolution picture. 19. Latch hook 20. TFT- Switch button Press to turn on or off the LCD screen display. 21. ROTATE button Press to rotate the picture up and down 180 degrees. -
Page 8: Remote Control
Direction buttons Press to select menu items. 5. ENTER button Press to confirm the items or setting. 6. SETUP button Press to access the DVD player’s remove setup menu. 7. 0-9 number buttons Select numbers by pressing these buttons. PREV SKIP button Press to go to beginning of current track. - Page 9 Remote Control NEXT SKIP button Press to go to next chapter. 10. SUBT button When a DVD is playing, press to select a subtitle language or to turn subtitles off, if the DVD disc contains multiple subtitles. 11. ANGLE button Press to access various camera angles, if the DVD disc contains multiple camera angles.
-
Page 10: Connections
DVD player to is switched off and unplugged from the power supply. The easiest way to connect the DVD player to a television is via the supplied Audio/Video connections. Connect the audio/video cable from the DVD player to the TV’s audio/video inputs. -
Page 11: Playback Preparations
Playback Preparations Usage of Remote Control Refer to the drawing of the back of the remote control and remove the empty battery receptacle. Prior to shipping, a separating film was applied to the battery. Remove this film. Insert the battery into the receptacle and insert the receptacle into the remote. For best results, aim the remote directly at the player’s receiving window within the range of 15 feet, and angles of 60 degrees. -
Page 12: Disc Formats Supported By This Player
Playback Preparations Disc Formats Supported by this Player DISC LOGO The operating method of some DVD discs is specified by the software maker. Please refer to the instruction manual of the disc. Care of Discs Do not touch the playing surface of the compact disc. -
Page 13: Usage Of The Power Adapter
Usage of Adapter The player is supplied with a switching power adapter. 1. Connect AC adaptor to the side of the DVD player in the slot. 2. Plug the two-prong end of the power cord to a grounded electrical socket. -
Page 14: Power Supply
Power Supply Using a Car Adapter You can use Car Adapter while in a vehicle: Connecting the Car Adapter Power Plug into the unit’s Power Jack and the other end to the Vehicle Cigarette Lighter Socket: Quick Tips • Do not operate the unit or view video software while driving a vehicle. •... -
Page 15: Play Operation
Play Operation Please read these instructions carefully before using your DVD player for the first time. Turn on the player’s power by switching the POWER switch on the side of the player to “ON”. Press OPEN button on front panel to open the disc cover. - Page 16 Play Operation Stop 1. During playback, press the STOP button once on the remote control to stop playing. 2. Press the Play/Pause button, and then the player will play from the point where it stopped. Mode During playback, press the MODE button on the control panel to change the aspect ratio on the screen.
-
Page 17: System Setup
System Setup You can change the default settings to customize performance to your own preference. Remove the disc from the disc tray and press the ‘SETUP’ button on the remote control, the settings menu will appear. It includes General Setup, Speaker Setup, Dolby Digital Setup, Video Setup and Preference setup. -
Page 18: Speaker Setup
System Setup Captions You can choose captions on or off on screen during playback. Screen Saver When activated, the screen saver automatically works if there has been no operation for a period of time. Last Memory You can set the function on or off. Select on, it will start playing from the stop point. -
Page 19: Preference Page
DVD discs contain up to 8 audio bit streams. For Example: English, French etc. To select the audio bit stream you prefer press the AUDIO button on the remote control during playback. The DVD player will play the next audio bit stream every time you press the AUDIO button in succession. -
Page 20: Playback Functions
(point A) you wish to play repeatedly. Press the A-B button again at the end of the segment (point B). The DVD player will automatically return to point A and repeat playback of the selected segment (A-B). To resume normal playback, press the A-B button again. - Page 21 Playback Functions Search by time During DVD disc playback, press the GOTO button on the remote control once, there will be a menu displayed on the screen. You can set or select items for your preference. Use the direction buttons to select items, press the ENTER button to enter and use the direction buttons to select the desired item.
- Page 22 Playback Functions Playing a JPEG JPEG is a common picture format that has few bytes and low loss rate of picture. Hundreds of pictures can be stored on a disc in this format. Normal Playback Load a JPEG disc in. After reading the disc, the OSD will display the menu. Use the direction buttons and ENTER button to choose items.
-
Page 23: Special Features Of Revolving Lcd Screen
4. At the final position (position D) the screen faces upward, with its back to the operation panel. 5. Your Portable DVD Player includes a sturdy carrying bag/mount for the ultimate in portable convenience! The bag/mount is easy to attach and fits on nearly any car or truck headrest. -
Page 24: Car Bag
Car Bag Your Portable DVD Player includes a sturdy carrying bag/headrest mount for the ultimate in portable convenience! The bag/mount is easy to attach and fits on nearly any car or truck headrest (see photo above) - 24 -... -
Page 25: Troubleshooting
Troubleshooting Symptom The player doesn’t play. There is no sound. There is no picture. Poor AV performance. Cannot continue to play and play a section repeatedly. The remote control does not work. Other possibilities: Static or other external interfere may cause the player to function abnormally. In this case unplug the power-supply cord from the outlet and plug it in again to reset the player so that normal operation can resume. -
Page 26: Specifications
Specifications LCD screen size Laser Wavelength Video System Frequency Response Audio Signal-to-noise Rate Audio distortion + noise Channel Separation Dynamic Range Audio Out Audio Out Video Out Video Out Power AC100-240V - 50/60Hz Power Consumption < 25W Dimensions 267mm×175mm×33mm (L/W/H) Weight 0.95 kg Compliance with FCC, FDA - cUL listed E209155... - Page 27 US call 1-866-289-5168, in Canada call 1-866-301-7922 and in Mexico call 01-800-400-2443. “Polaroid” is a registered trademark of Polaroid Corporation of Waltham, MA USA and licensed for use on the PDV-1008N to Petters Consumer Brands, LLC. Add a battery to your portable DVD player for added flexibility and enjoyment.
