Summary of Contents for Polaroid PDV-0700

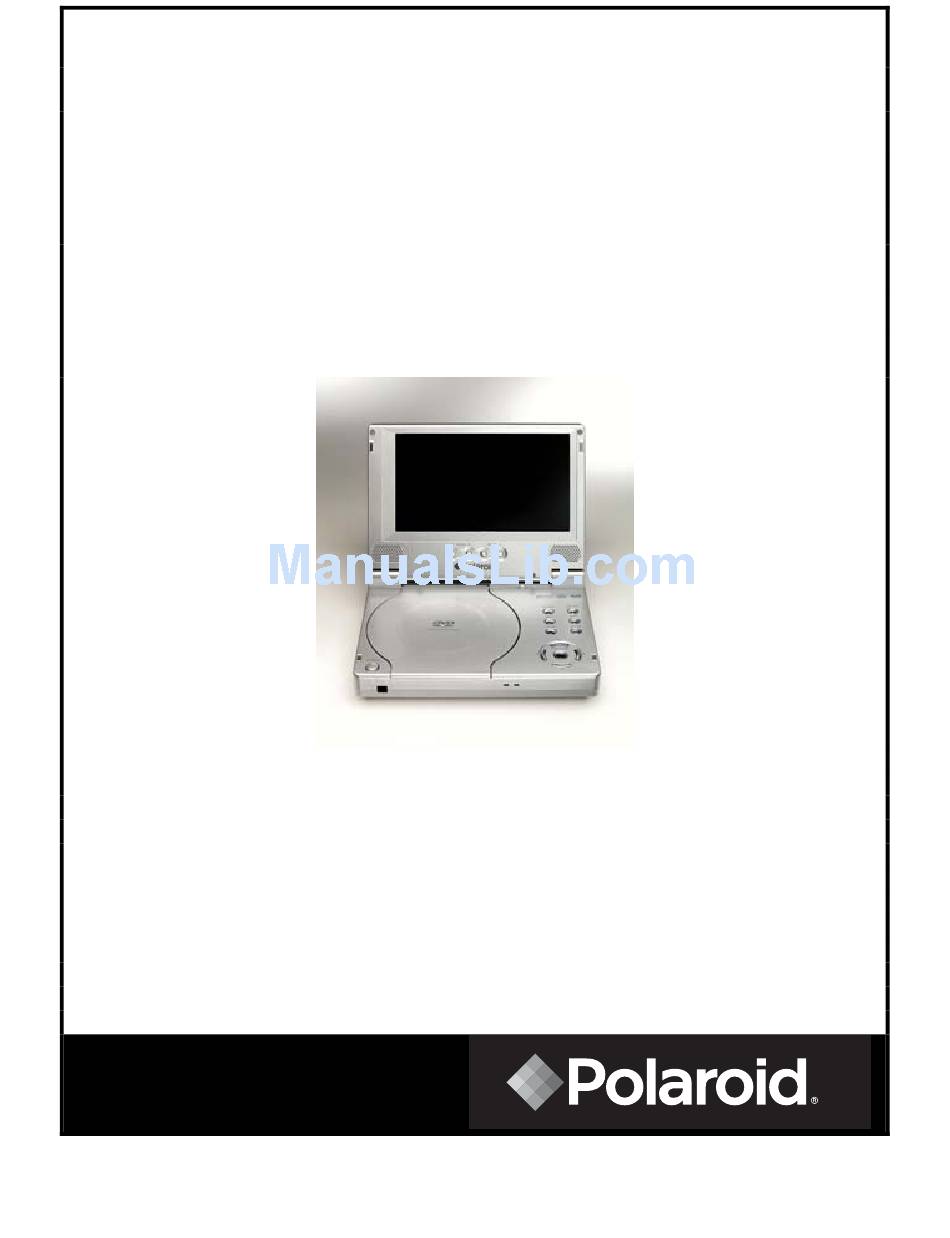

  • Page 1 7” Portable DVD Player PDV-0700 Operation Manual 20040928...
  • Page 2: Table Of Contents

    Contents Safety Precautions ... 3 Precautions with Moisture ... 5 Function Features ... 6 Parts Introduction ... 7 Remote Control ... 8 Connections ... 10 Playback Preparations ... 11 ■ Usage of Remote Control ... 11 ■ Disc Formats Supported ... 12 ■...
  • Page 3: Important Safety Instructions

    Important Safety Instructions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 4: Copyright Protection

    Important Safety Instructions IMPORTANT FOR LASER PRODUCTS 1. Read these instructions. 1. CLASS 1 LASER PRODUCT 2. Keep these instructions. 2. DANGER: Visible laser radiation when open and interlock failed or defeated. 3. Heed all warnings. Avoid direct exposure to beam. 4.
  • Page 5: Precautions With Moisture

    Precautions with Moisture Under the following circumstances, moisture may appear on the lens of the product, which is the most sensitive part of the DVD player: - The DVD player is suddenly moved from a cold place to a warm place. - A room is heated while the DVD player starts operating, or the DVD is placed by an air-conditioner.
  • Page 6: Function Features

    Function Features 1. EXCELLENT SOUND Dolby Digital delivers great sound. 2. HIGH RESOLUTION MPEG2 decoding format achieves more than 500 lines of horizontal resolution. 3. SPECIAL FUNCTIONS Supports multi-angle, excessive language caption and parental-lock. 4. COMPATIBILITY 10. EARPHONE OUTPUT Plays DVD, CD, CD-R, CD-RW, PICTURE CD and MP3 discs.
  • Page 7: Parts Introduction

    Parts Introduction DVD Player 1. OPEN button 2. Remote sensor 3. Disc cover 4. Indicator: Lights red when the power switch is on. 5. Indicator: Lights green when the player is in operation. 6. ENTER button 7. Direction buttons 8. TITLE button 9.
  • Page 8: Remote Control

    Remote Control 1. PWR button -Press to turn the player on or off. 2. INFO button -Press for detailed information on the disc playing. -Press again to remove information from screen. 3. TITLE button -Press to display title menu if present on the disc.
  • Page 9 Remote Control NEXT SKIP button -Press to go to next chapter. 10. SUBT button -When a DVD is playing, press to select a subtitle language or to turn subtitles off. 11. ANGLE button -Press to access various camera angles (if the DVD disc contains multiple camera angles).
  • Page 10: Connections

    Connections Connecting to a TV Audio/video connections 1. Always ensure that the DVD player, TV and any other electrical equipment you are connecting the DVD player to is switched off and unplugged from the power supply. 2. The easiest way to connect the DVD player to a television is via the supplied Audio/Video connections.
  • Page 11: Playback Preparations

    Playback Preparations Using the Remote Control Referring to the drawing above, remove the empty battery receptacle. Prior to shipping, a separating film was applied to the battery. Remove this film. Press the battery into the receptacle and insert the receptacle into the remote. For best results, aim the remote directly at the player’s receiving window from a range no greater than 15 feet, and at angles no greater than 60 degrees.
  • Page 12: Disc Formats Supported

    Playback Preparations Disc Formats Supported by this Player The unit can play discs bearing any of the following logos: DISC LOGO The operating method of some DVD discs is specified by the software maker. Please refer to the instruction manual of the disc. The DVD Player will play most recordable (CD-R) or erasable (CD-RW) CDs, but playback of CD-R or CD-RW discs created on a computer requires proper formatting and finalization of the disc for audio playback.
  • Page 13: Usage Of Switch Adapter

    Playback Preparations Usage of Switching Power Adapter The player is supplied with a switching power adapter. 1. Connect AC adaptor to the side of the DVD player in the slot marked “Power In”. 2. Connect the rabbit joint end of the AC adaptor to the power cord. 3.
  • Page 14: Power Supply

    Power Supply Using and Charging the Battery Pack Charge the Battery Pack before using it the first time. Charging time is normally 3-4 hours. Do not charge the Battery Pack more than 4 hours as it could reduce service life. Normally, the Battery Pack can be charged approximately 300 times. When fully charged, the Battery Pack delivers 3-4 hours of continuous power.
  • Page 15: Detaching Battery Pack

    Detaching Battery Pack Detaching Battery Pack from the unit: If the player is not going to be used for a long period of time, we recommend that you detach the Battery Pack. Even if the unit is powered down, the unit is still consuming some power in STANDBY mode.
  • Page 16: Basic Operations

    Basic Operation Please read these instructions carefully before using your player for the first time. Turn on the player’s power by switching the POWER switch on the side of the player to “ON”. Press OPEN button on front panel to open the disc cover. Remove the lens cover.
  • Page 17: Stop

    Basic Operation Stop During playback, press the STOP button on the remote control to stop playing. Press the PLAY button again and the player will play from the point where it stopped. Mode During playback, press the mode button on the control panel to change the aspect ratio on the screen.
  • Page 18: System Setup

    System Setup GENERAL SET-UP You can change the default settings to customize performance to your own preference. 1. Remove the disc from the DVD drive and press the ‘SETUP’ button on the remote control, the settings menu will appear. It includes General Setup, Speaker Setup, Dolby Digital Setup, Video Setup and Preference setup.
  • Page 19: Speaker Setup

    System Setup 3. OSD Language here are five kinds of different OSD languages for selection. You can select t according to your preference. 4. SPDIF Output This item is used to set the format of digital audio. ‘SPDIF OFF’ turns off the digital audio;...
  • Page 20: Video Setup

    System Setup Video Setup 2. Brightness U se this item to adjust brightness level. 3. Contrast Use this item to adjust contrast level. Preference Page 1. Audio, Subtitle, Disc Menu This setting allows you to hear or read subtitles of a DVD in your choice of English, Spanish or French.
  • Page 21: Playback Functions

    Playback Functions Fast Forward & Rewind Press the buttons to fast forward or rewind. Slow Forward & Rewind Press the SLOW button to slow forward or rewind. Repeat 1. Repeat a title, chapter or track. Press the REPEAT button on the remote control. Pressing the REPEAT button repeatedly will display a menu as follows: Chapter, Title and All.
  • Page 22: Search By Time

    Playback Functions Search by time You can use the GOTO button to search by time, namely to play from a specific time. During DVD playback, press the GOTO button once and TV screen will display the title or chapter, then you can use number buttons to select any one of them. Press the GOTO button twice, then you can use number buttons to input the time you desired (hour, minute, second), and the player will play from the inputted time.
  • Page 23: Playing A Jpeg Disc

    Playback Functions Playing a JPEG JPEG is a common picture format that requires very little storage per image with a low loss rate in resolution. Hundreds of pictures can be stored on a disc in this format. In order to create digital albums from film pictures, have your film developer make a ”PICTURE CD”, in JPEG format.
  • Page 24: Care Of Discs

    Care of Discs How to hold discs When loading or removing discs, do not touch their playing surfaces. Cleaning Fingerprints or other dirt on the disc may affect sound and picture quality. To clean your discs, use a soft clean cloth to wipe them.
  • Page 25: About The Rechargeable Battery

    About the Rechargeable Battery Your portable DVD player comes with a lithium ion rechargeable battery that attaches to the bottom of the player. 1. Under normal working conditions, the battery can be charged and discharged over 300 times. 2. The properties of the rechargeable battery are: 7.4 Volts, with a capacity of 4200mAh, interior lithium ionic electric circuit protection for recharge and discharge.
  • Page 26: Troubleshooting

    WARNING: the battery in standby mode. To get out of standby mode please connect the battery and portable DVD player to AC or DC power. Others possibilities: Static or other external interference may cause the player to function abnormally. In this circumstance unplug the power-supply cord from the outlet and plug it in again to reset the player so that normal operation can resume.
  • Page 27: Specifications

    Specifications TFT screen size Laser Wavelength Video System Frequency Response Audio Signal-to-noise Rate Audio distortion + noise Channel Separation Dynamic Range Analog Audio Out Audio Out Digital Audio Out Video Out Video Out Power AC100-240V~50/60Hz Power Consumption Dimension w/o battery 7.7”...
  • Page 28 US call 1-866-289-5168, in Canada call 1-866-301-7922 and in Mexico call 01-800-400-2443. “Polaroid” is a registered trademark of Polaroid Corporation of Waltham, MA USA and licensed for use on the PDV-0700 to Petters Consumer Brands, LLC. - 28 -...
