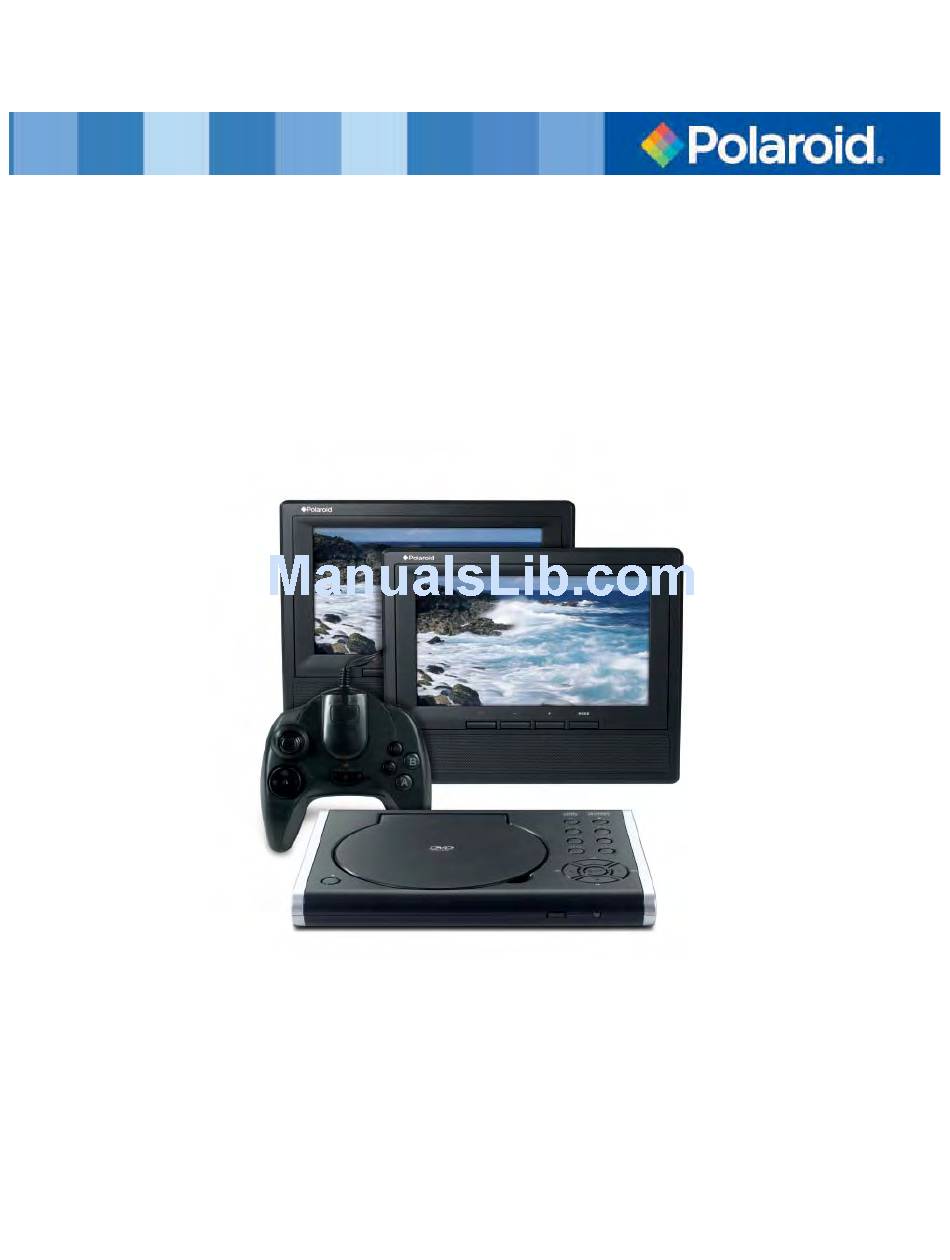

- Page 1 Portable DVD Player with Two 7” LCD Screens User’s Manual 20070328...
-
Page 2: Important Safety Instructions
Important Safety Instructions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightening fl ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi... - Page 3 Important Safety Instructions CAUTION: These servicing instructions are for use by qualifi ed service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualifi ed to do so. Refer to service manual for servicing instructions.
- Page 4 To fi nd out how to properly dispose of this product, please go to www.polaroid. com and click on “Company“ or call the customer service number for your country...
-
Page 5: Features
Features High-quality Audio and Video • Excellent Sound: Dolby Digital Decoder delivers great sound. • AV Input: External audio, video can be connected to most external AV sources. • AV Output: Analog audio output can be connected to external amplifi er. Advanced Playing Functions •... -
Page 6: Accessories
Accessories Your portable DVD player may not include all accessories listed below. To purchase additional accessories for your player, visit www.polaroid.com. ITEM ITEM NAME NAME Remote Control (with battery) Power Supply Cord with AC Adaptor DC Adapter (Car Adapter) Audio/Video Cord... -
Page 7: Table Of Contents
Contents Important Safety Instructions Features Accessories View of Front Panel View of Side Panels Remote Control System Connections Power Supply Notes on Discs Playback Operation DVD Playback CD Playback JPEG Playback System Setup Straps Defi nitions Troubleshooting Specifi cations... -
Page 8: View Of Front Panel
Indicator light: will light when the unit is on Remote sensor MODE button: press to enter the brightness, contrast, or color adjusting mode. + button: press to increase adjustments - button: press to decease adjustments Standby button * Your portable DVD player may differ from the player shown. -
Page 9: View Of Side Panels
AV1 and DC1 OUT: Used to connect to AV and DC of a monitor AV2 and DC2 OUT: Used to connect to AV and DC IN of second monitor * Your portable DVD player may differ from the player shown. -
Page 10: Remote Control
AUDIO button: press to select different languages when a DVD disc with multiple audio languages is being played; press to select different audio tracks when a CD disc is being played * Your portable DVD player may differ from the player shown. -
Page 11: Using The Remote Control
Remote Control Installing the Remote Control Battery Pull the battery holder out from the remote control as shown below. Load a new battery properly with the (+) side up. Insert the battery holder back into the remote control. Battery Type: CR2025 3V Battery service life: approximately 1 year under normal use (at room temperature) Using the Remote Control Point the remote control to the remote sensor on the player within a 5-meter range and 60-degree angles, with-... -
Page 12: System Connections
System Connections • Always ensure that the DVD player, TV, and any other electrical equipment to be connected are switched off and unplugged from the power supply. • Ensure that you observe the color coding when connecting audio and video cables. Connecting to a LCD screens Connecting to the Headphones Follow the drawing below to connect the DVD player... -
Page 13: Power Supply
Power Supply Using the AC Adapter The player is supplied with an AC adapter for powering the player and charging the battery. Connect the AC adapter to the left side of the DVD player marked DC 9/12V IN. Plug the two-prong end of the power cord into a grounded electrical outlet. The power indicator lights red when charging the battery and green when complete. -
Page 14: Notes On Discs
Notes on Discs Compatible Disc Formats DISC LOGO DIAMETER PLAYBACK TIME / PLAYABLE SIDES 133 min (SS-SL) 242 min (SS-DL) 12 cm 266 min (DS-SL) 484 min (DS-DL) 41 min (SS-SL) 75 min (SS-DL) 8 cm 82 min (DS-SL) 150 min (DS-DL) 12 cm 74 min 8 cm... -
Page 15: Playback Operation
Press and hold several seconds to change the aspect ratio among 16:9, 4:3, 16:9 overturn, and 4:3 overturn. * Your portable DVD player functions may differ from the player shown. -
Page 16: Dvd Playback
Playback Operation Features are available on both the DVD player and remote control unless otherwise noted. DVD Playback When you load a disc in, the player will search the disc and play it ENTER/ENT button automatically. Press the direction buttons ( ) to highlight the item you want to play and press the ENTER/ENT button to confi... -
Page 17: Cd Playback
Playback Operation DVD Playback (continued) Press to display or cancel the detailed information of the disc during playback. INFO button (remote only) DVD discs can contain up to 8 audio bit streams. For example: English, French, etc. To select the audio bit stream you prefer, press the AUDIO button during AUDIO button playback. -
Page 18: Jpeg Playback
Playback Operation JPEG Playback Pre-Operation Load a JPEG in the disc tray and the player will search and play the disc automatically. The screen displays the root folder with several subdirectories/sub-folders. Use the buttons to select desired folder. Then press the ENTER/ENT button to confi rm your selection. The screen enters the sub-folder with several fi... -
Page 19: Rotating Pictures
Playback Operation JPEG Playback (continued) Rotating Pictures While viewing a picture, use the direction buttons to rotate the picture. ◄ Press the button to rotate the current picture counterclockwise: ► Press the button to rotate the current picture clockwise: Press the button to rotate the current picture up and down: Press the button to rotate the current picture left and right:... -
Page 20: System Setup
There are several languages for you to choose. • Press the buttons to choose the desired language. • Press the ENT/ENTER button to confi rm your selection. • Press the button to exit. * Your portable DVD player functions may differ from the player shown. -
Page 21: Speaker Setup
System Setup General Setup (continued) SCREEN SAVER • This item is used to turn on and off the screen saver. • Press the buttons to highlight this item. • Press the button to access. • The default setting of this player is on. •... -
Page 22: Dolby Digital Setup
System Setup Dolby Digital Setup DUAL MONO • This item is used to set the channel output mode. • Press the buttons to highlight this item. • Press the button to access. • It includes L-mono, R-mono, and Mix-mono, Stereo by default. •... - Page 23 System Setup Preferences Setup (continued) SUBTITLE/DISC MENU • This item is used to set the menu language • Press the buttons to highlight this item. • Press the button to access. • There are several languages for you to choose. •...
-
Page 24: Straps
Straps To attach the DVD player to the car seat headrest: Place the DVD player on a soft and smooth surface with the bottom facing up. Loosen the strap and remove the buckle. Insert the strap through the holes (fi g. 1). Make sure the inside of the strap faces up. Thread the strap into the buckle (fi... -
Page 25: Defi Nitions
Defi nitions Letterbox screen This refers to a screen on which the playback picture of wide-screen DVDs is cut off at the left and right sides. Pan & Scan screen This refers to a screen on which the playback picture of wide-screen DVDs appears with black bands running along the top and bottom. -
Page 26: Troubleshooting
Troubleshooting If you suspect there is something wrong with the DVD player, immediately turn off the power. Disconnect the power connector and check that there is no smoke or excessive heat coming from the player. Never open or try to repair the player yourself. There are no user serviceable parts inside. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION... -
Page 27: Specifi Cations
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Confi dential unpublished works. © 1992-1997 Dolby Laboratories, Inc. All rights reserved. For service, support and warranty information, visit www.polaroid.com. “Polaroid” and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA.
