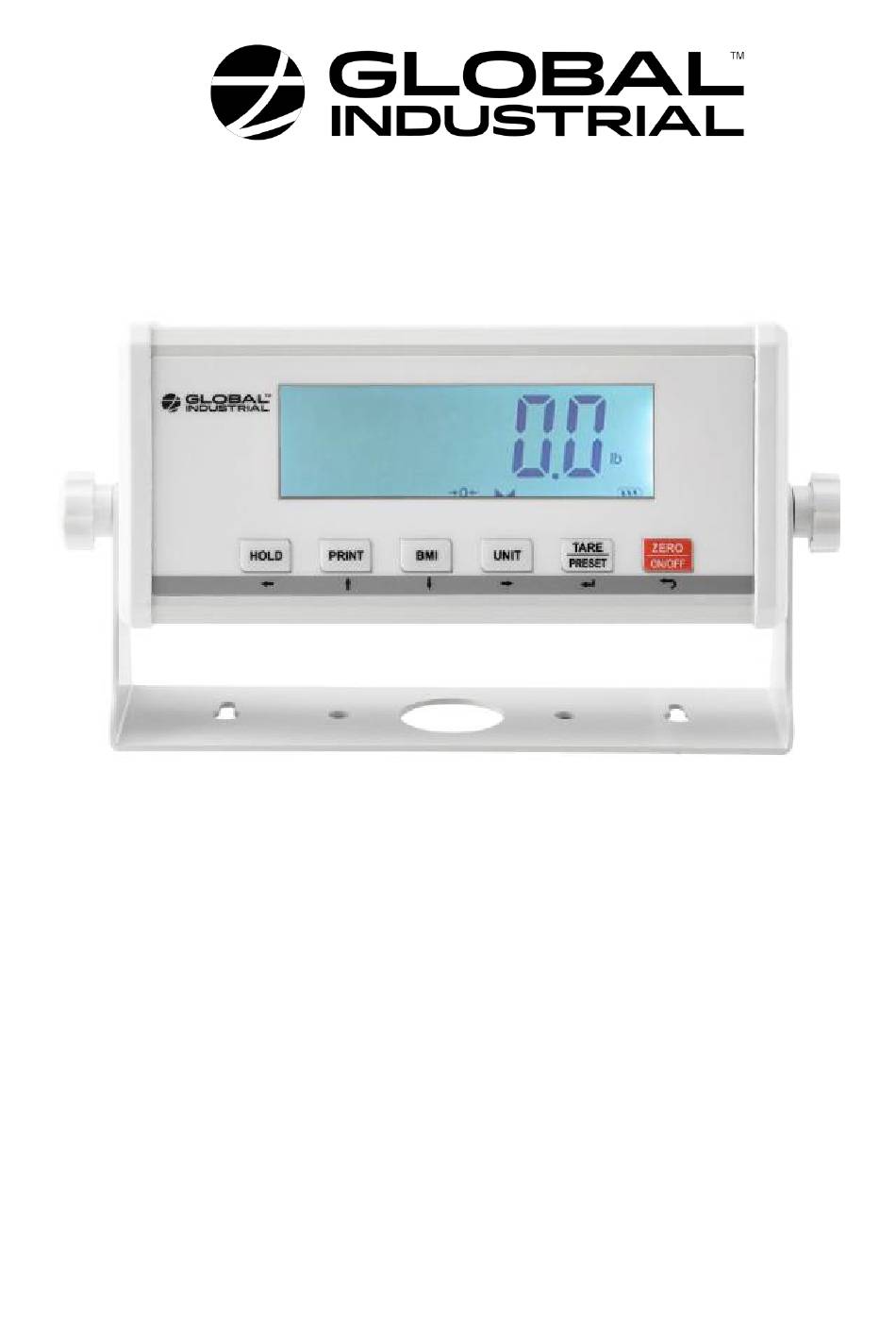

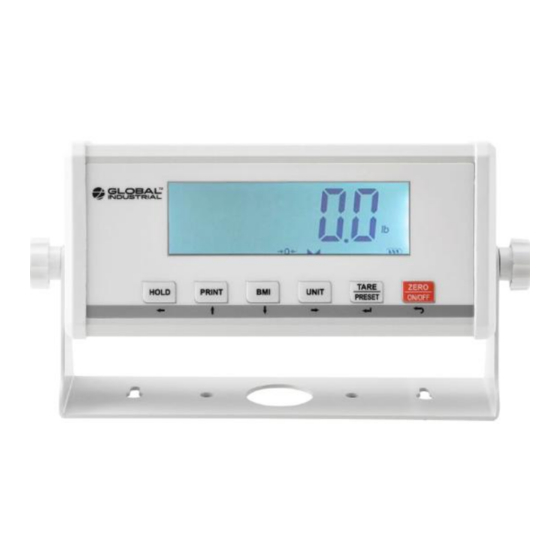

- Page 1 412586 Indicator Instruction Manual Contents subject to change without notice Version 1.0 Issue AA 412587 www.globalindustrial.com...
-
Page 2: Very Important
VERY IMPORTANT You are about to replace the indicator on below scales. The new indicator must be set up and calibrated locally in order to function accurately. Model Description Picture Wheelchair Scale 244701 1,000 lb x 0.5 lb Handrail Medical Scale, 244293 660 lb x 0.2 lb To do this, you need three (3) things:... - Page 3 Connect the new indicator to the scale base This is only a reference scale base picture, your scale base maybe a different one. 412586 www.globalindustrial.com...
- Page 4 NOTE: If you need to go from submenu 1 to submenu 2 or from submenu 2 to options, press the TARE/PRESET key. If you need to go from submenu 2 to submenu 1, use the HOLD key. Everything else stays the same. 412586 www.globalindustrial.com...
- Page 5 0. 0 02 0. 0 05 0. 0 1 0. 0 2 0. 0 5 PRIM. D 0. 5 0. 2 0. 1 0. 2 0. 5 PRIM. U t 100- SECND. N 2500 3000 125000 10N. D SP 412586 www.globalindustrial.com...
- Page 6 244701 244293 SubMenu1 SubMenu2 Option Setting Setting MOTION 1-255 OVER. L D 0-100 AD.FROM COM3 AD.H. S PD UNITS LB OZ IZSM 0-100 ZRO. P NT WEIGHT IN.IZSM CAL. Z RO WEIGHT WEIGHT LAST. Z . T 412586 www.globalindustrial.com...
- Page 7 LAST. Z . T ZRO. P NT SAZSM 0-100 AZSM 0-100 FLT1. T H 0-255 FLT1. S T 1-64 FILTER FLT2. T H 0-255 FLT2. S T 0-255 HOLD COUNT FUNC 100% PERCNT 100. 0 % 100. 0 0% 412586 www.globalindustrial.com...
-
Page 8: Calibration Instructions
Press and hold the HOLD and ZERO/ON/OFF button together until you see CONFIG. Press the down arrow until you see CAL. Press TARE/PRESET to enter the CAL (calibration) function. It should say CAL.ON. Press TARE again. It will say “Zero”. Press the 412586 www.globalindustrial.com... - Page 9 If at any point you saw CAL.Er, this means that there was an error. Press ZERO/ON/OFF twice to exit CAL mode and start over. Make sure that your 1st weight is more than 10% of FS and that the 2 weight is more than the first one but less than 100% of FS. 412586 www.globalindustrial.com...
