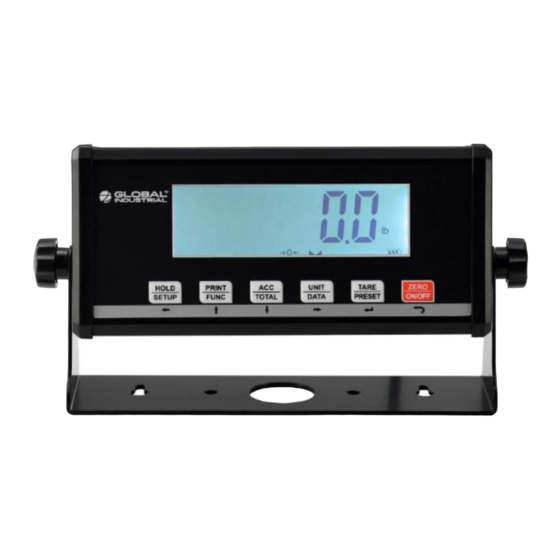

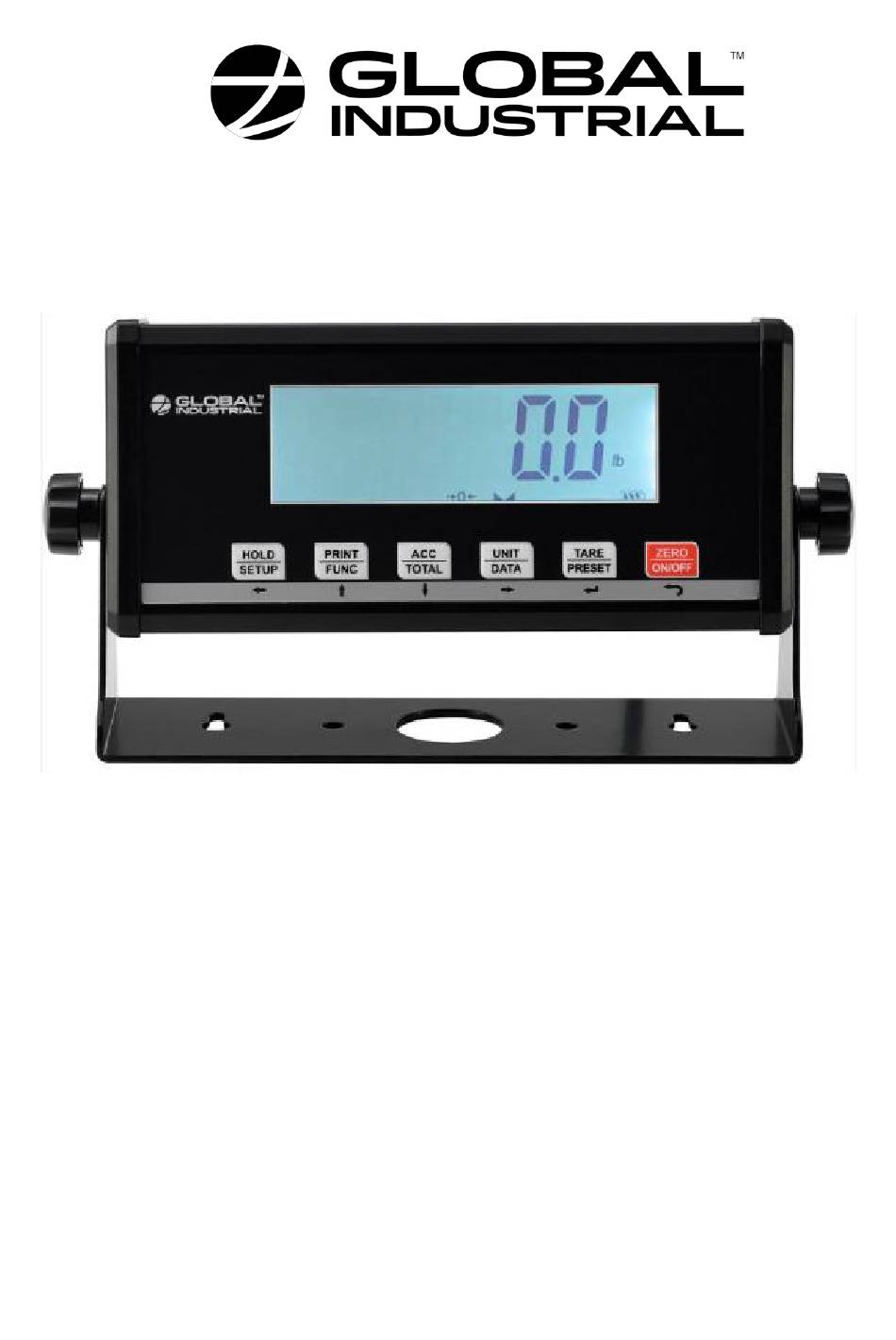

- Page 1 412587 Indicator Instruction Manual Contents subject to change without notice Version 1.0 Issue AA 412587 www.globalindustrial.com...
-
Page 2: Very Important
1,000 lb x 0.2 lb To do this, you need three (3) things: 1. The scale's user manual. 2. Accurate test weights (see the CALIBRATION section of the user manual for the quantity of weights necessary) to calibrate the scale. 412587 www.globalindustrial.com... - Page 3 This work is not covered by any warranty. Connect the new indicator to the scale base This is only a reference scale base picture, your scale base maybe a different one. 412587 www.globalindustrial.com...
- Page 4 NOTE: If you need to go from submenu 1 to submenu 2 or from submenu 2 to options, press the TARE key. If you need to go from submenu 2 to submenu 1, use the HOLD/SETUP key. Everything else stays the same. 412587 www.globalindustrial.com...
- Page 5 0. 0 02 0. 0 05 0. 0 1 0. 0 2 0. 0 5 PRIM. D 0. 5 0. 1 0. 2 0. 5 PRIM. U t 100- SECND. N 5000 5000 2500 2000 125000 10N. D SP 412587 www.globalindustrial.com...
- Page 6 MOTION 1-255 OVER. L D 0-100 AD. F ROM COM3 AD. H . S PD UNITS LB OZ IZSM 0-100 ZRO. P NT WEIGHT IN. I ZSM CAL. Z RO WEIGHT WEIGHT WEIGHT WEIGHT LAST. Z . T 412587 www.globalindustrial.com...
- Page 7 LAST. Z . T ZRO. P NT SAZSM 0-100 AZSM 0-100 FLT1. T H 0-255 FLT1. S T 1-64 FILTER FLT2. T H 0-255 FLT2. S T 0-255 HOLD COUNT FUNC 100% PERCNT 100. 0 % 100. 0 0% 412587 www.globalindustrial.com...
-
Page 8: Calibration Instructions
Your weights might be completely different than this example and that‟s ok. Go to section 6 CALIBRATION of the manual. It should be around page 25. Make sure that the scale platform is empty. Press and hold the HOLD/SETUP button until you see CONFIG. 412587 www.globalindustrial.com... - Page 9 If at any point you saw CAL.Er, this means that there was an error. Press ZERO/ON/OFF twice to exit CAL mode and start over. Make sure that your 1st weight is more than 10% of FS and that the 2 weight is more than the first one but less than 100% of FS. 412587 www.globalindustrial.com...
