Assembling/Installing Cross Rails - Munchkin Crib Instruction Manual

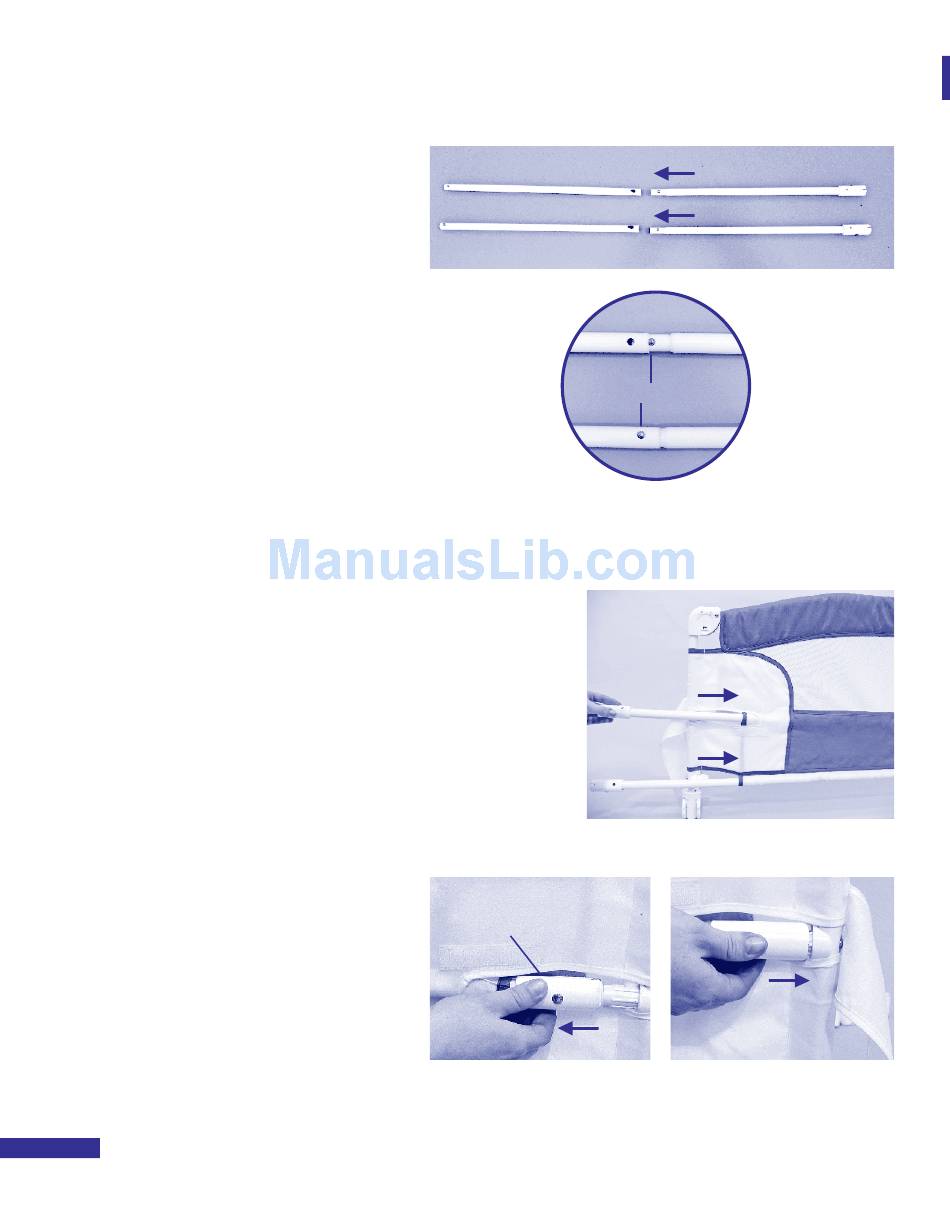

Assembling the Cross Rails
Depress the Locking Pin on one half and push
it into the other half of the rail. The Locking Pin
pops into place when the pieces are securely
attached, as shown in Fig. 1. Repeat for the
second Cross Rail.
Installing the Cross Rails
Detach the 2 Pocket Flaps on both sides of the
Bedrail. Insert the Cross Rails into the middle
and bottom pockets, as shown in Fig. 2. Starting
from the left side of the Bedrail, slide the small
end of the Cross Rail into the pocket. Depress
the Locking Pin and push into the Receiver on the
right side of the Bedrail. The Locking Pin pops
into place when the pieces are securely attached.
To secure the left side of the Cross Rail into the
corresponding Receiver, first depress the Locking
Pin, then pull back on the Locking Piece as shown
in Fig. 3. Insert the Cross Rail into the Receiver
and push the Locking Piece forward as shown
in Fig. 4. The Locking Pin pops into place when
the pieces are securely attached. Re-attach the 2
Pocket Flaps when finished.
Repeat steps for the bottom Cross Rail.
3
Locking Pin
Depress
locking pin
Pull
Back
Fig. 3
Fig. 1
Fig. 2
Push
Forward
Fig. 4
