Summary of Contents for Boya BY-BMM400

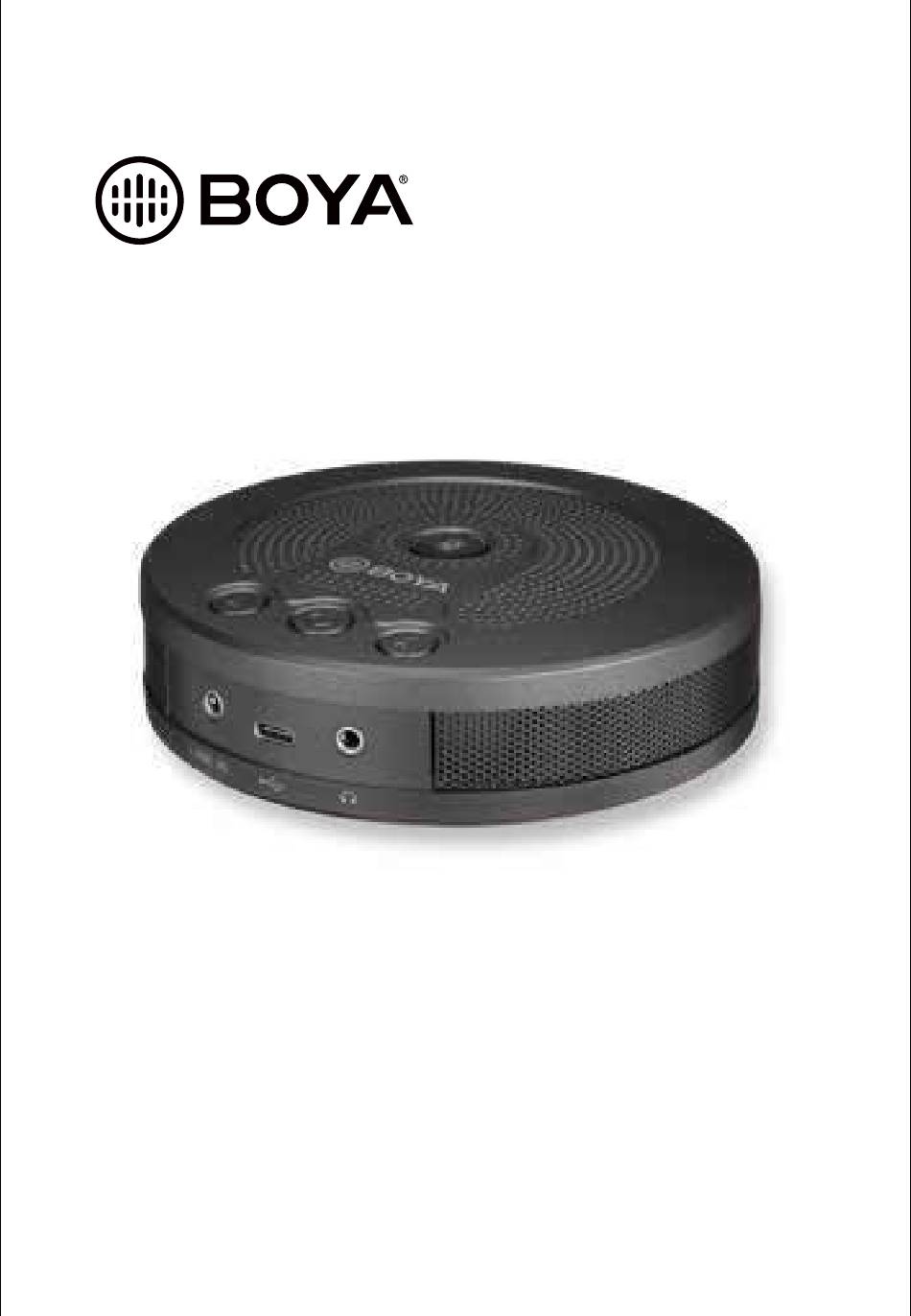

- Page 1 BY-BMM400 Mikrofon Speaker Konferensi Buku Manual...

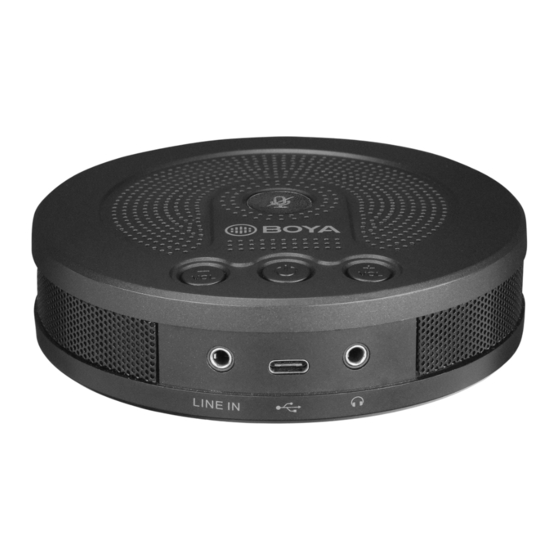

- Page 2 BOYA BY-BMM400 merupakan mikrofon konferensi omnidirectional dengan speaker, didesain khusus untuk mengambil video dan teconference. BY-BMM400 telah termasuk seluruh kabel yang mungkin diperlukan untuk bekerja dengan smartphone, tablet, komputer, dan lain sebagainya. Didesain compact dan disertai dengan tas, anda dapat membawa BY-BMM400 kemanapun untuk digunakan di ruang konferensi manapun.
- Page 3 Bagian-bagian:...
- Page 4 7. Headphone monitoring jack 8. 3.5mm TRRS connect cable When using 3.5mm TRRS connect cable, it requires self power by BY-BMM400's built-in lithium battery. 9. USB Type-C connect cable When using this cable, the power is supplied by Type-C devices.
- Page 5 3.5mm TRRS to lightning audio adapter (not inclued). 2. Open the audio-only or video recording app and start recording. previous audio you recorded. Note: When connecting to Android Type-C devices, please notice that the BY-BMM400 works only with OTG functions devices.
- Page 6 Memasang mikrofon ke komputer / laptop Set up for Windows 1. Connect the microphone to the computer with the supplied charge cable. 2. Select the microphone as the default device and click Start Menu→Control Panel→Sounds and Audio Devices. - Select BY-BMM400 and click OK.
- Page 7 - Select BY-BMM400 and click OK. 3. When the BY-BMM400 is connected to a Windows computer for follow the instructions on screen to complete installing drivers for the BOYA BY-BMM400. The above operation may need to be repeated when connecting to a new computer or another port on the same...
- Page 8 Memasang mikrofon ke produk Apple ① Connect the BOYA BY-BMM400 to Type-C port on your computer. ② Choose Apple Icon→System Preferences→Sound Icon - Select BY-BMM400 as sound input.
- Page 9 - Select BY-BMM400 as sound output. Fitur: - Compatible with smartphones, tablets, PC and more. - Ideal for video-shooting and phone call conference - Omni-directional polar pattern - Excellent sound quality - Portable and compact design - Pick up sound at 2m(6.6’) radius, with 360-degree coverage - 3.5mm headphone monitoring...
- Page 10 Spesi kasi Condenser Transducer： Omnidirectional Polar Pattern： 40-15,000Hz Frequency Response: 2.5W Output Power: Built-in lithium battery or DC 5V/500mA Power Requirements: 3.5mm TRRS audio interface USB Type-C audio interface Plug: USB-A audio interface Approx. 2.5h Charging Time: Approx 4.5h Built-in battery life: 2m (6.6ft) radius Coverage Range: 1.2m (3.9ft)
-
Page 11: Informasi Penting
Informasi Penting - If you do not intend to use the conference microphone for a long period, please remove the cable from it. - Do not touch the microphone while recording, as this will cause noise to be recorded. - Do not let the microphone close to high-voltage equipment or to cause the noise to be recorded. - Page 12 SHENZHEN JIAYZ PHOTO INDUSTRIAL., LTD. The BOYA logo is a trademark which is registered and owned by Shenzhen Jiayz Photo Industrial., Ltd. COPY RIGHT 2010-2020 深圳市 丰影像器材有限公司 地址:深圳市 街道章 大富路智能 端 园A16 TEL: 400 6131096 Email: sales@boya-mic.com www.boya-mic.com / www.jiayz.com...
