PXC348C
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance. The contents of this manual are subject to change without notice to improve quality.
Copyright © 2022 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved.
Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
All other trademarks are owned by their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXC348C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pixio PXC348C

Summary of Contents for Pixio PXC348C

  • Page 1 The contents of this manual are subject to change without notice to improve quality. Copyright © 2022 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved. Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.

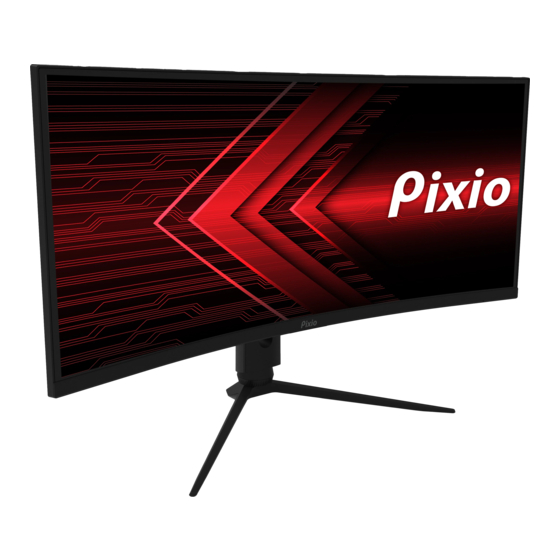

  • Page 2 34in UWQHD VA 144Hz Gaming Monitor PXC348C 210914014EMC-1...
  • Page 3 J O I N T H R E D T E R E D T E Reddit Keep up to date Sign up for our on the latest newsletter Discord news, take part in giveaways, and https://www.reddit.com/r/Pixio_Gaming www.pixiogaming.com interact with us! https://discord.com/invite/AK5nPezcAj...
  • Page 4 RISK OF ELECTRIC SHOCK DO NOT OPEN THE MONITOR. OPENING MONITOR BACK COVER WILL VOID YOUR WARRANTY. This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

  • Page 5: Before Using The Product

    Before Using the Product. Installation Space Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Make sure to allow some space. Do not install near heater or any other high temperature product or humidifier. Do not place the monitor near heat sources, such as radiators, and do not expose the monitor to direct sunlight for an extended period of time.
  • Page 6 Please do not try to take off the back panel to repair the monitor yourself. You may run the risk of shock and void the warranty as well. Contact Pixio directly for all RMA issues. Take note of elevation and temperature zone warnings on the adapters.

  • Page 7: Cleaning The Product

    Cleaning the Product. Take the following steps when cleaning. 1 Power off the product and computer. 2 Disconnect the power cord from the product. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
  • Page 8 Notice.
  • Page 9 Preparation. Product Includes:...

  • Page 10: Product Assembly

    Product Assembly: Open the package, assemble the Take out the product with foam still Stand assembly completed. stand base to the stand stem with 3 attached, and gently place it on a pieces of M4*16mm screws. Screw as desktop or table. And insert the shown in the illustration.

  • Page 11: Dimension And Weight

    Dimension & Weight. 115.2mm 811.8mm 100mm 292mm 475.8mm Net Weight: 7.1kg (15.65lb)
  • Page 12 ±5˚ Elevate Pivot...
  • Page 13 -5˚ 20˚ -20˚ 20˚ Swivel Tilt...

  • Page 14: Monitor Inputs

    Monitor Inputs. HDMI2 HDMI 2.0, 100Hz, FreeSync Premium, HDR HDMI1 HDMI 2.0, 100Hz, FreeSync Premium, HDR DisplayPort 1.4, 144Hz, FreeSync Premium, HDR Type-C 100Hz, 65W Power Charge, FreeSync Premium Earphone *WARNING: Always use the appropriate power cord.

  • Page 15: Control Panel

    Control Panel. Menu Short Cut Input selection Short Key Down Brightness Adjustment Short Key Menu Left Preset selection Short Key Menu Right Game Assist selection Short Key Menu Jog Button Multi directional button that helps Down Left Right navigate. Input Brightness Preset Game Assist...
  • Page 16 Main OSD Navigation How to Reconfigure 3440x1440 100Hz FreeSync Premium Move up the OSD Menu / Increase Value HDMI2(2.0) Down Move down the OSD Menu / Decrease Value Display Brightness Left Color Contrast Move left on the OSD Menu / Back Gaming Setup Black Equalizer BACK...
  • Page 17 OSD Menu. Display 3440x1440 100Hz FreeSync Premium •Brightness: Adjust the display brightness value from 0 to 100. HDMI2(2.0) Display Brightness •Contrast: Adjust the display contrast value from 0 to 100. Color Contrast •Black Equalizer: Adjust the Black Equalizer value from 0 to 100. Gaming Setup Black Equalizer Preset...
  • Page 18 Color 3440x1440 100Hz FreeSync Premium •Color Temperature: Select Color Temperature from Warm, HDMI2(2.0) Normal, Cool, sRGB, and User. Display Color Temperature Normal Color Gamma •Gamma: Select Gamma from Off, 1.8, 2.0, 2.2, and 2.4. Gaming Setup Saturation Advanced Settings •Hue: Adjust the Hue value from 0 to 100. Input Low Blue Light System Setup...
  • Page 19 Gaming Setup •FreeSync Premium: Turn AMD FreeSync Premium On or Off. •Overdrive: Select Overdrive from Off, Low, Middle, and High. •Game Assist: Select Game Assist from Timer, Crosshair(LoS), 3440x1440 100Hz FreeSync Premium and FPS Counter. HDMI2(2.0) Display FreeSync Premium Timer: Select Timer from Off, 15:00, 30:00, 45:00, 60:00 Color Overdrive and 90:00...

  • Page 20: Advanced Settings

    Advanced Settings 3440x1440 100Hz FreeSync Premium HDMI2(2.0) Display •HDR: Turn HDR On or Off. Color Over Clock •Over Clock: Turn Over Clock On or Off. Gaming Setup Advanced Settings Input System Setup V1.0 MOVE BACK ENTER...
  • Page 21 Input •Signal Input Source: Select from Auto Select, Type-C, DP(1.4), HDMI1(2.0) or HDMI2(2.0). 3440x1440 100Hz FreeSync Premium •Multi Input Mode: Select Off, Picture-By-Picture (PBP) or HDMI2(2.0) Picture-In-Picture (PIP) Display Signal Input Source Auto Select •Window 2 Position: Select from Upper-Left, Lower-Left, Color Multi Input Mode Upper-Right, or Lower-Right...
  • Page 22 System Setup •Language: Select English, 简体中文, 繁體中文, 한국어, 日本語. •RGB Light: Select Red, Green, Blue or Cycle. 3440x1440 100Hz FreeSync Premium •OSD Setup: Select OSD Setup from H Position, V Position, HDMI2(2.0) OSD Timeout, Transparency. Display Language English Color RGB Light Cycle H Position: Adjust 0-100 Gaming Setup...
  • Page 23 Adaptive-Sync. (AMD FreeSync or Nvidia G-Sync.) FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency. This feature will eliminate screen tearing and lag during game play. Improve your gaming experience. The displayed FreeSync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD graphics card.
  • Page 24 If you have any questions or comments, please contact us below. USA: cs@pixiogaming.com JAPAN: support@pixiogaming.jp www.pixiogaming.jp/support www.pixiogaming.com For your warranty information, please visit...
