PXC327 V2.0
The color and the appearance may differ depending on the product, and the specifications are subject to change without prior
notice to improve the performance.
The contents of this manual are subject to change without notice to improve quality.
Copyright © 2021 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved.
Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.
All other trademarks are owned by their respective owners. Rev.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXC327 V2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pixio PXC327 V2.0

Summary of Contents for Pixio PXC327 V2.0

  • Page 1 The contents of this manual are subject to change without notice to improve quality. Copyright © 2021 Pixio USA Inc. I Pixio is a registered trademark of Pixio USA Inc. I All Rights Reserved. Use or reproduction of this manual in parts or entirety without the authorization of Pixio USA Inc is prohibited.

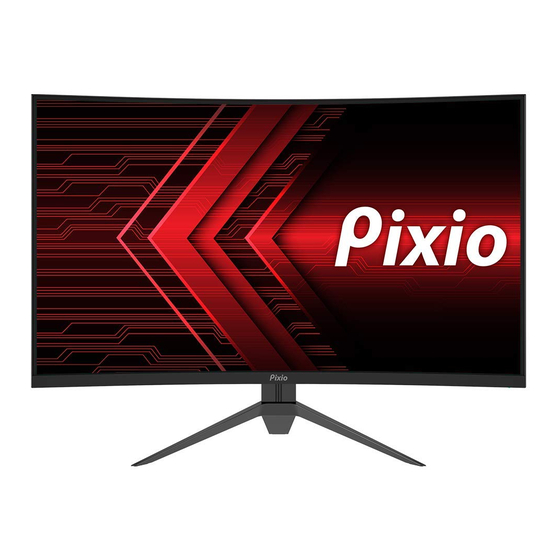

  • Page 2 31.5in VA WQHD 165Hz Gaming Monitor PXC327 V2.0 210429013EMC-1...
  • Page 4 RISK OF ELECTRIC SHOCK DO NOT OPEN THE MONITOR. OPENING MONITOR BACK COVER WILL VOID YOUR WARRANTY. This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

  • Page 5: Before Using The Product

    Before Using the Product. Installation Space Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Make sure to allow some space. Do not install near heater or any other high temperature product or humidifier. Do not place the monitor near heat sources, such as radiators, and do not expose the monitor to direct sunlight for an extended period of time.
  • Page 6 Please do not try to take off the back panel to repair the monitor yourself. You may run the risk of shock and void the warranty as well. Contract Pixio directly for all RMA issues. Take note of elevation and temperature zone warnings on the adapters.

  • Page 7: Cleaning The Product

    Cleaning the Product. Take the following steps when cleaning. 1 Power off the product and computer. 2 Disconnect the power cord from the product. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
  • Page 8 Notice.
  • Page 9 Preparation. Product Includes:...

  • Page 10: Product Assembly

    Product Assembly: 1. Assemble the base to the stand with sets of M4 x 16mm screws as pictured. Caution: Please do not put the monitor directly on a flat surface or press down on the monitor. There is a risk of damaging the monitor.

  • Page 11: Product Disassembly

    Product Disassembly: To remove the whole base, do as above: Push the Slider on the back cover. Take it out in the arrow pointed direction. Lift the base.

  • Page 12: Dimension And Weight

    Dimension & Weight. 97.7mm 711mm 100mm 410.3mm 251.4mm Net Weight: 6.2kg (13.67lb)

  • Page 13: Monitor Inputs

    Monitor Inputs. Firmware Update HDMI HDMI 2.0, 144Hz, FreeSync Premium, HDR DisplayPort 1.2, 165Hz, FreeSync Premium, HDR DisplayPort 1.2, 165Hz, FreeSync Premium, HDR Earphone *WARNING: Always use the appropriate power cord.

  • Page 14: Control Panel

    Control Panel. Menu Short Cut Input selection Short Key Down Brightness Adjustment Short Key Menu Left Preset selection Short Key Menu Right Game Assist selection Short Key Menu Jog Button Multi directional button that helps Left Right Down navigate. Input Preset Game Assist Brightness...
  • Page 15 Main OSD Navigation How to Reconfigure Move up the OSD Menu / Increase Value 2560x1440 165Hz FreeSync DP1(1.2) Down Move down the OSD Menu / Decrease Value Display Brightness Left Color Contrast Move left on the OSD Menu / Back Gaming Setup Black Equalizer BACK...
  • Page 16 OSD Menu. Display 2560x1440 165Hz FreeSync DP1(1.2) •Brightness: Adjust the display brightness value from 0 to 100. Brightness Display Contrast Color •Contrast: Adjust the display contrast value from 0 to 100. Gaming Setup Black Equalizer •Black Equalizer: Adjust the Black Equalizer value from 0 to 100. Input Preset User...
  • Page 17 Color 2560x1440 165Hz FreeSync DP1(1.2) •Color Temperature: Select Color Temperature from Warm, Color Temperature User Display Normal, Cool, sRGB, and User. Gamma Color Gaming Setup •Gamma: Select Gamma from Off, 1.8, 2.0, 2.2, and 2.4. Saturation Input •Hue: Adjust the Hue value from 0 to 100. Low Blue Light System Setup User Data...
  • Page 18 Gaming Setup •FreeSync Premium: Turn AMD FreeSync Premium On or Off. •Overdrive: Select Overdrive from Off, Low, Middle, and High. 2560x1440 165Hz FreeSync •Game Assist: Select Game Assist from Timer, Crosshair(LoS), DP1(1.2) and FPS Counter. FreeSync Premium Display Overdrive Color Timer: Select Timer from Off, 15:00, 30:00, 45:00, 60:00 Game Assist Gaming Setup...
  • Page 19 2560x1440 165Hz FreeSync Input DP1(1.2) Display Auto Select Color DP1(1.2) •Switch the signal input to Auto Select, DP1(1.2), DP2(1.2), HDMI (2.0). Gaming Setup DP2 (1.2) Input HDMI (2.0) System Setup User Data V2.0 MOVE BACK ENTER...

  • Page 20: System Setup

    System Setup •Language: Change the OSD menu display language •OSD Setup: Select OSD Setup from H Position, V Position, 2560x1440 165Hz FreeSync OSD Timeout, Transparency. DP1(1.2) Language English Display H Position: Adjust 0-100 OSD Setup Color V Position: Adjust 0-100 Audio Gaming Setup OSD Timeout: Adjust 15-60...
  • Page 21 2560x1440 165Hz FreeSync User Data DP1(1.2) User1 Load Display •User Data: Load/Save Brightness, Contrast, Black Equalizer, User2 Save Color Gaming Setup User3 Saturation, Preset, Color Temperature, Gamma Input Overdrive, Volume, Mute, Low blue light settings System Setup on the monitor. User Data V2.0 MOVE...
  • Page 22 Adaptive-Sync. (AMD FreeSync or Nvidia G-Sync.) FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency. This feature will eliminate screen tearing and lag during game play. Improve your gaming experience. The displayed FreeSync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD graphics card.
  • Page 23 If you have any questions or comments, please contact us below. USA: cs@pixiogaming.com JAPAN: support@pixiogaming.jp www.pixiogaming.jp/support www.pixiogaming.com For your warranty information, please visit...
