FireClass
FC430SAM/SAB
AVVISATORE OTTICO-ACUSTICO INDIRIZZABILE
SOUNDER BASE ADDRESS MODULES
1.
INTRODUZIONE
I moduli base avvisatori acustici indirizzabili (FC430SAM/FC430SAB) sono progettati per il
controllo della base avvisatore acustico alimentata dal loop, da utilizzare con i sistemi Fire
Class , una variante (FC430SAB) possiede un lampeggiatore integrato. Possono anche
essere usati per comandare un modulo base relè. Le unità sono usate per provvedere alla
decodifica degli indirizzi al posto di un rilevatore, garantendo così l'alimentazione da loop
dell'avvisatore acustico quando usata in combinazione con l'art. FC430SAB. Il colore dei
moduli è abbinato a quello delle basi acustiche. Gli art. FC430SAM/FC430SAB sono fissati
alla base tramite il dispositivo integrato di fissaggio della base acustica.
+
Note: Per assicurarsi che la base acustica risponda ai requisiti richiesti dalla
norma EN54-3, la SAM/SAB deve essere fissata alla base sonora tramite il per-
no di bloccaggio inserito sulla Base Universale da 5".
1.1 FC430SAM
L'art. FC430SAM è adatto per l'installazione a muro o a parete, ma non dispone
del LED integrato e del comando LED a distanza.
1.2 FC430SAB
L'avvisatore ottico-acustico indirizzabile FC430SAB è dotato di una luce lampeg-
giante inserita nella parte anteriore con una lente rossa adeguata . Questo è pro-
gettato per l'installazione a muro, su una base avvisatore acustico o su una base
convenzionale. Una volta installato a 2 o 2,2 metri da terra il lampeggiatore forni-
sce una luce ad alta intensità uniforme ed estesa. L'orientamento della base non
influisce sulla visualizzazione del lampeggiatore SAB.

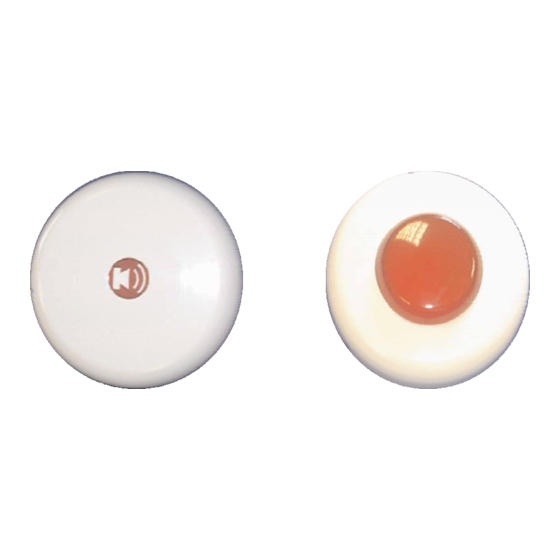

FIG.1
ITALIANO
FC430SAM
1.

INTRODUCTION

The Sounder Base Address Modules (FC430SAM/FC430SAB) are designed to
control a loop powered sounder base for use with the FCsystem, one variant
(FC430SAB) has an integral beacon. They may also be used to drive a relay base.
The units are used to supply the address decoding in place of a detector, thus pro-
viding a loop powered sounder when used in conjunction with an FC430SAB. The
modules are colour matched to the sounder bases. The FC430SAM/FC430SAB is
locked into the base using the locking device integral to the sounder base.
+
Note: To ensure that the sounder base meets the Access requirements of
EN54-3, the SAM/SAB must be secured to the sounder base by a locking pin at-
tached to the 5" Universle Base.
1.1 FC430SAM
The FC430SAM is suitable for wall or ceiling mounting as standard, but it has no in-
tegral LED or remote LED drive.
1.2 FC430SAB
The FC430SAB Sounder Addressable Beacon has a flashing beacon incorpo-
rated into the front with a red lens arrangement. It is designed for wall mounting ei-
ther on a sounder base or on a conventional base. When mounted 2 to 2.2m above
ground level the beacon provides a high uniform intensity wide angle light output.
The base orientation is not critical to the viewing of the SAB beacon.
FIG.2
ENGLISH
FC430SAB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FC430SAM and is the answer not in the manual?

Questions and answers

Summary of Contents for FireClass FC430SAM

  • Page 1 1.1 FC430SAM L'art. FC430SAM è adatto per l'installazione a muro o a parete, ma non dispone The FC430SAM is suitable for wall or ceiling mounting as standard, but it has no in- del LED integrato e del comando LED a distanza.
  • Page 2 3.1 GENERALI The FC430SAM modules utilise the existing FC detector body moulding with a I moduli FC430SAM utilizzano il corpo dell'attuale rilevatore FC adeguato con un PCB simi- similar PCB and PCB mounting arrangement utilising the same detector termi- lare e assemblato utilizzando gli stessi terminali del rilevatore, sulla superficie il PCB monta nals and surface mount PCB contact clips as the FC Digital detectors.
  • Page 3 è ordinabile separatamente dagli art. 128 - 255, with a different colour for each loop) and are ordered separately from the FC430SAM/FC430SAB. The address flag is fitted to the bottom of the FC430SAM/FC430SAB. La linguetta indirizzo è in dotazione con la parte inferiore degli art.
  • Page 4 RETAINING DEPRESSIONS Inserimento della linguetta Indirizzo FIG.6 Fitting Address Label Carrier INFORMAZIONI PER L'ORDINE ORDERING INFORMATION FC430SAM Modulo avvisatore acustico indirizzabile FC430SAM Sounder Address Module. FC430SAB Avvisatore ottico-acustico indirizzabile FC430SAB Sounder Address Beacon. 10. INFORMAZIONI SUL RICICLAGGIO 10. RECYCLING INFORMATION...
