FireClass FC440SB Manual


Visual Indicator Sounder Beacon Series
Summary of the range
ummary of the range 
Product Details
Base variant

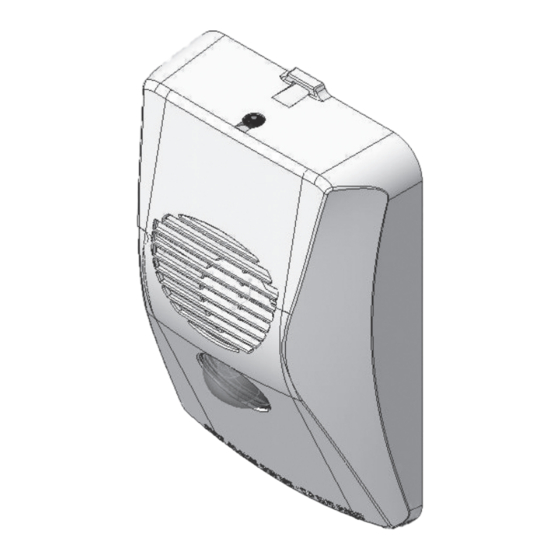

FC440SB Addressable Base Sounder
FC440AIB Addressable Base Sounder Beacon VID
Wall variant
FC440SW Addressable Wall Sounder White Housing
FC440SR Addressable Wall Sounder Red Housing
FC445SR Addressable Wall Sounder - Weatherproof
FC440AIW Addressable Wall Sounder Beacon VID White Housing
FC440AIR Addressable Wall Sounder Beacon VID Red Housing
FC445AIR Addressable Wall Sounder Beacon VID Weatherproof
Accessories
B-CAP Blanking cap for Sounder, VID, and VAD bases
A-CON Conduit Adaptor for Sounder, VID and VAD bases
S-BOXR Shallow Surface Back Box for Indoor Wall Sounder/VID/VAD Red
S-BOXW Shallow Surface Back Box for Indoor Wall Sounder/VID /VAD White
A-BOX Flush Back Box for Wall Sounder/VAD/VID
D-BOXR Deep Surface Back Box for Indoor Wall Sounder/VAD/VID Red
D-BOXW Deep Surface Back Box for Indoor Wall Sounder/VAD/VID White
Performance characteristics
Mounting orientation
Indoor type A/Outdoor type B
Weight (g)
Housing material
Housing colour
Operating temperature (°C)
Storage temperature (°C)
Humidity
Pressure
Sounder volume settings
EN54-17 isolator
EN54-3 sounder
Visual indicator
Vibration, shock, corrosion, EMC
Beacon flash rates
Ingress protection
High volume
Mid High volume
Mid Low volume
Low volume
Flash colour
Addressable loop voltage
1/8
FC440SB FC440AIB FC440SW
Ceiling
Indoor
146 154 182
PC-ABS PC
White Clear White
-25 to +70 -10 to 55
4
No Yes
- 0.5 and 1 Hz -
IP21C
Typical Sounder output at 1 metre
90 dBA
80 dBA
70 dBA
60 dBA*
Beacon performance
- Red -
Electrical characteristics
The Visual Indicating Device (VID) Sounder Beacons and Sounders are
loop powered units that are driven from an addressable controller
panel.They are available in ceiling and wall mounted variants, including an
outdoor wall version.
The ceiling mounted variants provide a base for fitting a fire detector. Alter-
natively, a blanking cap is fitted.
The beacons are not EN54-23 compliant and not suitable for applications
that require a VAD (Visual Alarm Device).
All VID Sounder Beacons and Sounders have a built-in two port loop short
circuit isolator.
Settings for tones, volume, beacon flash and status monitoring are
configurable using the control panel.
Selectable flash rates are:

1Hz (one flash every second)

0.5Hz (one flash every two seconds)
Order number
576.440.002
576.440.010
576.440.003
576.440.004
576.440.005
576.440.011
576.440.012
576.440.013
557.080.001
557.080.002
557.080.007
557.080.008
557.080.010
557.080.011
557.080.012
FC440SR FC445SR
Wall
Outdoor
182 358
PC-ABS
Red Red
-25 to +70
-25 to +70
Up to 95% non-condensing
Sounder SPL output quoted for 1000 mBar
Yes
Yes
No
Complies with EN54 series requirements
- -
IP55
100 dBA
90 dBA
20 V - 40 V, 35 V Typical
In scope/fitted
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
FC440AIW FC440AIR FC445AIR
Indoor Indoor Outdoor
194 194 372
White Red Red
-10 to 55 -25 to +70
2
Yes
0.5 and 1 Hz
IP21C IP55
-
-
Red
Doc. version 2.0
