FireClass 601SB Installation Instructions

MZX Fire detection system
601SB TYPE 'A' SOUNDER BASE - INSTALLATION INSTRUCTIONS
GREEN TEMPORARY PARK PLUNGER

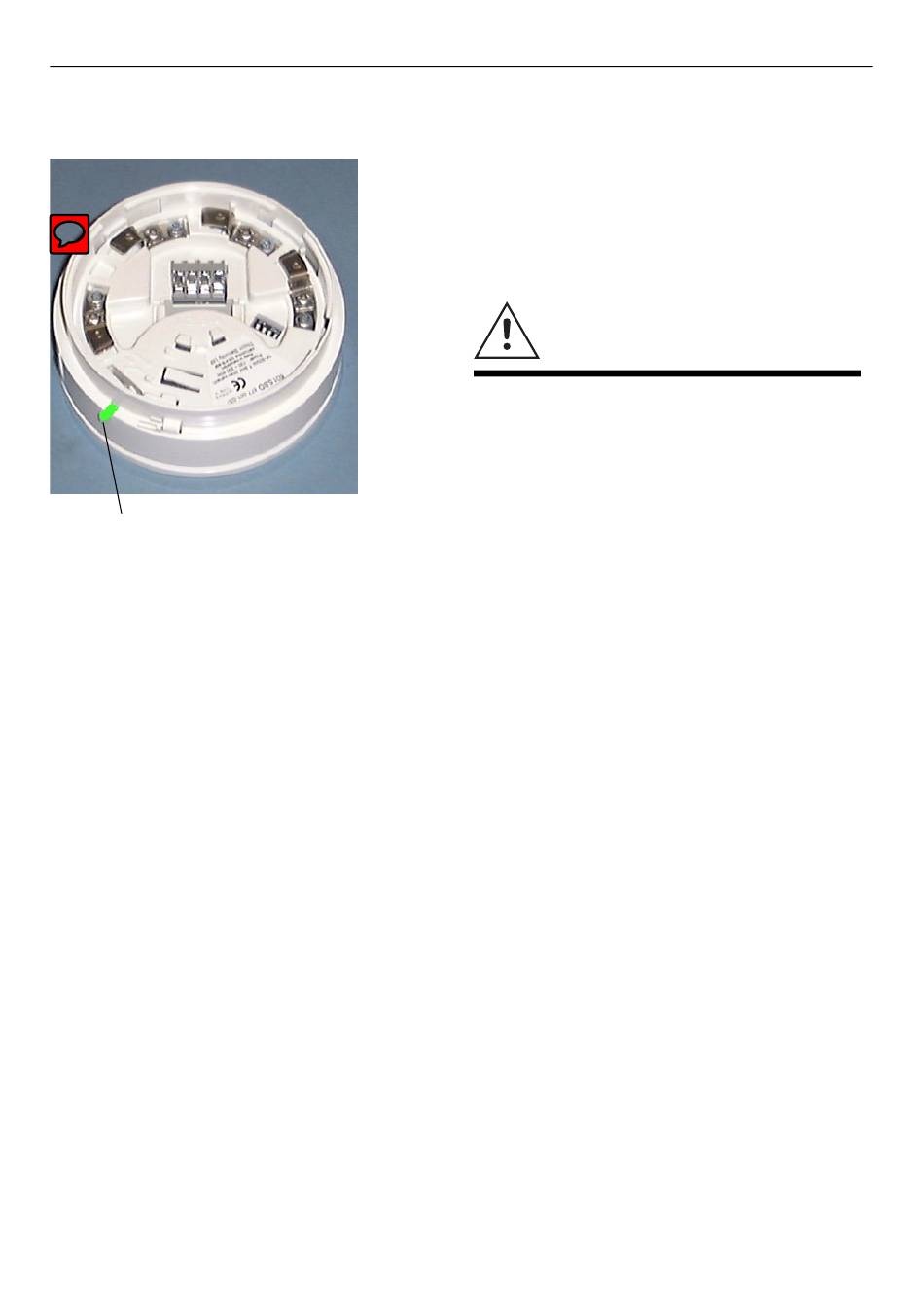

Fig. 1: 601SB Sounder Base
TECHNICAL SPECIFICATION
System Compatibility:
Environment:
Operating Temperature:
Storage Temperature:
Operating Humidity:
Dimensions:
Height:
Diameter:
Weight:
Mounting Requirements: Flat surface or electrical back
Installation Instructions Doc. version 5.0
www.acornfiresecurity.com
Primarily for use with
Conventional Fire Alarm
Controllers. When used with
MX/Minerva, the wiring will
require monitoring as the
sounder is independent of
the panel function, ie, not in
Bell Map.
Indoor Application only
o o
-25 to +70 C
o o
-40 to +80 C
Up to 95%
non-condensing
37.5mm
107.8mm
0.192kg
box with 50mm fixing centres
with the 4" flange.
www.acornfiresecurity.com
Wire Size:
Electrical Characteristics:
Sounder operating:
CAUTION
Ensure that site plan defines the
polarity of polarity conscious bases.
Electromagnetic Compatibility:
The 601SB complies with the following:
Product family standard EN50130-4 in respect of
Conducted Disturbances, Radiated Immunity,
Electrostatic Discharge, Fast Transients and Slow High
Energy.
EN50081-1 for emissions.
INTRODUCTION
The 601SB Sounder Base provides an additional
sounder function on conventional fire detection
circuits.
The 601SB Sounder Base operates inde-
pendently of the detector circuit and may be
used without an associated detector. When
used without a detector, a cap Part No.
557.001.040.A.T.Y must be fitted and if loop wir-
ing is required then the alternative wiring
method must be used.
FEATURES
The 601SB Sounder Base provides eight tone
and variable volume settings.
WIRING NOTES
The following notes apply:
1 All wiring must conform to the current edi-
tion of IEE Wiring Regulations and BS 5839
Part 1.
2 All wiring must be free of earths.
601SB
2
Min 1.5mm
2
Max 2.5mm
6.8mA at full volume (90dBA)
1.2mA at low volume (68dBA)
1/4
