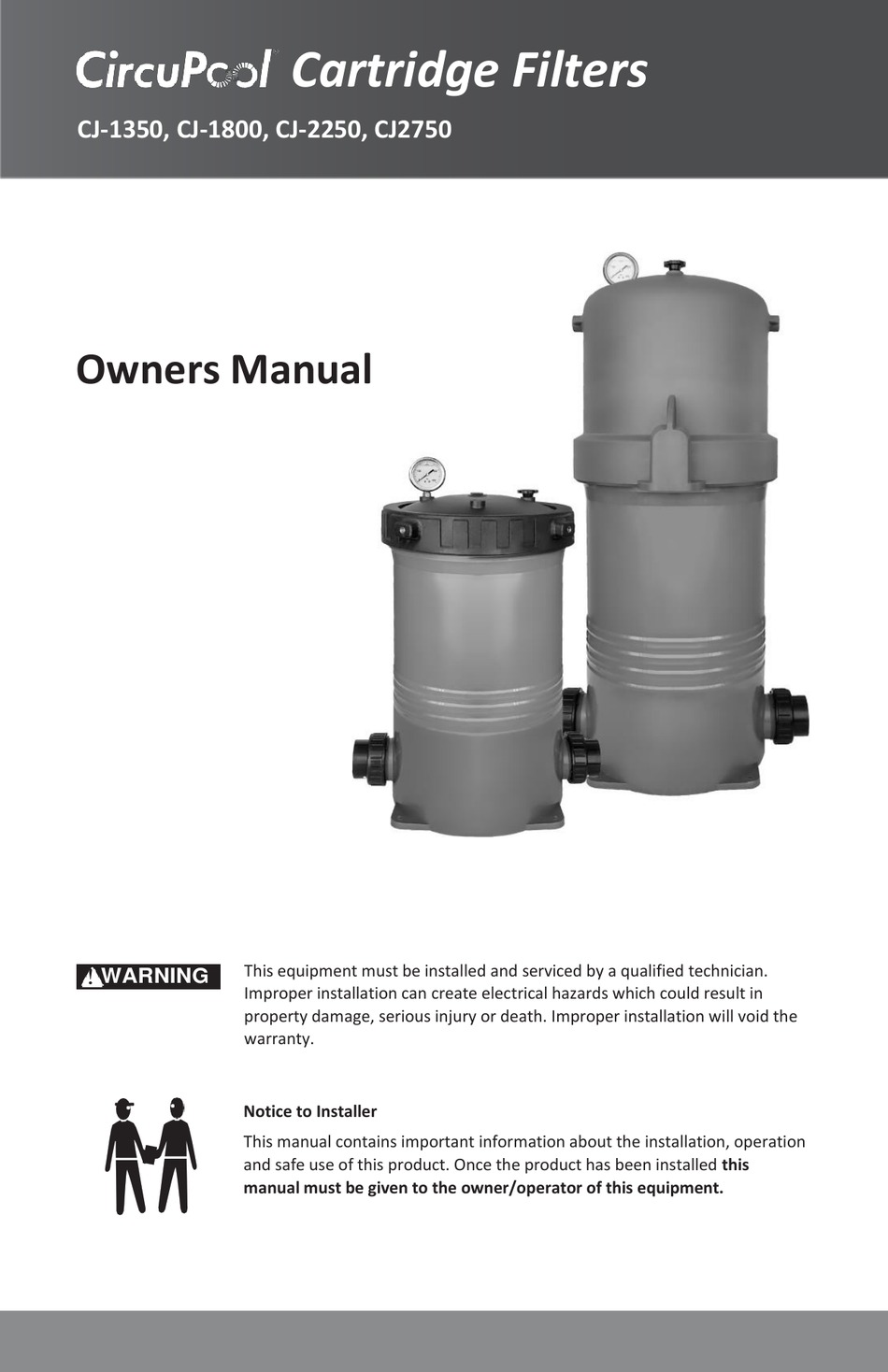

CJ-1350, CJ-1800, CJ-2250, CJ2750
Owners Manual
WARNING
Notice to Installer
This manual contains important information about the installation, operation
and safe use of this product. Once the product has been installed this
manual must be given to the owner/operator of this equipment.
Cartridge Filters
This equipment must be installed and serviced by a qualified technician.
Improper installation can create electrical hazards which could result in
property damage, serious injury or death. Improper installation will void the
warranty.
Advertisement
Table of Contents
Related Manuals for CircuPool CJ-1350
Summary of Contents for CircuPool CJ-1350
- Page 1 Cartridge Filters CJ-1350, CJ-1800, CJ-2250, CJ2750 Owners Manual This equipment must be installed and serviced by a qualified technician. WARNING Improper installation can create electrical hazards which could result in property damage, serious injury or death. Improper installation will void the warranty.
- Page 2 TABLE OF CONTENTS Introduction ------------------------------------------------------ 01 Installation ------------------------------------------------------- 01 Start Up Procedure -------------------------------------------- 02 Maintenance ---------------------------------------------------- 03 Cleaning ----------------------------------------------------------- 04 Flow Diagrams -------------------------------------------------- 04 Trouble Shooting Guide -------------------------------------- 05...
- Page 3 All CJ-Series Cartridge Filters are ideal for use in swimming pools and spas. CircuPool CJ-Series Cartridge Filters are also ideal for use when backwashing is impractical (when high water usage is restricted or is not economical, for example).
- Page 4 START UP PROCEDURE CJ-Series Cartridge Filters are a simple and effective unit which will provide years of trouble-free service if the following maintenance procedures are maintained. Starting the filtration system either from new or after cleaning is exactly the same. Make sure the cartridge(s) are in place and the lid is securely fastened 2.
- Page 5 MAINTENANCE To ensure that you get maximum life from your Cartridge Filter (and its internal cartridge element), you will need to maintain the filter regularly. When the filter is first started and has been purged of air, note the pressure on the pressure gauge. This is what is known as the filter operation pressure and it is important that you be aware of this figure.
- Page 6 CLEANING For 135 – 180 Sq. Ft Models: Remove the cartridge element from the filter tank. Using a garden type hose, clean the surface of the pleated elements. Make sure to clean well between the pleats. Place the cartridge back into the filter tank ensuring that it is seated correctly.
- Page 7 TROUBLESHOOTING GUIDE SYMPTOMS POSSIBLE PROBLEMS / SOLUTIONS Insufficient disinfectant level. Incorrect pool chemistry. Heavy bathing and/or dirt loads. Incorrect flow. Water is not clear Insufficient running times =. Increase pump run time. Filter is dirty. Clean per instructions. Hole in filter element. Check strainer baskets for debris.
- Page 8 Filter Type: Filtration Area: Cartridge 135 sq. ft. - 270 sq.ft Cartridge Diameter: Flow Rate: 10.2" up to 134 gpm Working Pressure: Maximum Pressure Drop: up to 50.8 psi 2.9 psi...
